PAL 800TVL - 600 700 800TVL CMOS kamera FPV RC Quadcopter Otthoni biztonság Kém kamera kamera NTSC

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
600 700 800TVL CMOS Camera FPV RC Quadcopter Home Security Spy Cam Camera NTSC600TVL
Description : - Resolution: 1280 * 960
- Resolution: 600TVL
- Camera Dimensions: 12.5mm * 12.5mm * 17mm
- Illumination: 0.5LUX
- Format: NTSC
- Power supply range: 3.7-5V 100mA
- Audio Lens: Wide-angle 1.8mm (170 degree)
- Image sensor:1/4 CMOS image sensor
- Sensitive area: 3.5964mm x 2.7084mm
- 648 pixels (horizontal) X 488 (vertical) 648 (horizontal) X 488 (vertical)
- Scanning Frequency Horizontal: 15.625KHz
- Vertical: 50Hz
- level: 15.7343KHz
- Vertical: 60Hz
- Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
- SNR ≥48dB (AGC OFF)
- Minimum illumination : 0.1 Lux / F1.2
- Composite video signal :1.0Vp-p 75Ω
- Standard Lens :1.8 mm
- Specifications PCB: 20mm*20mm
- Power: DC5V ± 10% 70mA ± 10%
- Operating temperature :-10 ℃ ~ 60 ℃ RH95% MaxPackage Included: 1 x 600TVL Wide Angle Lens Camera
700TVL
Features
Enable aerial photography even for small wheelbase multicopter
ensuring high quality FPV effect
700VL Super Camera Lens
Perfect for those QAV250 or 250size Quadcopter and RC Plane
Specifications:
type: CMOS
Pixel: PAL:1020Hx596V
Effective Pixel: PAL: 976H X 582V
Signal format: PAL
Resolution:700TVL
Min lumen: 0.05LUX/F2.0
SNR: More than 48dB
Video out put:1.0Vp-p/75ohm
AGC (automatic gain control) :0.25/0.50/0.75/1.00 adjustable,max up to 55db
HLC High light compensation
White balance method:open/close
Electronic Shutter: 1/50(1/60) - 1/100000 second
Gamma correction: 0.45/1.0
Lens: 2.8 mm lens
Voltage: DC12V -5%
Working current: 70MA
Working temperature: -20C-60CPackage included:
1PCS FPV CCD Camera Mini Camera 700TVL 2.8 mm For RC Quadcopter aircraftNTSC/PAL 800TVL Features:

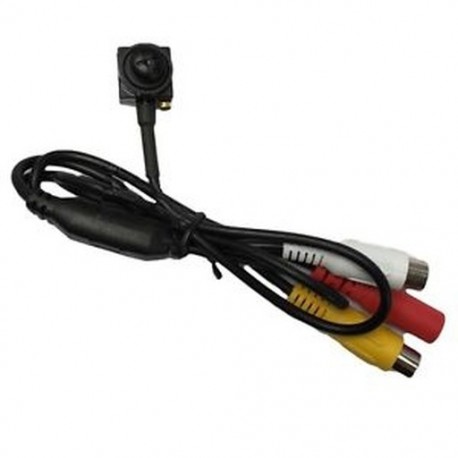

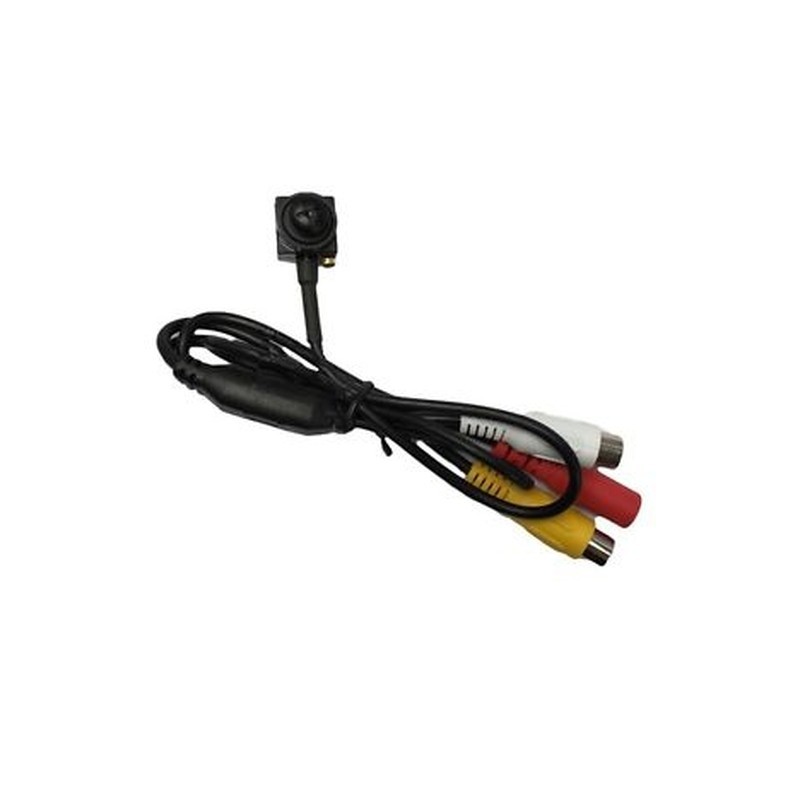

It’s an ultra small, high definition CCTV camera.NTSC/PAL TV system
Built-in sensitive microphone
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm. Specifications:
PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC ; PAL
NUMBER OF PIXEL NTSC656（H） X 492（V）; PAL786（H） X 576（V）
IMAGE SIGNAL PROCESS Digital Signal Processing System
HORIZONTAL RESOLUTION Approximately 800 TV Lines
SCANNING SYSTEM 21 Interlace
LENS & VIEW ANGLE 0.5mm F2.0 /55 °
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT （1/60 S TO 1/100000 S）; OUT （1/50 S TO 1/100000）S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
AUDIO OUT 1.0V p-p/1Kohm
WORK CURRENT 70mA
POWER REQUIREMENT DC 12V
OPERATING TEMPERATURE - 10° C ~ 50°C ，less than 90% RH
Connection Red - DC12V , Yellow - VIDEO OUT, White - AUDIO OUT
Package Included : 1 x Mini NTSC/PAL 800 TVL CMOS camera（Accordi
