Lila - LM2662 Kapcsolt kondenzátor negatív feszültség átalakító 5V / -5V 200mA lila / zöld

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

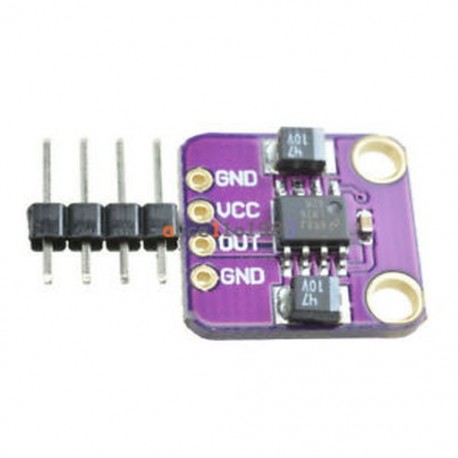

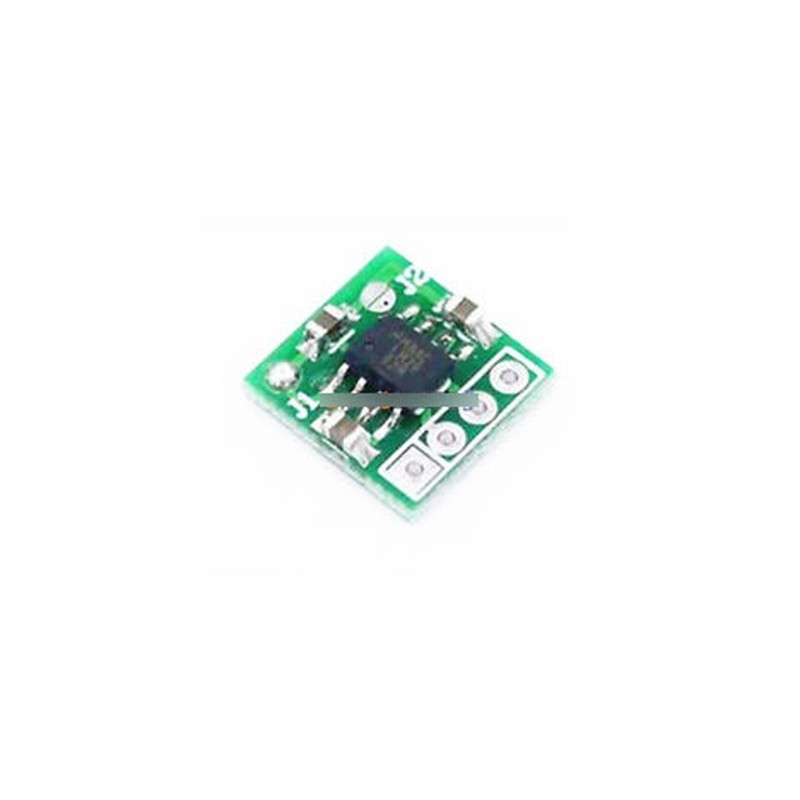

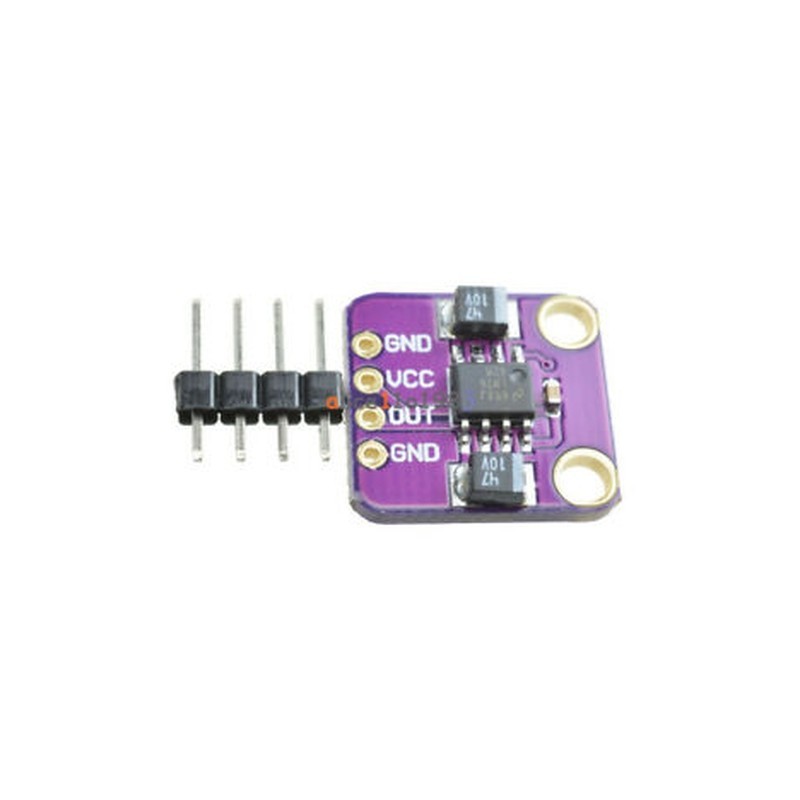

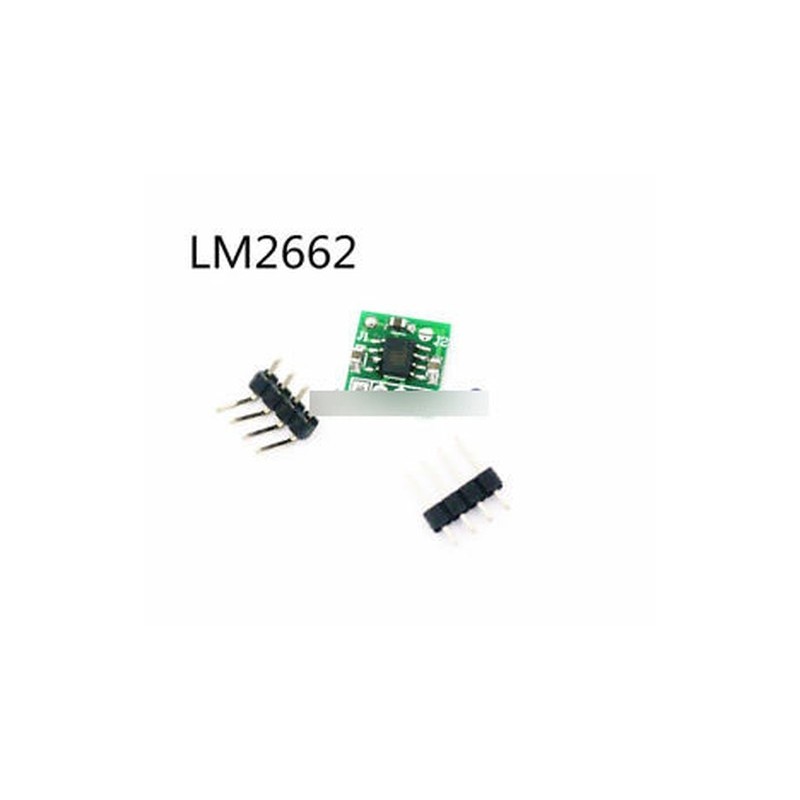

LM2662 Switched Capacitor Negative Voltage Converter 5V/-5V 200mA Purple/GreenGreen
Description:Input Voltage Range : 1.5V ~ 5.5VOutput Voltage Range : -1.5V ~ -5.5VStatic Standby Current : 10uAOutput Current Limit: 200mASwitching Frequency: 20KHz /150KHzPackage Include: 1 x LM2662 Switched Capacitor Positive to Negative Voltage Converter Module 200mA
Purple
polarity inversion module, for the same positive voltage into a negative voltage. To provide for the op amp negative supply and negative reference.
Enter a positive voltage, a negative voltage output. How much input voltage output voltage is how much.Module Features:
1. Maximum current 200mA, enough to supply the op amp negative supply, negative reference and other needs.
2. The charge pump circuit is simple, small size, low ripple 15mv !!!
3. The maximum efficiency of 99% . Precautions:
1. The charge pump output resistance is non-regulated, as the output current increases, the voltage will gradually decline, this is a normal phenomenon, be sure to know!
2. Do not reverse the polarity of the input and output, as this may damage the module!
3. Input voltage should not exceed the limit. LM2662 model maximum 5.5V, otherwise burn out!Module Selection:
LM2662 Model: Theory current 200mA, the actual maximum output current up to 400mA, the input voltage 1.5-5.5V. With frequency selection and low input selection.
The charge pump type polarity reversal module adapted to generate a negative voltage reference, the op amp negative power supply and other low current applications.Pin definition:
V : Positive voltage input;
V-: Negative voltage output terminal;
GND: power ground.
FC sign: LM2662 frequency selection terminal, short circuit 150KHZ, disconnect 20KHZ (ICL7660 invalid), it is strongly recommended that short FC, ultra-low ripple.
LV logo: Low selection terminal, the input voltage is less than 3.5V short circuit, can improve output performance.
Refer to the main wiring diagram, the oscillation frequency can modify LM2662 targeted to reduce interference to the circuit!
Package Include:1 x LM2662 Switched Capacitor Negative Voltage Converte
