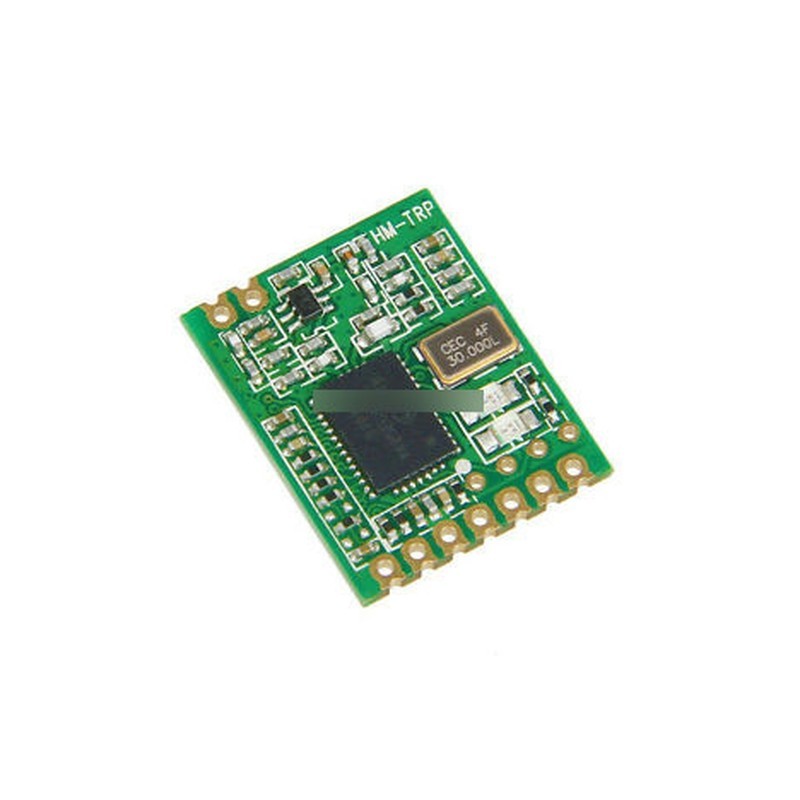

HM-TRP vezeték nélküli adó-vevő 433Mhz 915Mhz FSK UART könnyű szereléshez

HM-TRP Wireless Transceiver 433Mhz 915Mhz FSK UART Easy For Assembly
Description:HopeRF HM-TRP Transceiver Module - 915MhzProduct Overview:
HM-TRP series is a low cost, high performance transparent FSK transceiver which operates at 433/470/868/915 MHz. It features small size, high output power, high sensitivity, long transmission distance, and high communication data rate with auto set up for communication change and data transmit/receive control. It features a UART interface--making it is easy and flexible for users to set UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth, and other parameters. It is an ideal choice for designing wireless data transmission products which can be widely used and easy to program and interface.Features:Low cost, high performance , high reliability, easy to use
FSK modulation, 2-way half-duplex communication
915MHz ISM band globally license free.
Maximal output power100mW(20dBm)
output power adjustable between 1-20dBm
Sensitivity -117dBm
Supply current for Tx 100mA@20dBm, 40mA@14dBm
Supply current for Rx 25mA
Low current sleep mode 1uA
Standard TTL UART interface, extendable to RS232 or other interface
Configurable Operation frequency.
Communication speed 1.2kbps -115.2kbps, Software programmable
RSSI function
Excellent Range: > 1-km in open air
Small size 16 x 20 x 2mm, 9 PIN DIP & 9 PIN SMD package, easy for assembly .
Conforms to FCC,ETSI standardsPackage:1 X HM-TRP Wireless Transceiver 433Mhz 915Mhz FSK U
