Elementary UNO R3 Starter Kit for Arduino 1602 LCD Servo Motor LED InfraredAbout This Kit
Including new Infiduino Uno R3. It has the following virtues Completely compatible with Arduino Uno R3(with Atmega16U2 as the high speed USB chip, not some kind of cheap USB converters that is easy to be broken).
3.3V/5V selectable working voltage, there are many 3.3V and 5V modules in Arduino world. With the Infiduino Uno R3, you can use your 3.3V and 5V modules easily, no need to use Logical Level Converter, simple for circuit and pratice.
Good current performance(1000mA current for 3.3V and 5V output).
"Reset" LED added. When you reset the board, the "Reset" LED will show if the "reset" action has been done successfully.
Short-circuit protection. Even if your circuit is short-circuited, the board will protect itself. Most cheap boards don't have such function, if they are short-circuited carelessly, then it will smoke.Including new Arduino Extension board and the GPIO extension board. These two boards plus the bread board can work together and make it easier for you to make your project.Learning Lessons
We provide the following lessons for now. More lessons will be added in the future.Welcome to Arduino
lED Blink
Rolling Light
Button Controlled LED
PWM fading
RGB LED various color display
Buzzer Warning
Tilt Switch
Potentiometer Analog Reading
Light controlled lamps
Remote controlled lamps
1 Digital 8-Segment LED Display
4 Digital 8-Segment LED Display Dynamic Scanning Display
8*8 Dot Matrix LED Display
Infrared Sender
Infrared Receiver
1602LCD
Temperature Measurement
Fire Alarm
Stepper motor driving
PWM servo control
Interactive Motor
Electronic Clock
Alarm clock
Infrared Remote Controlled Stepper

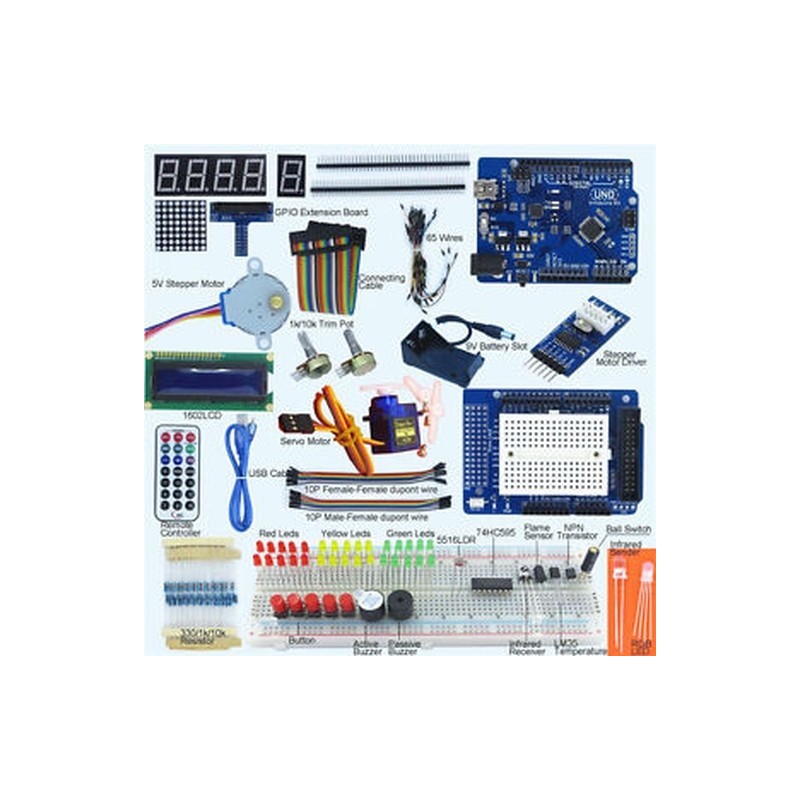

74HC595 IO expansionPart List
1 x Infiduino Uno R3 Mainboard 1 x USB cable(0.5m length)
1 x Infiduino Extension baord 1 x GPIO Extension Board 1 x Connecting Cable
1 x Big Breadboard(830 points)
1 x Mini Breadboard
10 x 3mm Red LEDs
10 x 3mm Green LEDs
10 x 3mm Yellow LEDs
1 x 5mm RGB LED
5 x Button with Cap
20 x 330 ohm color ring resistor
20 x 1k ohm color ring resistor
20 x 10k ohm color ring resistor
1 x 1K Adjustable Trim pot resistor(Potentiometer)
1 x 10K Adjustable Trim pot resistor(Potentiometer)
1 x 2.54mm Elbow 40 Pin Header
1 x 2.54mm Straight 40 Pin Header
1 x 5516 Light Dependent ResistorďĽPhotoresistor)
1 x Ball switch
1 x Active Buzzer 5V
1 x Passive Buzzer 5V
1 x 74HC595 8bit Shift Register
1 x LM35 Temperature Sensor
1 x SS8050 NPN Transistor
1 x Infrared Receiver(type 1838)
1 x Infrared Sender
1 x Infrared Phototransistor(Flame Sensor)
1 x Infrared Remote controller(Battery Not Included)
1 x Stepper Motor(5V)
1 x SG90 Servo motor
1 x 1602 LCD
1 x 1-Digit Eight-segment Display
1 x 4-Digit Eight-segment Display
1 x 8*8 Dot Matrix Led Display
1 x Stepper Motor Driver Board
65 x Jump Wires
10 x Female-Female Dupont wires
10 x Male-Female Dupont wires
1 x 9V Battery Holder(9V Battery not included)
1 x Plastic storage boxPayment
