CH340G ATmega328P Nano V3.0 Micro USB 16MHz-es vezérlőkártya Arduino-hoz

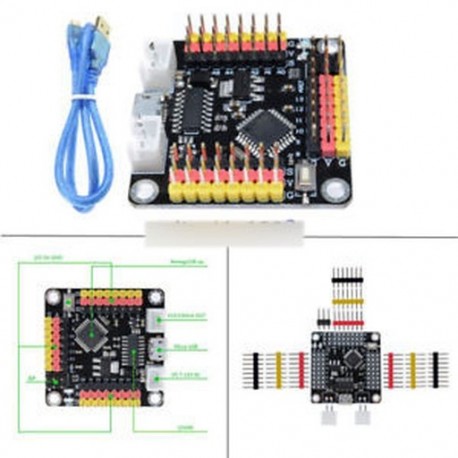

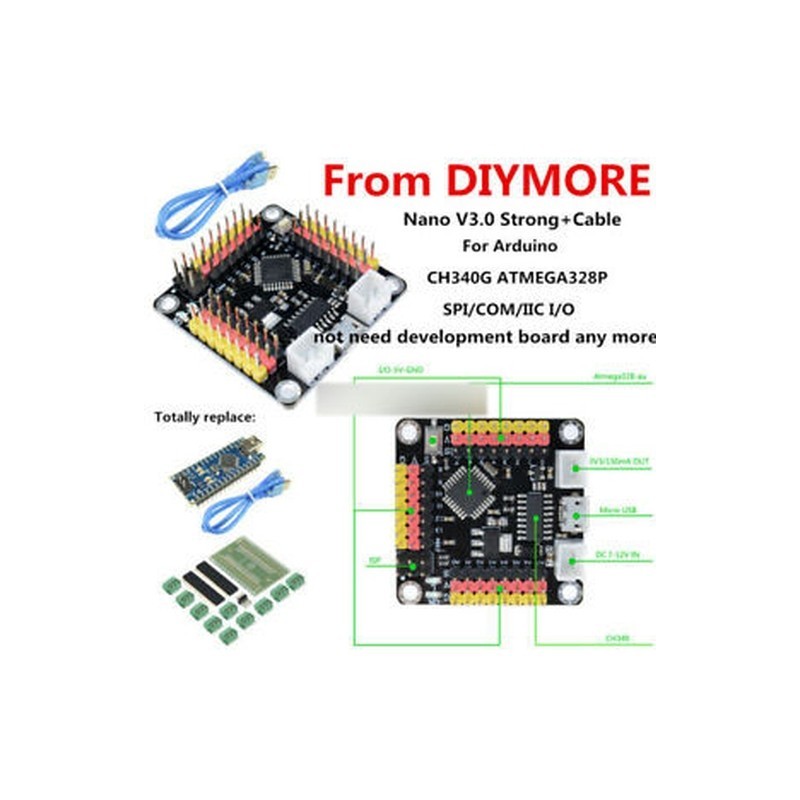

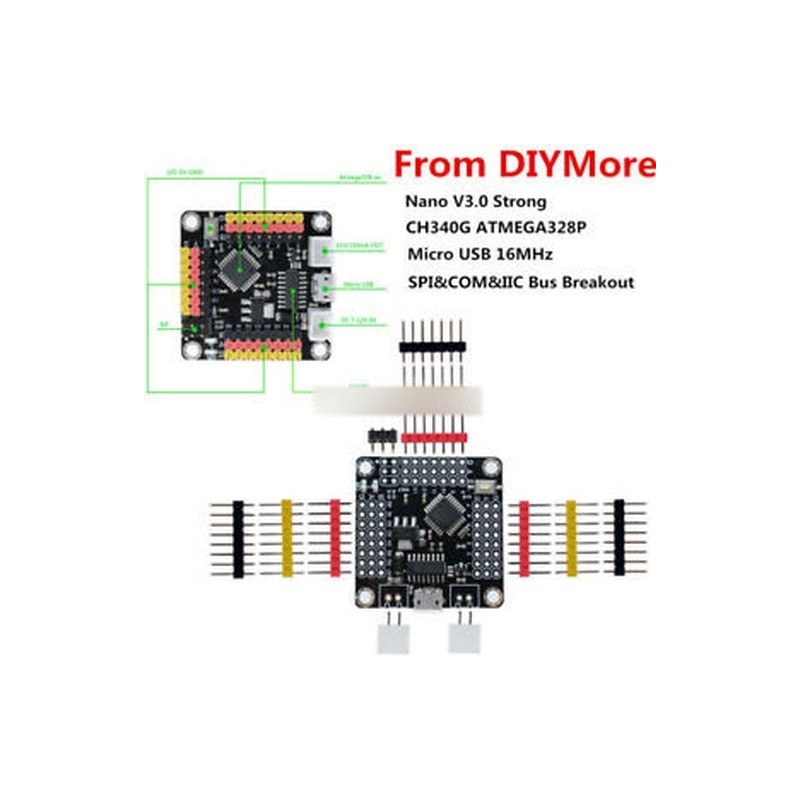

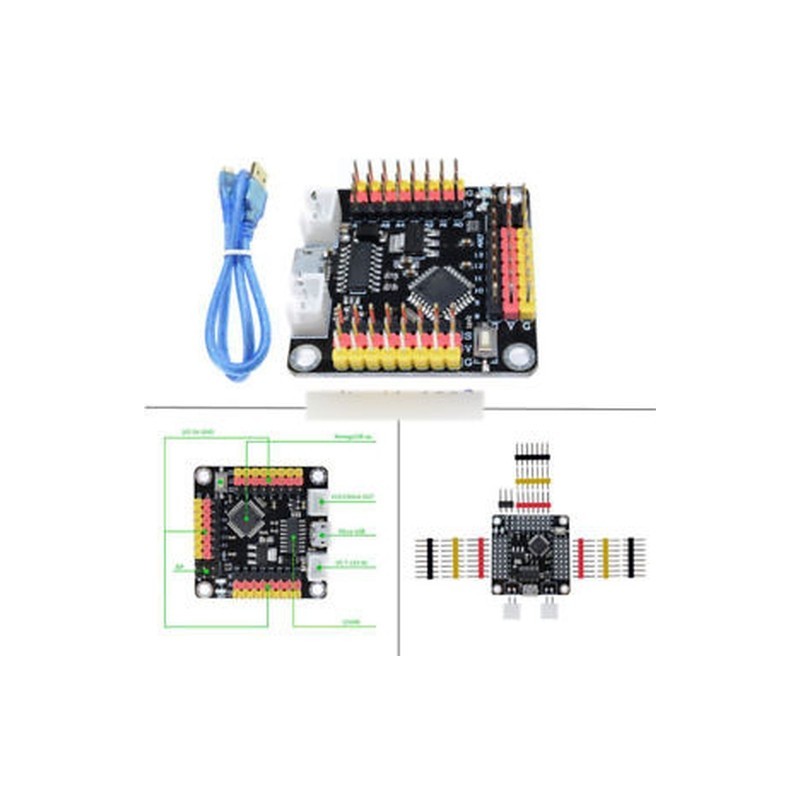

CH340G ATmega328P Nano V3.0 Micro USB 16Mhz Controller Driver Board For ArduinoDescription:The NANO strong is an Arduino compatible board. It is based on Arduino NANO V3.0 design. Some visible improvement on hardware make more flexible and easier to use. SPI, COM and IIC bus breakout make bus connect easier. The NANO strong is a microcontroller board based on the ATmega328. It has 14 digital input / output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or battery to get started.
The NANO strong has an increased pin header spacing of 2.54mm and leads to all I / Os and VCC / GND. We can conveniently connect various modules via DuPont wire, and our engineers love to use it for some applications.
Arduino is an open-source physical computing platform based on a simple i / o board and a development environment that implements the Processing / Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer ( eg Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).Package included:1*CH340G Micro USB Nano V3.0 ATmega328P 16Mhz Micro-Controller Board For Arduino
1*Micro USB Cable
