915Mhz - HM-TRP vezeték nélküli adó-vevő 433Mhz 915Mhz / 868MHZ az UART RS232 távirányítóhoz

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

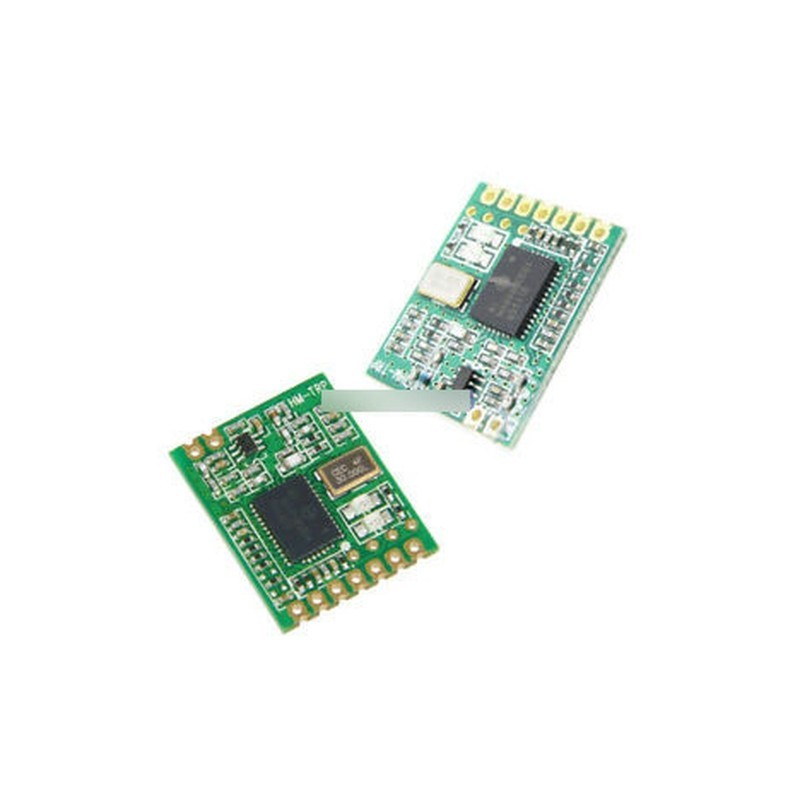

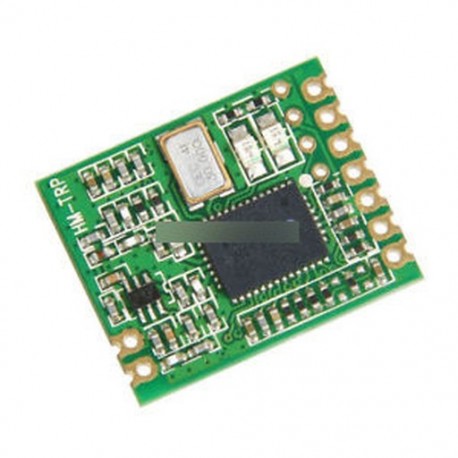

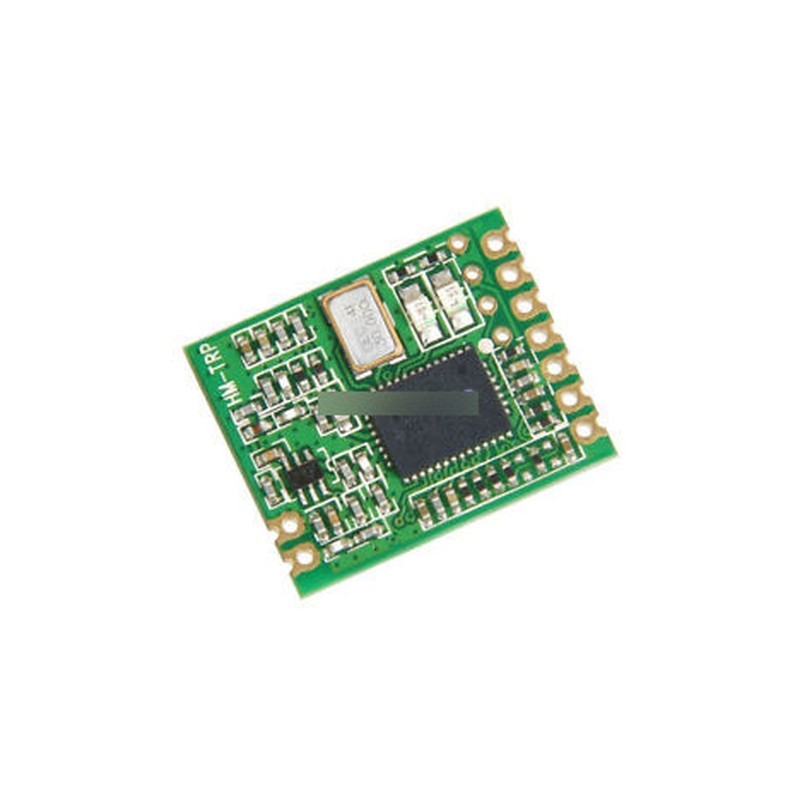

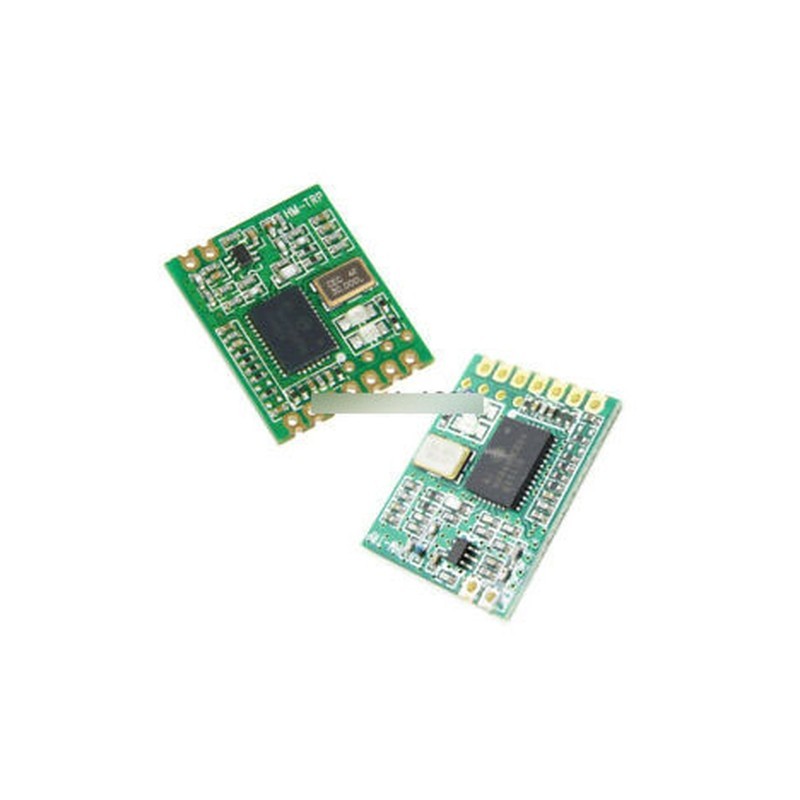

HM-TRP Wireless Transceiver 433Mhz 915Mhz/868MHZ for UART RS232 Remote Control
Description: HM-TRP Transceiver Module - 868Mhz or 915Mhz Product Overview:
HM-TRP series is a low cost, high performance transparent FSK transceiver which operates at 433/470/868/915 MHz. It features small size, high output power, high sensitivity, long transmission distance, and high communication data rate with auto set up for communication change and data transmit/receive control. It features a UART interface--making it is easy and flexible for users to set UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth, and other parameters. It is an ideal choice for designing wireless data transmission products which can be widely used and easy to program and interface. Features: Low cost, high performance , high reliability, easy to use.
FSK modulation, 2-way half-duplex communication
868MHz/915Mhz ISM band globally license free.
Maximal output power100mW(20dBm)
output power adjustable between 1-20dBm
Sensitivity -117dBm
Supply current for Tx 100mA@20dBm, 40mA@14dBm
Supply current for Rx 25mA
Low current sleep mode 1uA
Standard TTL UART interface, extendable to RS232 or other interface
Configurable Operation frequency.
Communication speed 1.2kbps -115.2kbps, Software programmable
RSSI function
Excellent Range: > 1-km in open air
Small size 16 x 20 x 2mm, 9 PIN DIP & 9 PIN SMD package, easy for assembly .
Conforms to FCC,ETSI standards Package Include 1 X HM-TRP Wireless Transceiver 868Mhz/9145Mhz (d
