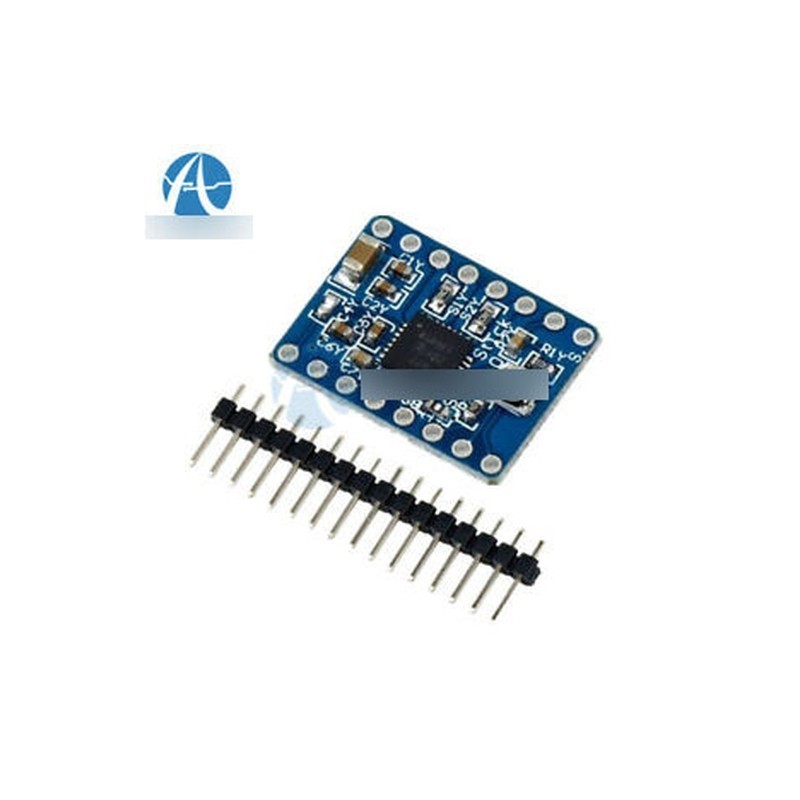

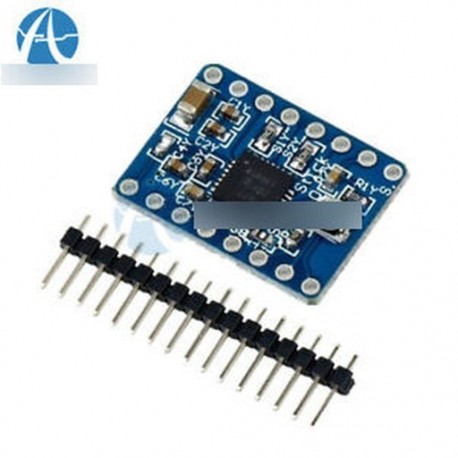

5PCS StepStick Stepper motorvezérlő A4988 3D nyomtató meghajtó modul Reprap Prus

200941256658

Új termék

5PCS StepStick Stepper motor driver A4988 3D Printer driver module Reprap PrusThe use chip: original A4988 chipBrief introductionA4988 is a complete microstepping motor driver with built-in translator for easy operation. The product can be full, half, 1/4, 1/8 and 1/16 step mode to operate bipolar stepper motor output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator can slow or mixed decay mode. The converter is the key to the easy implementation of the A4988. In inputting one pulse on the STEP input drives the motor one microstep. No phase sequence tables, high frequency control lines, or complex interfaces to programming. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened.Micro-step operation, the chopping control in the A4988 automatically selects the current decay mode (Slow or Mixed). In the mixed decay mode, the device is initially set to fast decay in the part of the fixed off-time, then a slow decay in the rest of the downtime. Mixed-decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry to improve the pulse-width modulation (PWM) power consumption when operating. Internal circuit protection includes: thermal shutdown with hysteresis, undervoltage lockout (UVLO) and crossover current protection. Special power-Sort.A4988 surface mount QFN package (ES), the size of 5 mm X 5 mm nominal overall package height of 0.90 mm, and with exposed pad for enhanced thermal dissipation. The package is Pb (suffixes-T), with 100% matte tin leadframe plating.
Features and BenefitsLow RDS (ON) outputs
Automatic current decay mode detection / selection
Mixed with slow current decay modes
Synchronous rectification for low power dissipation
Internal UVLO
Crossover-current protection
3.3 and 5 V compatible logic supply
Thermal shutdown circuitry
Ground Fault Circuit
Load short-circuit protection
Of five optional step mode: full, 1/2, 1/4, 1/8 and 1/16 Package Included:
5 x StepStick Stepper motor driver A4988 3D Printer driver module Reprap Prus

Bővebb leírás

621 Ft‎

-69%

2 002 Ft‎

Hozzáadás a kívánságlistához

Egyéb infó

5PCS StepStick Stepper motor driver A4988 3D Printer driver module Reprap PrusThe use chip: original A4988 chipBrief introductionA4988 is a complete microstepping motor driver with built-in translator for easy operation. The product can be full, half, 1/4, 1/8 and 1/16 step mode to operate bipolar stepper motor output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator can slow or mixed decay mode. The converter is the key to the easy implementation of the A4988. In inputting one pulse on the STEP input drives the motor one microstep. No phase sequence tables, high frequency control lines, or complex interfaces to programming. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened.Micro-step operation, the chopping control in the A4988 automatically selects the current decay mode (Slow or Mixed). In the mixed decay mode, the device is initially set to fast decay in the part of the fixed off-time, then a slow decay in the rest of the downtime. Mixed-decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry to improve the pulse-width modulation (PWM) power consumption when operating. Internal circuit protection includes: thermal shutdown with hysteresis, undervoltage lockout (UVLO) and crossover current protection. Special power-Sort.A4988 surface mount QFN package (ES), the size of 5 mm X 5 mm nominal overall package height of 0.90 mm, and with exposed pad for enhanced thermal dissipation. The package is Pb (suffixes-T), with 100% matte tin leadframe plating.
Features and BenefitsLow RDS (ON) outputs
Automatic current decay mode detection / selection
Mixed with slow current decay modes
Synchronous rectification for low power dissipation
Internal UVLO
Crossover-current protection
3.3 and 5 V compatible logic supply
Thermal shutdown circuitry
Ground Fault Circuit
Load short-circuit protection
Of five optional step mode: full, 1/2, 1/4, 1/8 and 1/16 Package Included:
5 x StepStick Stepper motor driver A4988 3D Printer driver module Reprap Prus
