1,77 hüvelykes 1,8 hüvelykes TFT LCD modul LCD képernyő SPI soros 51 illesztőprogramok 4 IO meghajtó TFT felbontás 128

1,77 hüvelykes 1,8 hüvelykes TFT LCD modul LCD képernyő SPI soros 51 illesztőprogramok 4 IO meghajtó TFT felbontás 128 * 160 1,8 hüvelykes TFT interfész
1.77 1.8 inch TFT LCD Module LCD Screen SPI serial 51 drivers 4 IO driver TFT Resolution 128*160 1.8 inch TFT interface

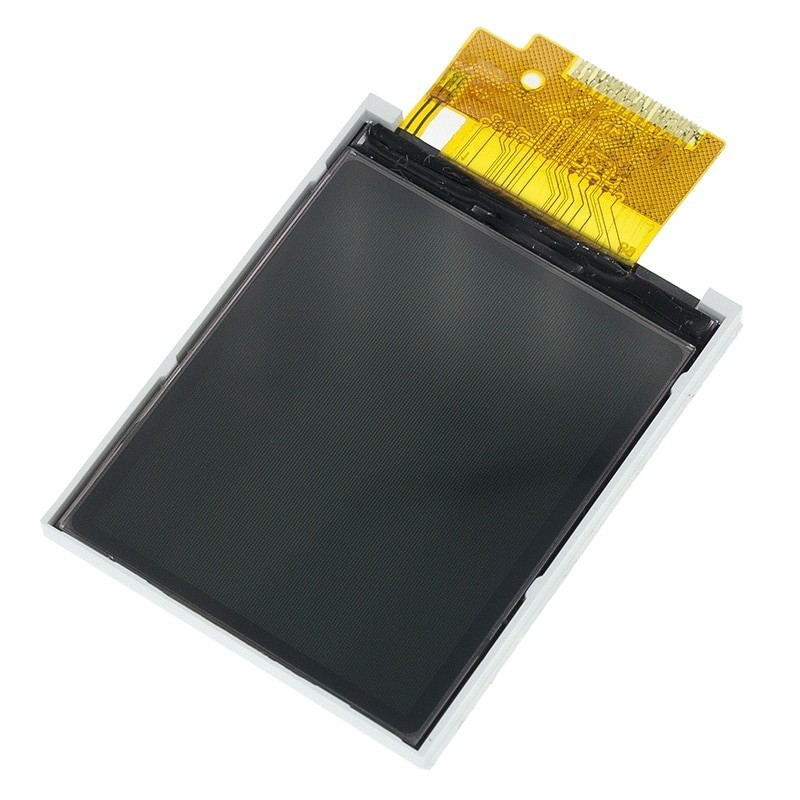

LCD display:

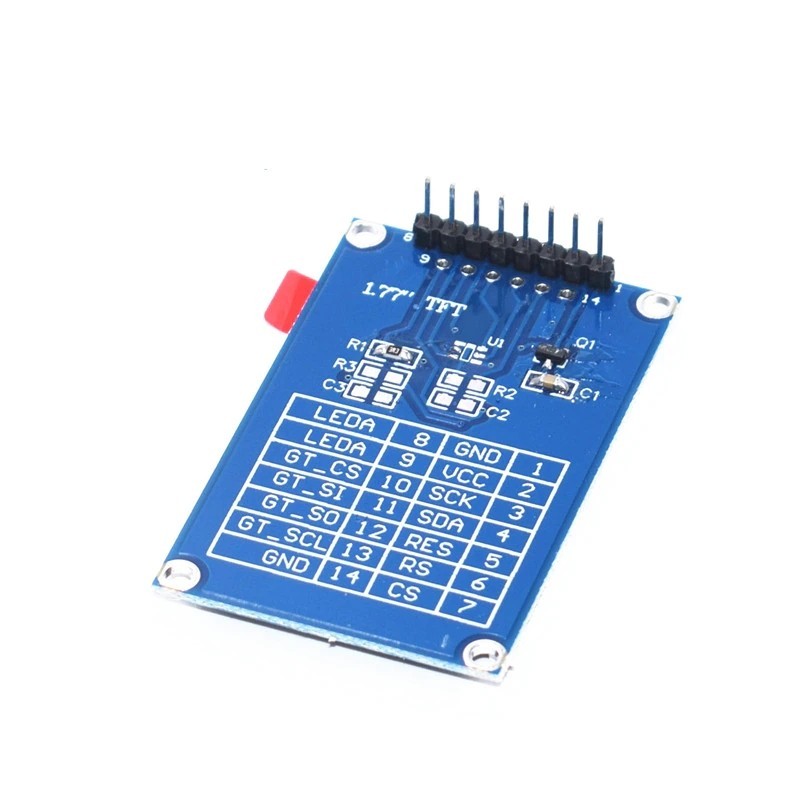

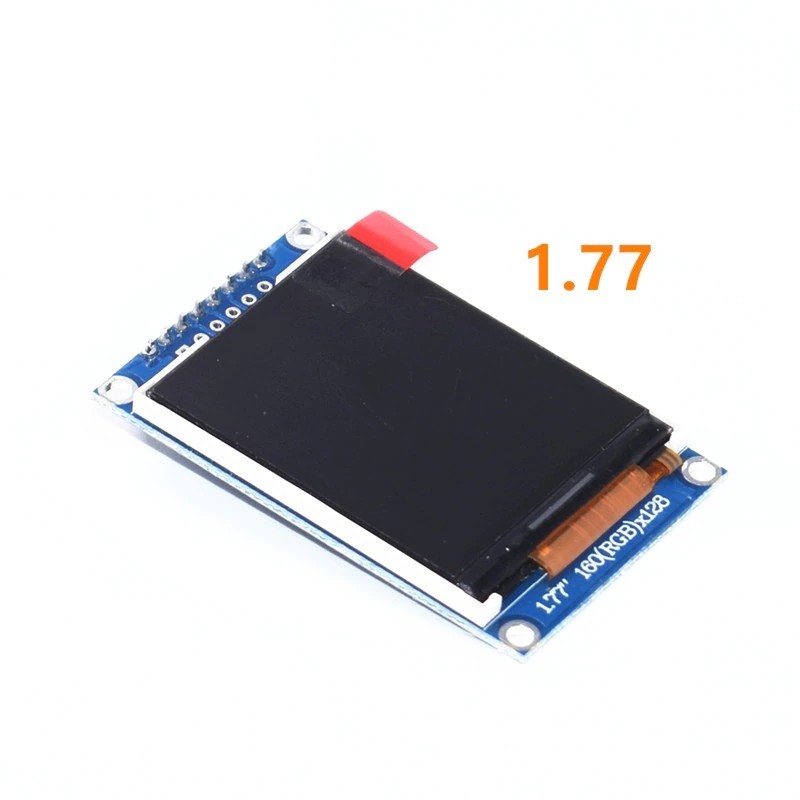

1.77 inchTFT LCD module:

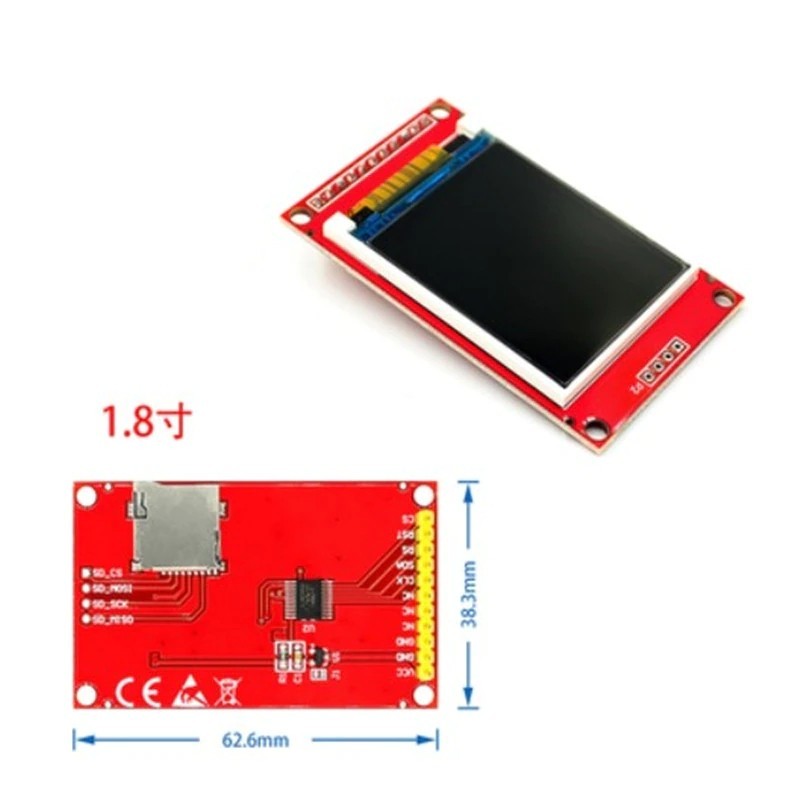

1.8 inch TFT LCD module:
1.8-inch SPI serial port 128*160 Instructions
/*
Program default IO connection method:
sbit LCD_CS =P0^0; //chip select
sbit LCD_AO =P0^2; //data/command switch
sbit LCD_SDA =P1^5; // Data
sbit LCD_SCK =P1^7; //clock
sbit LCD_REST =P0^1; //reset
*/
●TFT power supply: screen power supply is 2.8-3.3V; remember not to use 5V
(modules with PCB have inherited 3V regulator IC , 5V can be input)
●Backlight power supply (LED pin): The maximum backlight power supply is 3.2V.
(5 ohm current limiting resistor can be connected in series under 3.3V power supply or 25 ohm resistor in series under 5V).
