10PCS HC-SR505 Mini érzékelő modul testérzékelő üzemmód mini test érzékelő kapcsoló ÚJ

10PCS HC-SR505 Mini érzékelő modul testérzékelő üzemmód mini test érzékelő kapcsoló ÚJ

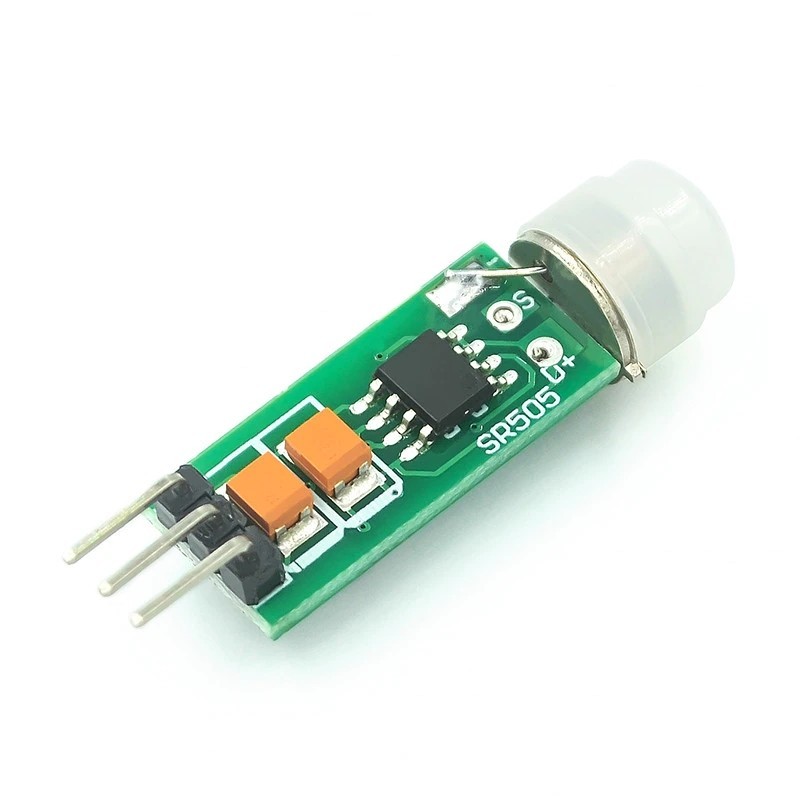

10PCS HC-SR505 Mini sensing module body sensing mode mini-body sensor switch NEW
echnical parameters:
Operating Voltage Range: DC4.5-20V
Static current: <60uA
Output level: High 3.3V / Low 0V
Trigger: repeatable trigger (default)
Delay time: Default 8S -30% (can be customized range of a few tenths - tens of minutes)
PCB Dimensions: 10 * 23mm
Induction angle: <100 degree cone angle
Induction distance: 3 meters
Working temperature: -20 - 80 degrees
Sensor Lens Dimensions: Diameter: 10mm (default)
Features:
Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.
Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay lOW (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).
Wide operating voltage range: the default operating voltage DC4.5V-20V.
Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.
Output high signal: easy docking and all kinds of circuits.
Applications:
Body induction lamps
Body sensors toys
Security Products
Industrial automation and control
Auto-sensing of electrical equipment
Battery-powered automatic control
