3X (Esp32 kamera modul fejlesztő kártya Ov2640 kamera Sma Wifi 3Dbi Antenn K8S1

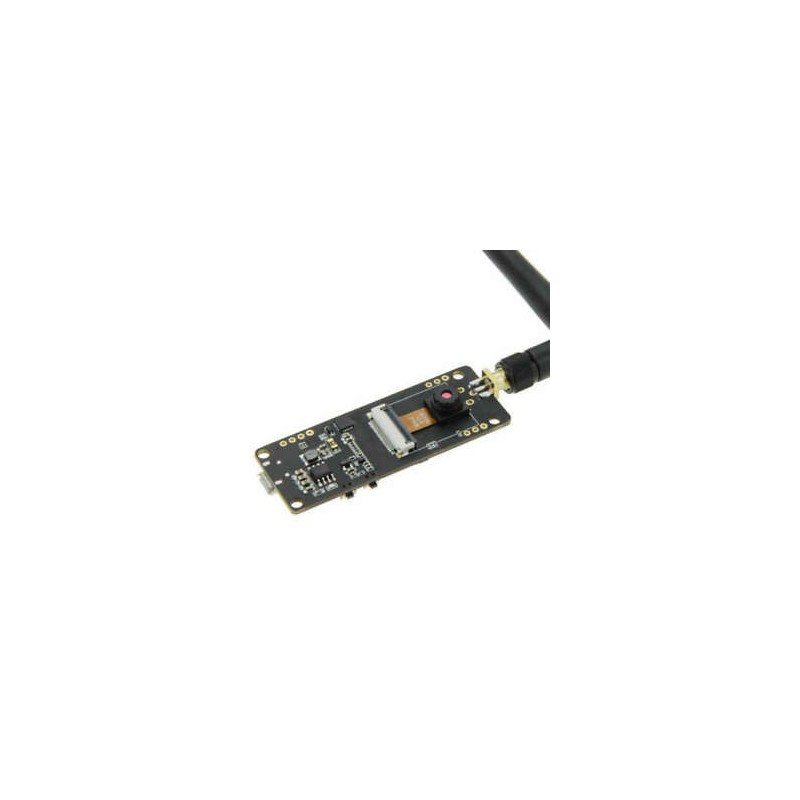

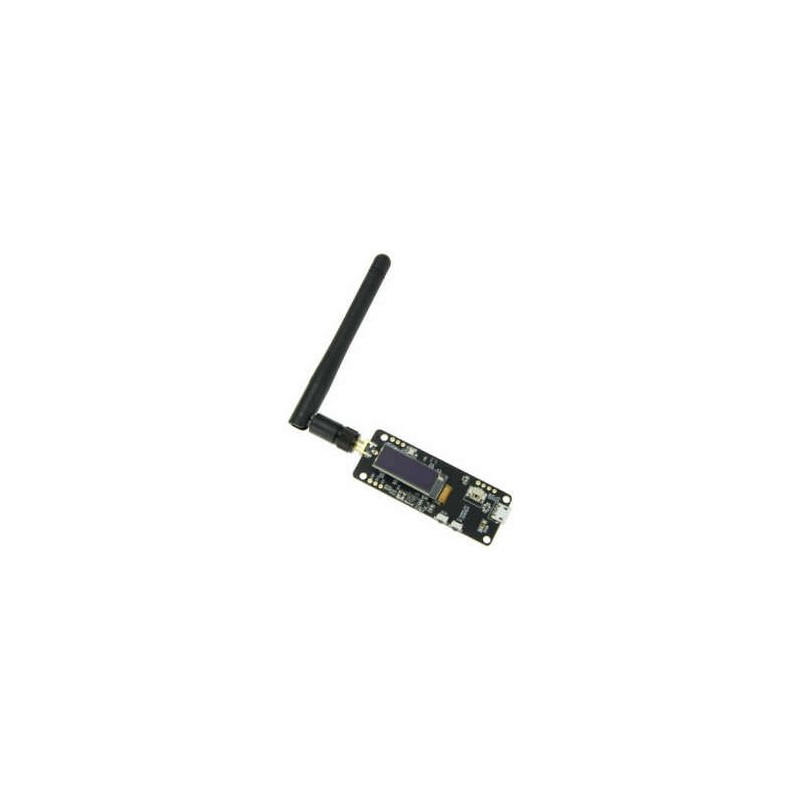

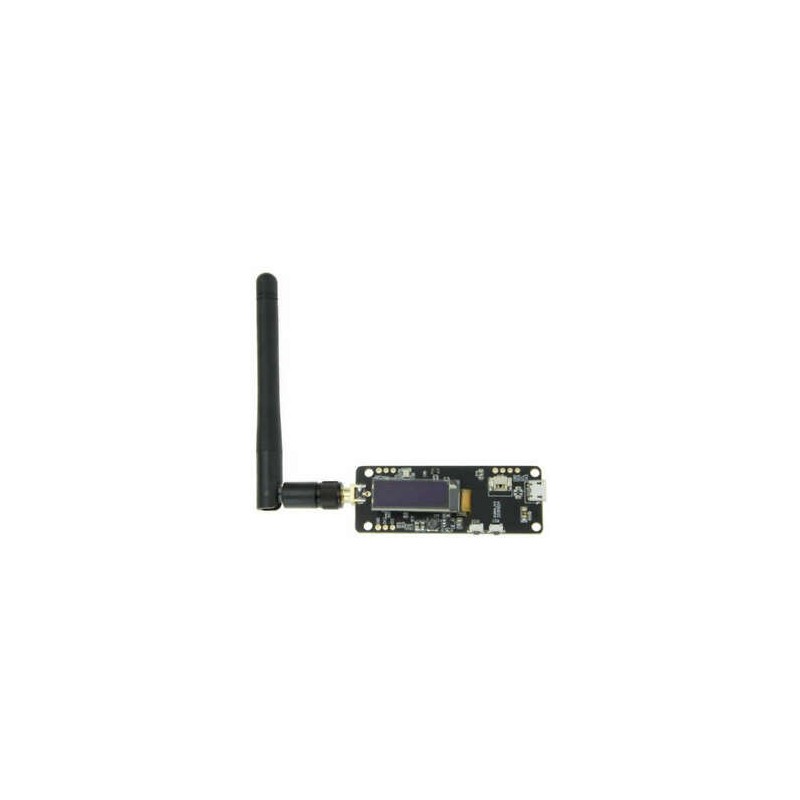

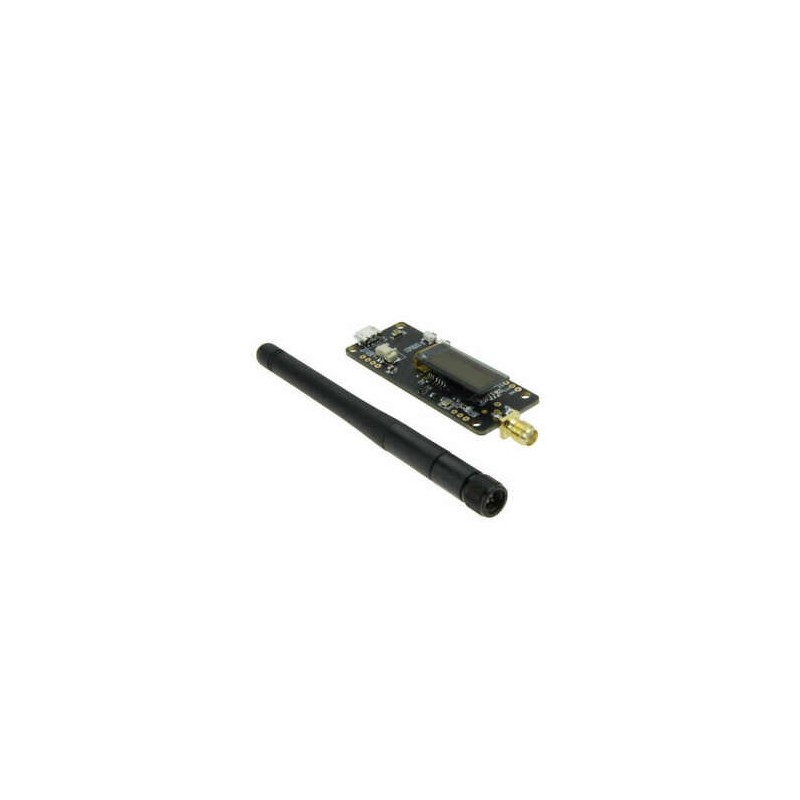

3X(Esp32 Camera Module Development Board Ov2640 Camera Sma Wifi 3Dbi Antenn K8S1

3X(Chipset ESPRESSIF-ESP32-PCIO-D4 240 mhz Xtensa？ single- / dual-core LX6 32-bit microprocessor
FLASH QSPI flash / SRAM, up to 4*16 MB
SRAM 520 kB SRAM
KEY Reset, IO32
Dispaly 0.91 SSD1306
USB to TTL CP2104
OV2640 2 Megapixel Camera
On-board watch 40 mhz crystal oscillator
Operating Voltage 2.3 v-3.6 v
Working Current Over 160mA
Working temperature range -40 ℃ - 85 ℃
Power Supply Specifications
USB Power Supply 5 v / 1A
3.7V Li-Ion battery
WI-FI Description
Protocol 802.11 b / g / n / e / i (802.11n, accelerate to150Mbps) a-MPDU and A-MSDU polymerization, support 0.4 ÎĽS Protection interval
Frequency range 2.4 ghz ~ 2.5 ghz (2400 m ~ 2483.5 m)
Transmission Power 22dBm
Distance communication 300 m
Bluetooth Description
Protocol Attend bluetooth v4.2BR / standard EDR and BLE
Radio Frequency With-98dBm Sensitivity NZIF Class Receiver-1, Class-2 & Class-3 Emitter AFH
Audio frequency CVSD & SBC audio frequency
Software Specification
Wi-Fi Mode Station / SoftAP / SoftAP & Station / P2P
Security mechanism WPA / WPA2 / WPA2-Enterprise / WPS
Encryption type AES / RSA / ECC / SHA
Software Development Support cloud server / development SDK for user firmware development
IPv6, IPv6, SSL, TCP / UDP / HTTP / FTP / MQTT Network Protocol
User Configuration AT & instruction set, cloud server, android / iOSapp

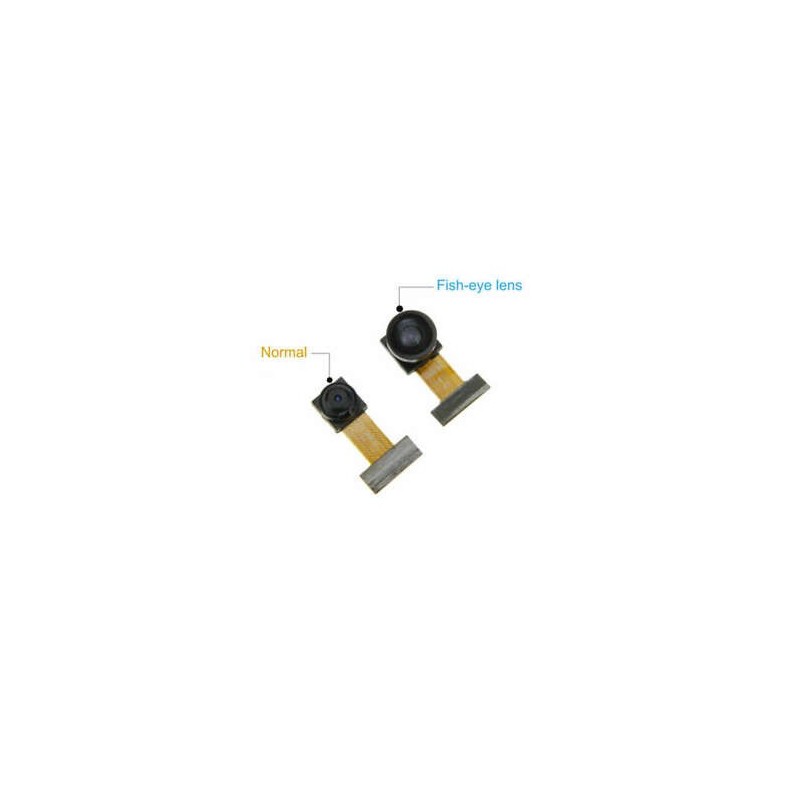

Lens mode:Norma
Colour:Black
Material:Metal & PC
Package Contents:
1 * ESP32 Camera Module
1 * Wi-Fi Antenna
1 * Power cable)
