5X (DM542 léptetőmotor-meghajtó az 57 86-as sorozatú kétfázisú digitális léptetőmotorhoz Moto Q7G2)
283475057164
Új termék
5X(DM542 Stepper Motor Driver For 57 86 Series 2-Phase Digital Stepper Moto Q7G2
5X(The driver uses discrete components structure, as long as no over voltage and wiring is right, please rest assured that two-phase 4-wire, 6-wire, 8-wire can be used. 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used
Feature:
20KHz chopping frequency.Optical isolation signal input. Output current DIP switch is adjustable. Bipolar constant current chopping method
High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200.TTL input signal compatible,while accepting differential signal input
Specifications:
Power supply:DC 24-60 (V)
Current maximum:4.5A
Output phase current:1.5A-4.5A
Logic input current:10-20mA
Operating temperature:-15°— 45°

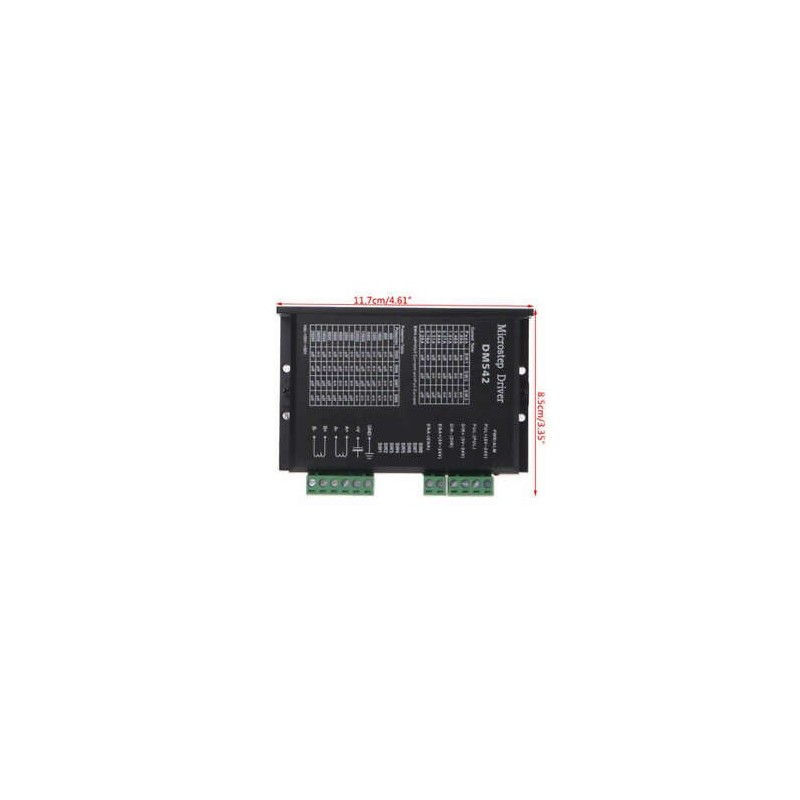

Size:11.7*8.5cm/4.61*3.35 inch
Color: black green
Material: metal ABS
Package Contents:1 x stepper motor driver)
5X(The driver uses discrete components structure, as long as no over voltage and wiring is right, please rest assured that two-phase 4-wire, 6-wire, 8-wire can be used. 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used
Feature:
20KHz chopping frequency.Optical isolation signal input. Output current DIP switch is adjustable. Bipolar constant current chopping method
High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200.TTL input signal compatible,while accepting differential signal input
Specifications:
Power supply:DC 24-60 (V)
Current maximum:4.5A
Output phase current:1.5A-4.5A
Logic input current:10-20mA
Operating temperature:-15°— 45°
Size:11.7*8.5cm/4.61*3.35 inch
Color: black green
Material: metal ABS
Package Contents:1 x stepper motor driver)
