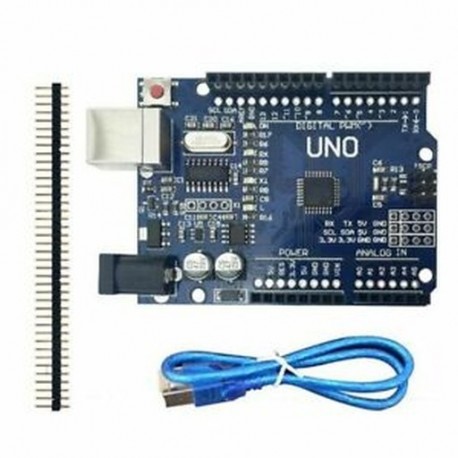

UNO R3 Mini USB kártya USB kábel az Arduino ATmega328P CH340G-hez Cserélje ki az ATmeg B9S3-t

UNO R3 Mini USB Board USB Cable for Arduino ATmega328P CH340G Replace ATmeg B9S3

Main Changes from the older version:
Add two rows of the holes for the pins. So it can be connected with normal Dubond line.
Add 3 rows of the holes for wiring.
Change the in-line package of ATMEGA328P to flat package.
CH340G Replace ATmega16U2
Plug UNO development board, the driver will be automatically installed.
select the board UNO inside the die.
Select the COM port, this can be in my computer queries, just inside your uno port development board
You`d better to choose arduino own routine procedures, burn into the board
USB Cable for Arduino UNO 2560 R3
ATmega328P CH340G UNO R3 Board Mini USB Board for Compatible Arduino & USB Cable DIYmall

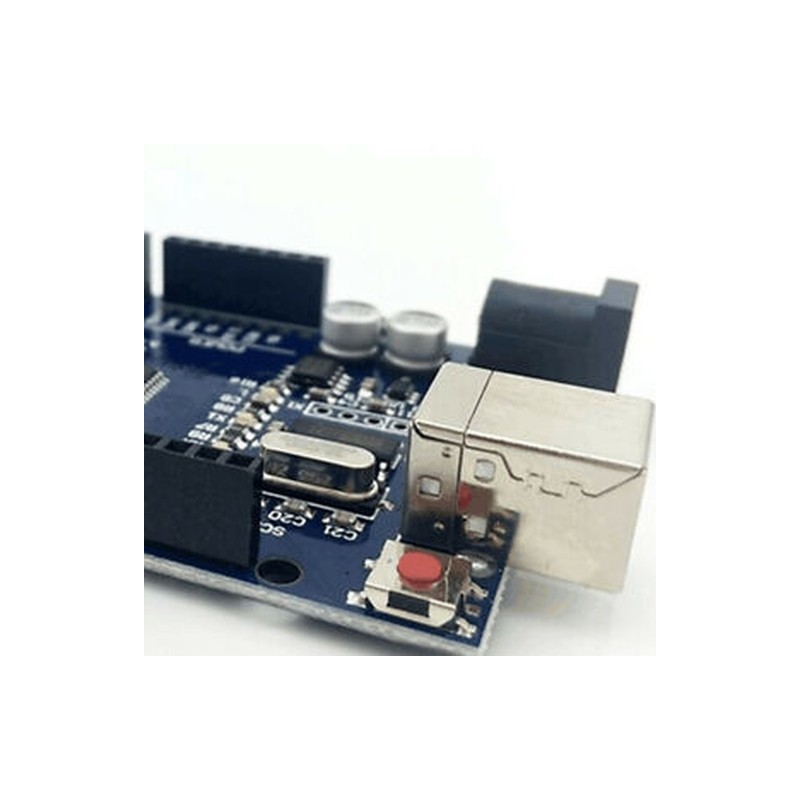

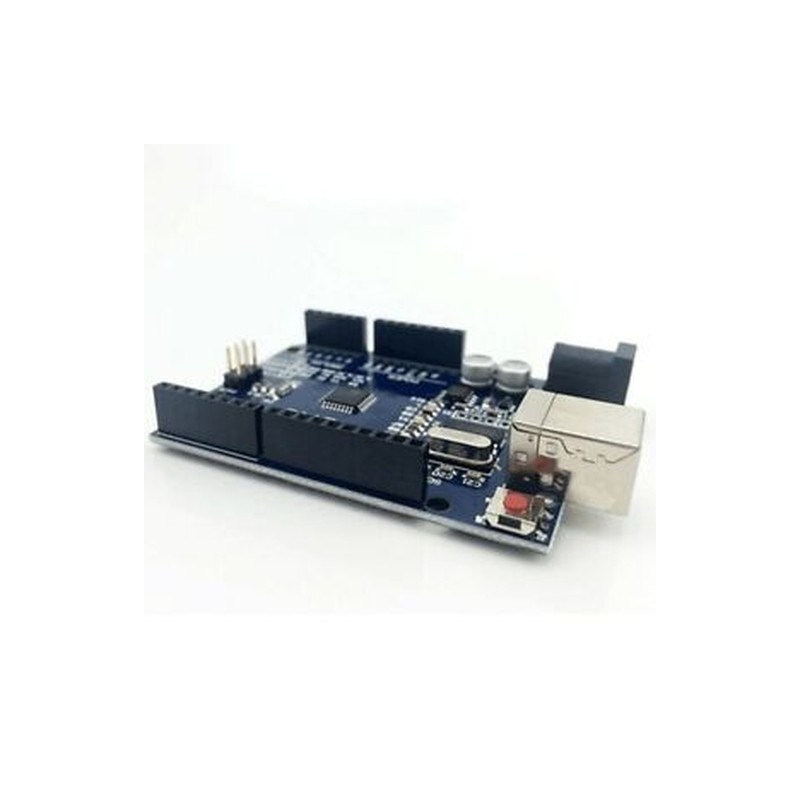

UNO R3 is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worring too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.
Color: blue
Material: plastic,metal
Length: 52cm / 20.47inch
It used for arduino uno 2560 r 3, printer
Net weight: 51g
Package Include:
1 x for ATmega328P CH340G Board
1 x USB Cable for UNO R3
1 x straight needle
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
