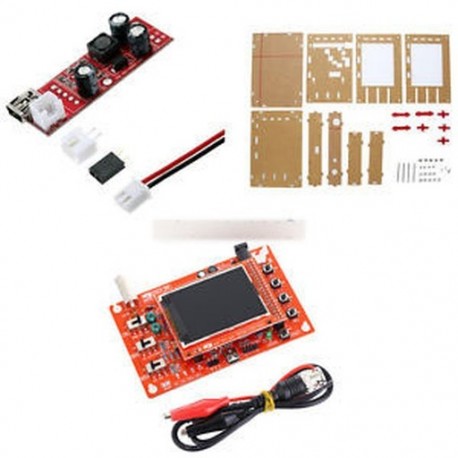

> >>DSO138 összeszerelt 2.4 TFT oszcilloszkópkészlet fokozatos modul akril burkolat tok DIY
Alacsonyabb ár! DSO138 összeszerelt 2.4 TFT oszcilloszkópkészlet fokozatos modul akril burkolat tok DIY Nagyobb

DSO138 összeszerelt 2.4 TFT oszcilloszkópkészlet fokozatos modul akril burkolat tok DIY

401283132053

Új termék

DSO138 Assembled 2.4 TFT Oscilloscope Kits Step-up Module Acrylic Shell Case DIY1. DSO138 Step up Converter Boost Module
High performance DC/DC converter boost module.
Can make 3.5V-8V voltage boost up to 9V.
Applicable situation: need 3.7V lithium battery or USB for power supply.
An ideal match for DSO138 oscilloscope kit(not included). Notice:
The DSO138 oscilloscope and battery is not included. Specifications:
Input Voltage: 3.5V - 8V
Output Voltage: 9V
Output Current: 150mA (when the output voltage is 9V)
Ripple Voltage: 100mVpk (output current at 150mA)
PCB Board Size: 50 * 15mm / 1.97 * 0.6in
Package Weight: 6g / 0.23oz 2. DSO138 2.4 TFT Digital OscilloscopePerformance index
Maximum real-time sampling rate : 1Msps
Accuracy : 12Bit
Sampling buffer depth : 1024 bytes
Analog bandwidth : 0 - 200KHz
Vertical Sensitivity : 10mV / Div - 5V / Div ( 1-2-5 progressive manner )
Adjustable vertical displacement , and with instructions
Input impedance : 1MΩ
Maximum input voltage : 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )
Coupling modes include DC / AC / GND
The horizontal time base range : 10ÎĽs / Div - 50s / Div ( 1-2-5 progressive manner )
With automatic, regular and one-shot mode , easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position , and with instructions
Observable trigger waveform before ( negative delay )
Can freeze at any time waveform display (HOLD function )
Comes 1Hz /3.3V square wave test signal source
3. Cover for DSO138
Note: The DSO138 oscilloscope is not included!
Features:
DIY cover for DSO138 oscilloscope.
Acrylic material, looks transparent(need to tear down the film).
Easy for electronic enthusiasts to assemble.
Specifications:
Material: Acrylic
Item Weight: 156g / 5.52oz
Package Size: 16 * 10 * 4cm / 6.3 * 3.94 * 1.57in
Package List: 1 X DSO138 Digital Oscilloscope
1 X Cover for DSO138
1 x DSO138 step up Converter Boost Module
