2. tétel - 5A DC-DC LED kapcsoló szabályozó töltő Teljesítmény leállítás modul LED feszültségmérő tok

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

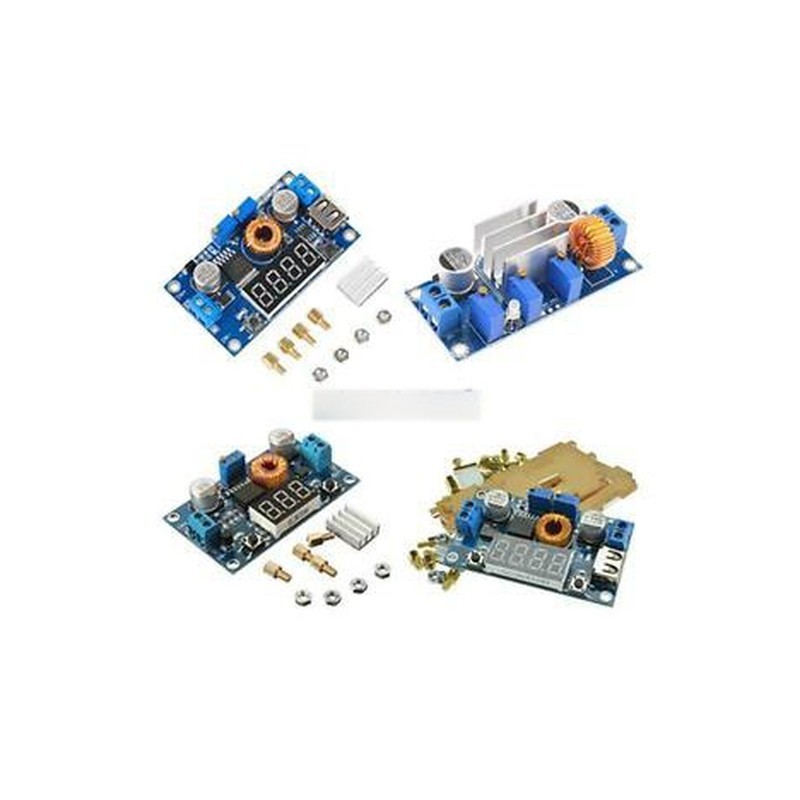

5A DC-DC LED Switch Regulator Charger Power Step Down Module LED Voltmeter Case
5A USB Voltmeter 5A USB Voltmeter Case
1.Module with crystal shell,safer and more beautiful.
2.Contains the voltmeter, ammeter, power meter, USB interfacefor charging the digital products.
Note:
1.When you use the product, the module inputs and outputs to be isolated from ground.
2.USB output voltage is consistent with the module, not a fixed 5V output.
When charging for digital equipment, make sure USB output voltage is 5V.
3.Some customers report: “The module can not adjust the output voltage is always equal to the input voltage.”
When you encounter this problem, please counterclockwise rotation of the “voltage potentiometer” 10 laps or more,
then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V.
4.Shell assembly is very simple, but "left""right""front" panel are directional, you must pay attention during assembly!
Specifications
1.Input voltage range:5-36VDC(Input voltagehigher than 6.2V, constant function will be effective)
2.Output voltage range:1.25-32VDC adjustable(Output voltage higher than 6.2V, constant function will be effective)
3.Output current: 0-5A
4.Output power: 75W
5.High efficiency up to 96%
6.Built in thermal shutdown function
7.Built in current limit function
8.Built in output short protection function
9.Input reverse polarity protection: None (if required, high current diode in series with the input).
10.Bare board size:L x W x H =68.2 X 38.8 X 15mm
11.Weight:73g
Application
1.Use as a step-down modules with overcurrent protection
Usage:
(1) Adjust the right button so that “OUT” LED lighted, Digital meter shows the value of output voltage ,adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2) Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the Digital meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
(3) Connected to the load.
2.Use as a battery charger
Usage:
(1) Make sure you need to charge the battery float voltage and charging current;
(if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA)
(2)Under no-load conditions, adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage;
(if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)
(3)Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined Charging current value.
(4)Charge turn lamp current factory default is 0.1 times the charging current;
(Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged)
(5)connected to the battery charge.
(1,2,3,4 steps as: Output is unloaded, do not connect the battery)
3.Use as a LED constant current driver module
Usage:
(1)Adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2)Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined LED operating current.
(3)Connect LED, work.
(1,2 steps as: Output is unloaded, do not connect LED)
Voltmeter and ammeter calibration method:
Module with manual calibration function can correct display precision voltage and current, if you think the current voltage and current accuracy to meet the requirements, do not perform the following operations.(1) Output voltage calibration steps
Step 1, adjust the right button so that “OUT” LED lighted, Digital meter shows the value of output voltage; Press the right button for more than 2 seconds, release, Digital meter and “OUT” LED flashes in synchronization so that you enter the output voltage calibration mode.
Step 2, press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.
Step 3, press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.
(2) Input voltage calibration steps
Step 1, adjust the right button so that “IN” LED lighted, Digital meter shows the value of input voltage; press the right button for more than 2 seconds, release,Digital meter and “IN” LED flashes in synchronization so that you enter the input voltage calibration mode.
Steps 2 and 3, consistent with the output voltage calibration method.
(3)Output current calibration steps
Step 1, adjust the right button so that Digital meter shows the value of output Current. Press the right button for more than 2 seconds, release, Digital meter flashes in synchronization so that you enter the output current calibration mode.
Step 2,Connected to the load, ammeter in series, adjust the right and left button to change the display of digital meter, so that is consistent with the ammeter display .
Package included1PCS5A XL4005The module properties: non - isolation step-down module
Input module parameters:
Voltage range: 4.5 - 30 V
Output current range: 0.1 - 5 A
Output voltage range: 0.8 - 30 V (adjustable)
The light output range: 0.1 - 5A
Working temperature: - 40 -- 85 ℃
Working frequency: 300 KHZ
PWM control Frequencerange: 100-300 hz
Range of transition: up to 95% (efficiency and input and output voltage, current and pressure difference)
Overtemperature protection:Yes (after overtemperature shutdown output)
Reverse connect protection:yes (input power transmission capacity greater than 2, reverse connection protection is invalid)
Module size: 64.5 mm *28.1 mm*20mm(L*W*H)
Package included1 x XL4005 5A CC CV Step-down Buck Power Supply Module Lithium Charger arduino NEW
5A 75W Voltmeter
This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module,capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.The module with a voltage meter to display the input voltage and output voltage, and the voltage can be corrected through the button to improve the accuracy of the voltmeter.
Features:
1. LED power indicator.
2. Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage; The nixie tube can be turned off by another button. Mentioned states are able to be memorized, is not lost even if the power is disconnected. (On-board marked "IN" LED is turned on, the nixie tube display input voltage value, "OUT" LED bright display is the output voltage value).
3. Special launch, the voltmeter calibration function, will never exist voltmeter inaccurate!
Voltmeter calibration method:
(1) Output voltage calibration steps
Step 1, adjust the right button so that "OUT" LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and "OUT" LED flashes in synchronization so that you enter the output voltage calibration mode.
Step 2, press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.
Step 3, press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.
(2) Input voltage calibration steps
Step 1, adjust the right button so that "IN" LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, release, voltmeter and "IN" LED flashes in synchronization so that you enter the input voltage calibration mode.
Steps 2 and 3, consistent with the output voltage calibration method.
Performance parameters:
1、Input voltage range4～38VDC(Note:input voltage not exceeding 38V)
2、Output voltage range1.25-36VDC adjustable
3、Output current: 0-5A
4、Output power: 75W
5、voltmeter range: 4 to 40V, error ±0.1V
6、Operating frequency: 180KHz
7、High efficiency up to 96%
8、Built in thermal shutdown function
9、Built in current limit function
10、Built in output short protection function
11、Input reverse polarity protection: None (if required, high current diode in series with the input).
12、L x W x H =6.6*3.9*1.8CM
Application:
The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV，portable instrument power supply，telecom/networking equipment,24V vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V etc.
Package included1 x 5A Adjustable Power CC/CV Step Down Charge Modul
