16 bites I2C ADS1115 modul ADC 4 csatorna Pro Gain erősítővel Arduino RPi készülékhez

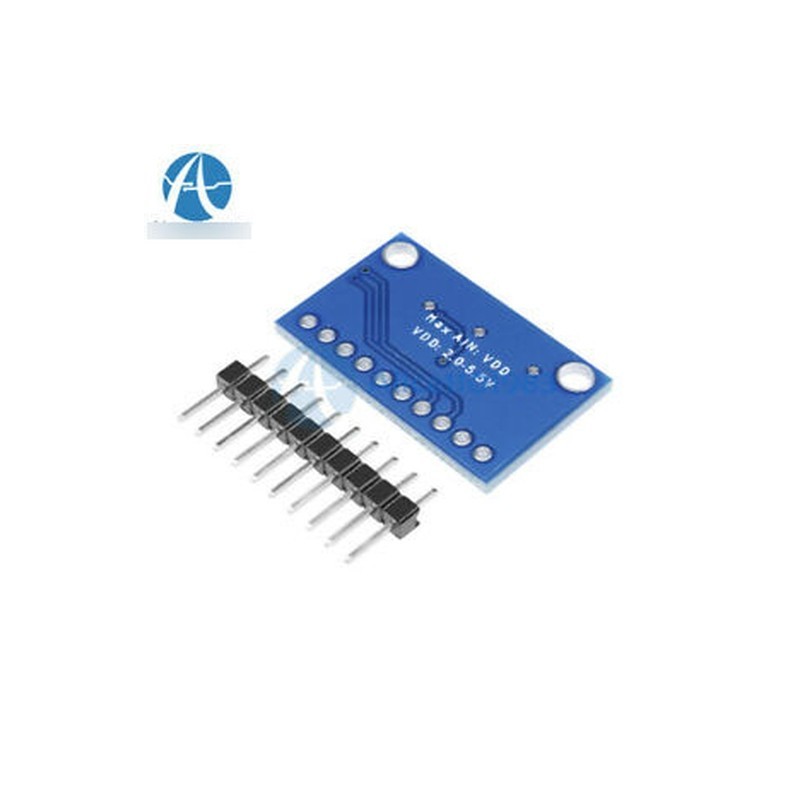

16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier for Arduino RPi
Features:
ADC Bit rate: 16 Bit
Interface Type: I2C
Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs
Input voltage: 2.0-5.5v
Channel input voltage :0-VDD
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
PROGRAMMABLE DATA RATE:8sps-860sps
Input range programmed control, 7 types input ranges:
-0.256V ~ 0.256V, -0.512V ~ 0.512V, -1.024V ~ 1.024V,
-2.048V ~ 2.048V, -4.096V ~ 4.096 V, -6.144V ~ 6.144V
I2C 7-bit addresses between 0x48-0x4B
Size:18mm*28mm
Applications
Portable instrumentation
Consumer goods
Battery monitoring
Temperature measurement
Factory automation and process controls
Package Included:1 x 16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier for Arduino RPi
