Tápegység-tesztelő LCD-kijelzőhöz Számítógép tápegység-diagnosztikai teszter PC-tápegység/ATX/BTX/ITX-kompatibilis

Tápegység-tesztelő LCD-kijelzőhöz Számítógép tápegység-diagnosztikai teszter PC-tápegység/ATX/BTX/ITX-kompatibilis fekete

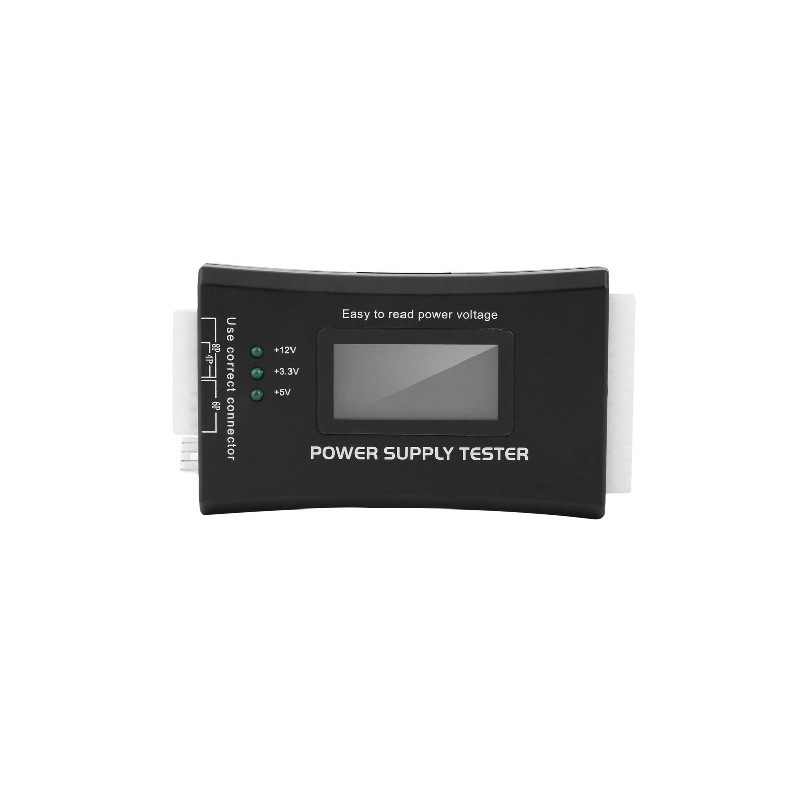

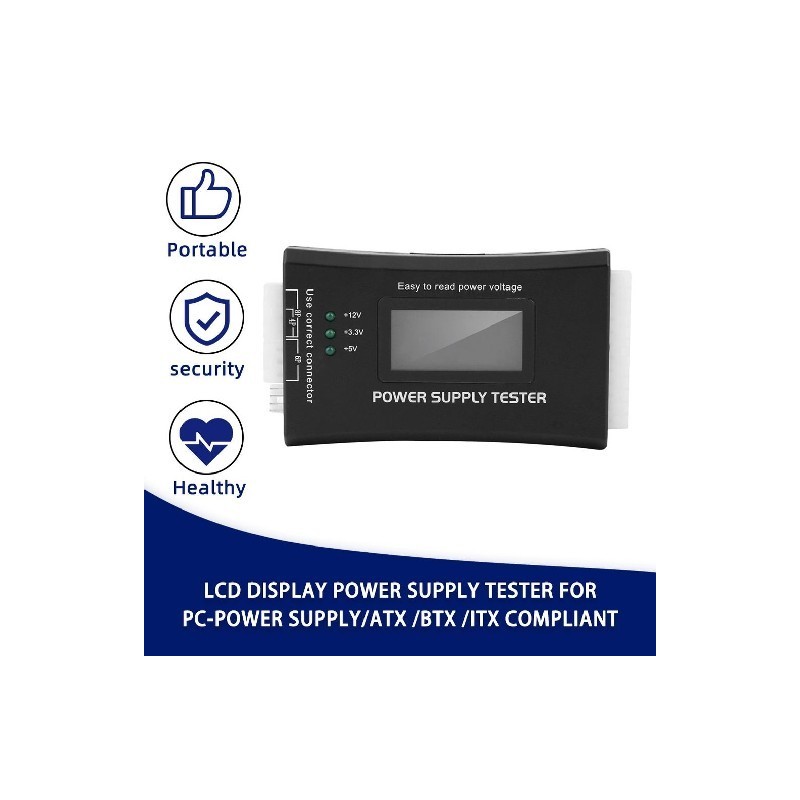

Power Supply Tester for LCD Display Computer Power Supply Diagnostic Tester PC-power Supply/ATX /BTX /ITX Compliant Black


Features:
1.LCD's indicate the status of voltage.
2.The power supply tester is a robust voltage, tester for PC-power supply, ATX. BTX and ITX compliant, power supplies can be tested.
3.The PC/ SPS is suitable for the ambitious hobby user, as well as for a quick functional check in specialized trade.
4.The methods of operation:Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite.
Description:
1.Power on the supply of power, will hear "DuDu" ring , if no flicker then the power supply output voltage is normal.
2.If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer; if the corresponding voltage value or PG flicker too, then the power is failed.
Specification:
Voltage source:  20/24 pin ( ATX - connector )
Voltage test: 12V , -12V , 5V , -5V , 3.3V , 5V Stand by (SB) 12V power Good ( PG )

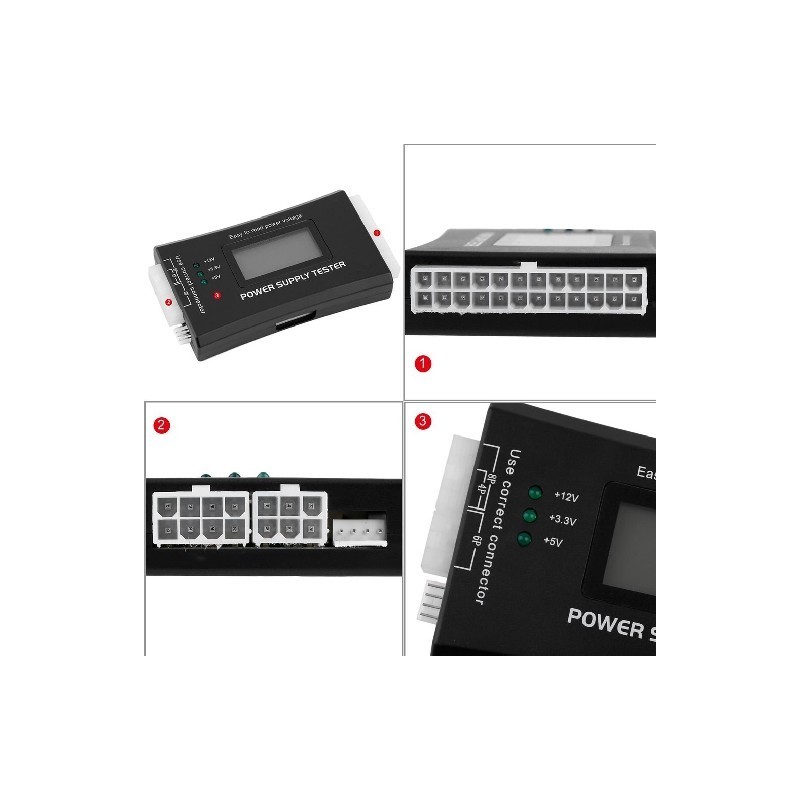

Connectors: Floppy, HDD , CDROM , SATA , 4pin ( P4 ) , 8pin ( Dual-CPU ) , 6pin ( PCI-Express )
DIY supplies: Electric
Color: Black
Material: Plastic & Electronics

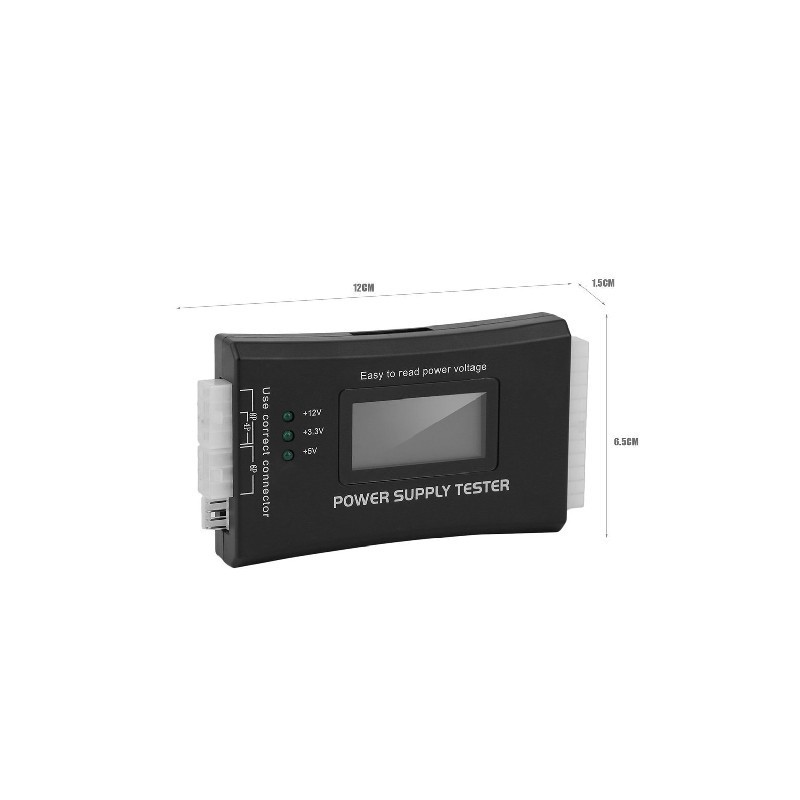

Size ( about ): 12 x 6.5 x 1.5 cm
Packet Included:
1 x Power supply tester
Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow slight dimension difference due to different manual measurement.
