Színes TFT LCD tranzisztor teszter diódás trioda kapacitásmérő LCR ESR L6J1

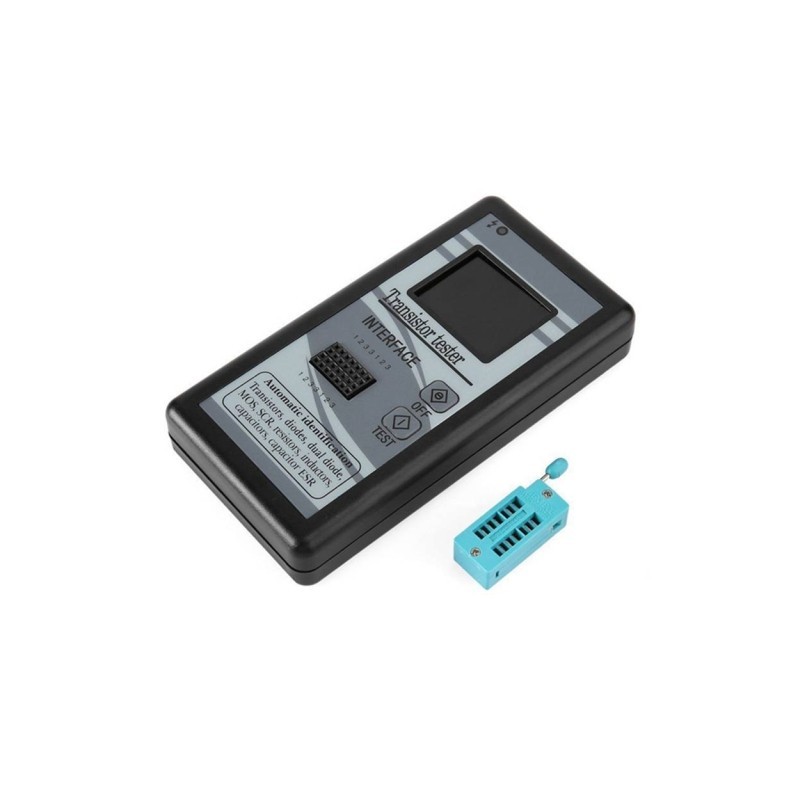

Color TFT LCD Transistor Tester Diode Triode Capacitance Meter LCR ESR L6J1

Specific optimization and upgrading as follows: Screen 1.8-inch TFT color LCD screen.
Screen resolution to 128X160
Shutdown time was extended to 40 seconds (can be turned off manually at any time).
Increase power led
Interface optimization: a variety of colors to display different content. Partition shows the main parameters and Video Card.
Bottom of the screen: Real-time display battery voltage
Automatic shutdown countdown display (the remaining five seconds red flashes to remind font)
Test Range Description:
Transistor Range: 2 or less (including 2) PN junction consisting of transistors do not have other internal resistive and capacitive original.
Material: plastic metal
color:black&blue
Resistance measurements 0.5Ohm-50MOhm
Inductance measurement 0.01mH-20H
Capacitance measurement 25pf - 100000uF
Dimensions: 70mm * 135mm * 24mm
Weight: 0.128kg
Simple instructions:
1,2,3 pin random access, automatic identification of type, automatic detection pin order, graphic display, automatic measurement parameters. Full fool operation,
You do not need to be able to operate basis

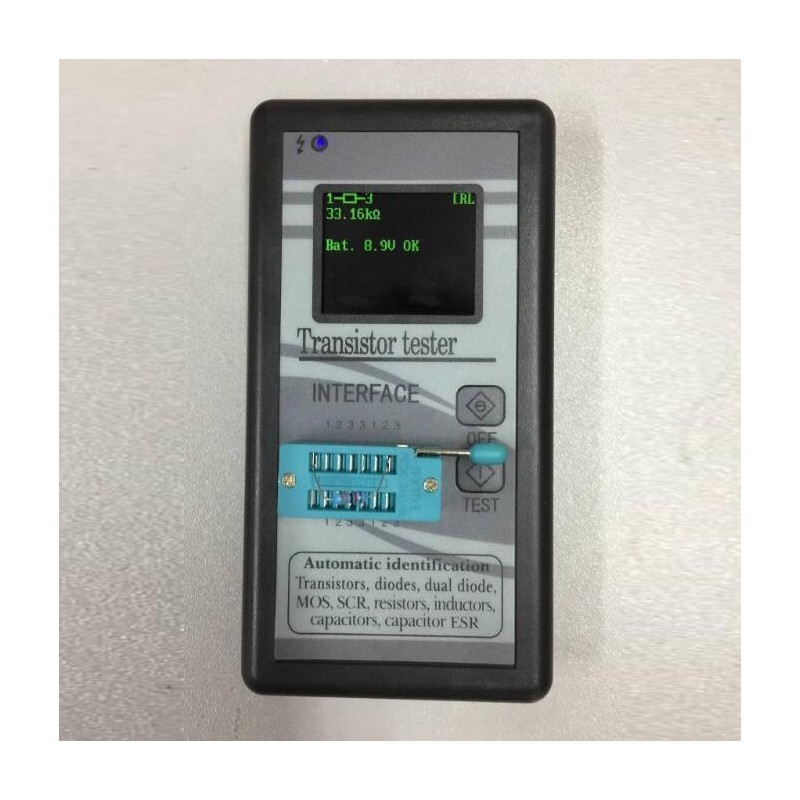

For example. You pick up a transistor, you do not consider the order of 123 BCE, just insert. Then press the test button. He automatic recognition is the transistor, FET or SCR sense resistor or capacitor. . . . After identification of the transistor, the NPN or PNP test, after which the order is determined BCE. Graphically displayed, and then tell you the magnification, turn-on voltage, and so on. Basically you just need to plug in and press the button on it. The rest he`ll tell you what.
Package Contents: 1x tester
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
