Szín: TS832 és RC832 - TS832 RC832 vevő 48Ch 5.8G 600mw 5km Wireless AV Transmitter for FPV Multicopter RC Repülőgép

THIS IS THE NEW 48-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS
SYSTEM.
48 channels: Cover A, B, E bands and F band (Airwave band), 4
bands and all frequencies compactable;
Two switching buttons: CH button for
frequencies channels switching, FR button for frequencies bands
switching;
Two digits display: one for CH and the other for FR, real-time
positioning which frequency band and which channel received;
Power off
memory: Replay the very last frequency band and channel
Independent video and
audio signal outputs
Product Details

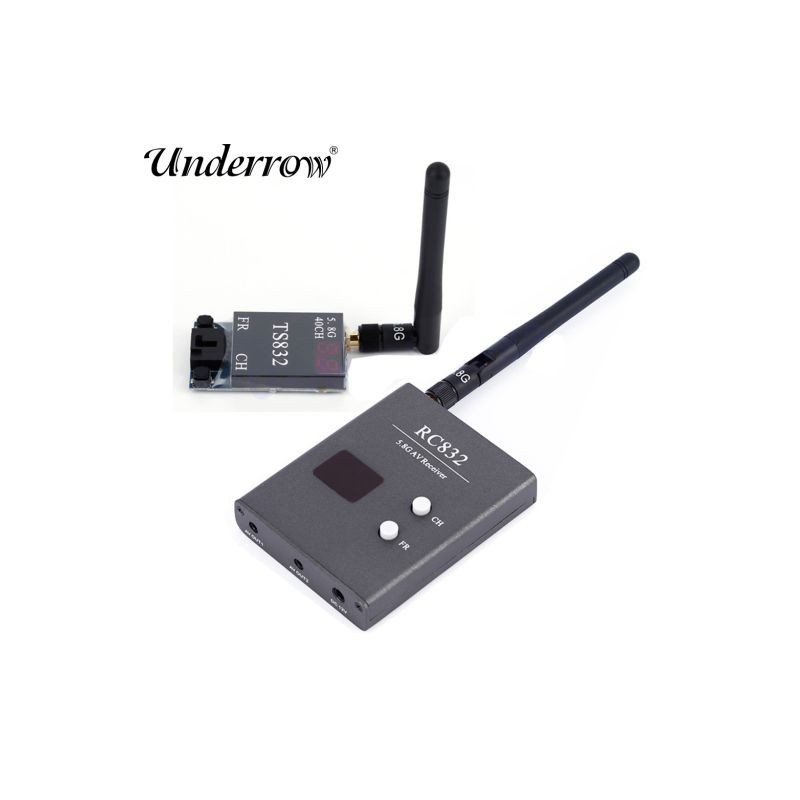

FPV 5.8G 600mW A/V
Transmitting/Receiving System TS832 RC832 - 32CH Edition | RP-SMA video format
supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX
and RX)
TX TS832 specs:
Power input: 7.4-16V (3S Lipo
suggested)
Transmitting power: 600mA
Antenna gain: 2db
Working current:
220mA at 12V
Video bandwidth: 8M
Audio bandwidth : 6.5M
Weight:
22g
Dimension: 54x 32x 10mm(excluding antenna)
RX RC832
Specs:
Power input: 12V
Working current: 200mA max
Antenna
impedance: 50
Antenna gain: 2db
Video impedance: 75
Video format:
NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g
Note: TX
antenna must be installed properly before it is switched on, power on without
install antenna, or a improper antenna was used may easily burn the TX, and such
damage is not covered by warranty.

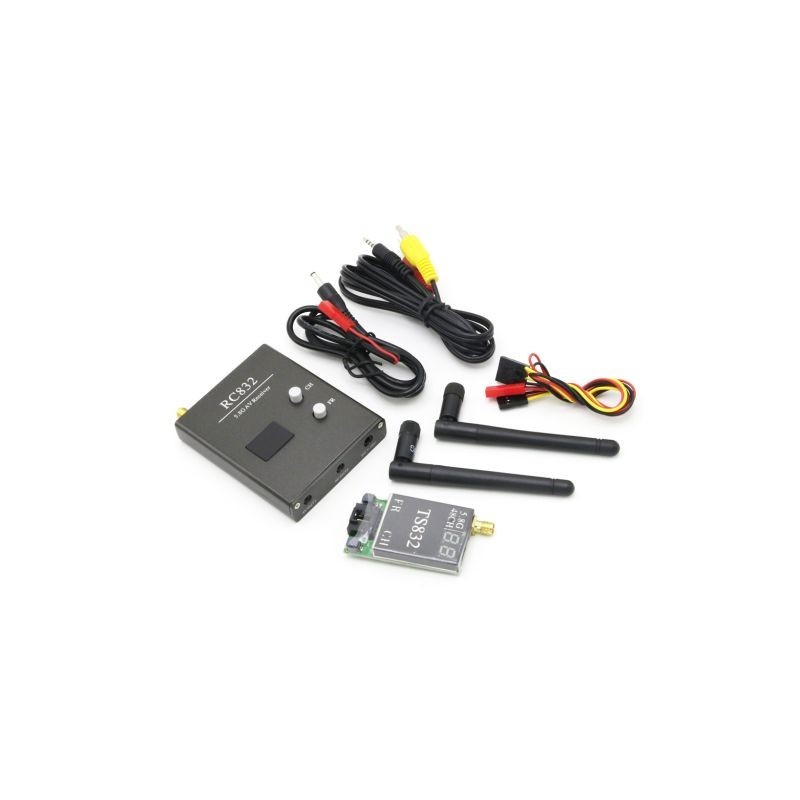

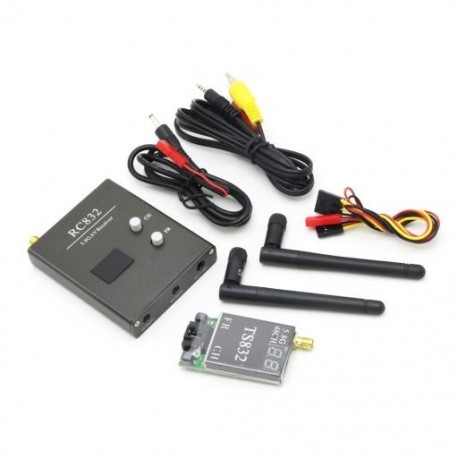

- 1 x transmitting unit
(TX)
- 1 x receiver (RX)
- 2 x antennas (2db)
- 1 x Power cable for
rc832
- 1 x power cable for tx832
- 1 x user manual
