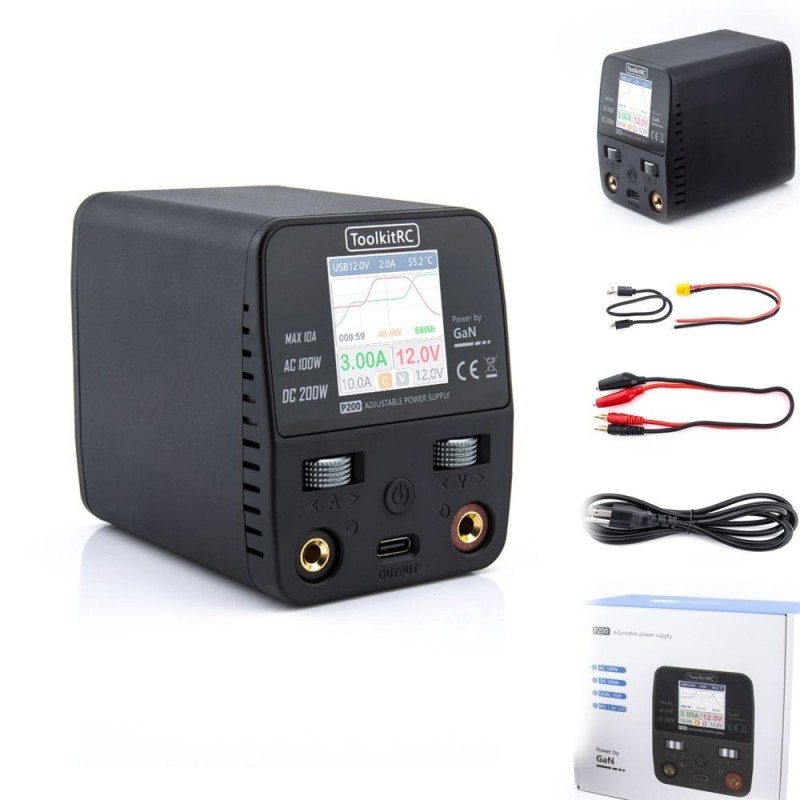

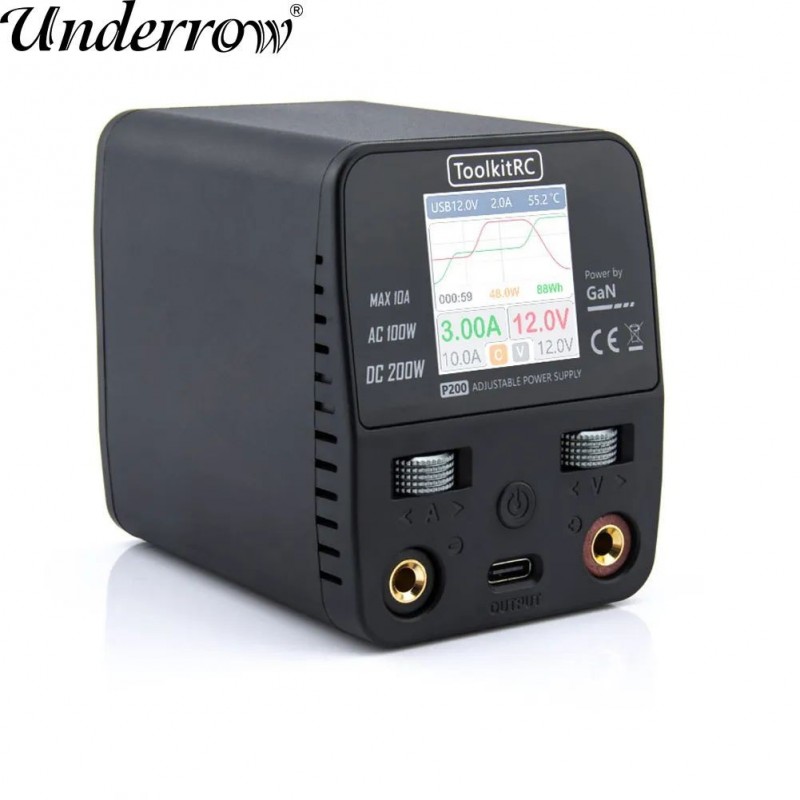

Szín: P200-EU - ToolkitRC P200 Mini 30V AC100W DC200W 10A GaN állítható mini asztali tápegység AC vagy DC két bemeneti

P200
is a mini desktop adjustable power supply, with AC or DC two input modes,
built-in 100W GaN AC power supply, IPS wide-angle display screen records and
curve display voltage and current, and other features.
Specification:
Input
voltage: AC 100-240V@MAX 100W
DC 7-28V@MAX 10A 200W
Main output: 1.0-10.0A
@MAX AC 100W / DC 200W
1.0-30.0V @MAX AC 100W / DC 200W
USB output:
5.0-20.0V @MAX 65W
USB protocol: PD
3.0/PD2.0/PPS/QC4/QC3.0/QC2.0
AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
Protection
time: <1ms (Short circuit, OC ,OV)
Control cycle: 8ms
Product size:
84*63*78 mm
Product weight: 360g
Pack size: 160*150*73 mm
Pack weight:
670g
LCD: IPS 1.54" 240*240 resolution
Main port: 4.0mm banana female
port
USB port: TYPE-C Fast charge, upgrade
Safety
1. P200 allows the input voltage of DC 7-28V or
AC
100-240V to ensure that the power supply
voltage
conforms to the power supply. Pay attention to
the
positive and negative polarity of the power
supply
when connecting.
2. Do not use this product in the environment of
heat
source, humidity, flammable and explosive
gas.
3. Please use this product when someone is guarded
to
prevent accidents.
4. When not using this product, please unplug the
input
power in time.
5. When using the charging function, please set
a
current that matches the battery. Do not set
an
excessive current for charging, so as not to
damage
the battery.
