Szín: Mini F7 FC E55A ESC - IFlight BLITZ Mini F7 Flight Controller Stack OSD（AT7456E）W/ BLITZ E55A 4-IN-1 ESC DShot150/300

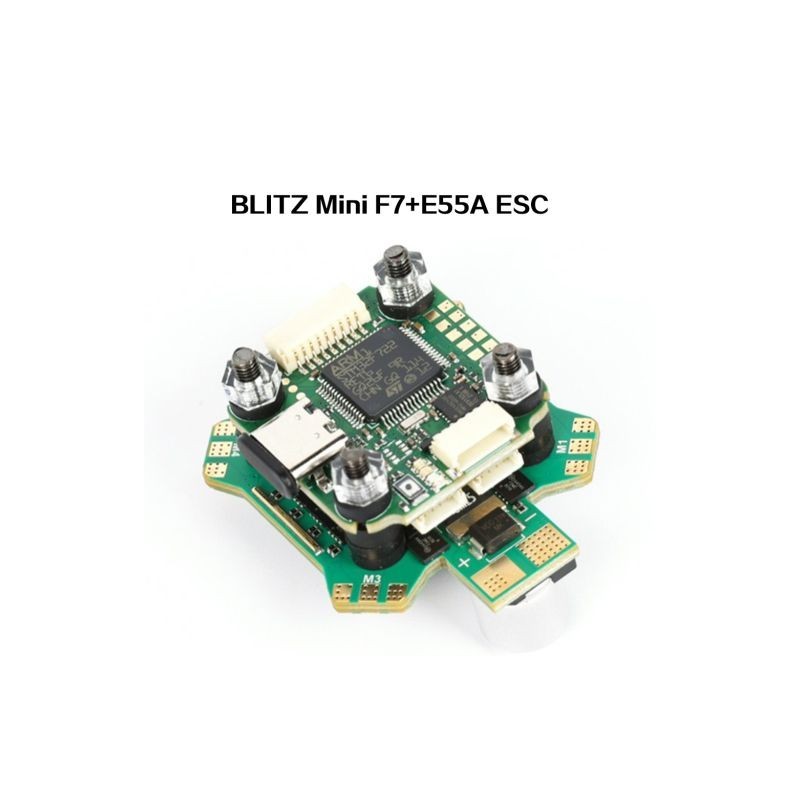

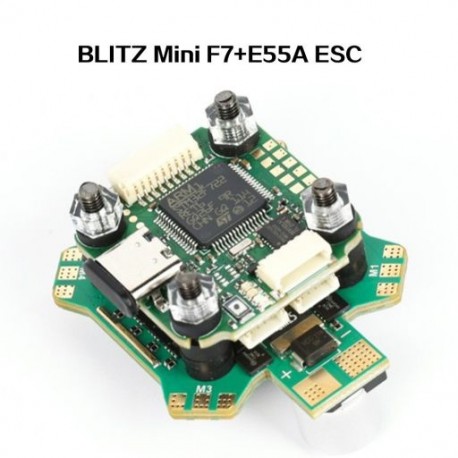

IFlight BLITZ Mini F7 Flight Controller Stack OSD(AT7456E)W/ BLITZ
E55A 4-IN-1 ESC DShot150/300/600 2-6S for FPV Racing Drone
FC // BLITZ Mini F7 Flight Controller
Top Features:
BlackBox: 16MB
DJI Air Unit Plug-and-Play. No need to solder tiny wires.
BAT, 5V, 3.3, Start indicator
With LC filter.
Specs:
MCU:STM32 F722
Gyro:MPU6000
Baro: NO
Betaflight OSD:IFLIGHT OSD (AT7456E)
Blackbox:16MB
5 X Uarts
UART1 for VTX HD/Analog
UART2 for Receiver
UART3,UART4 for GPS or 0ther sensors that require a serial port
UART6 for ESC Telemetry
4×Dshot/PWMoutputs
1×I2C
1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1
/5V/G/VI)
1 xSH1.0 8pin connector for ESC(R6/CUR/M4/M3/M2/M1/BAT/G)
1xSH1.0 6pin connector for Any Receiver or DJI(3V3/R2i/5V /G/R2/T2)
1xSH1.0 4Pin connector GPS (T4/R4/G/5V)
1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
Smartaudio&IRCTramp VTX protocol supported
WS2812ledStrip:Yes
Bepper:Yes
Firmware: IFRC-BASEF4 4.X.X
Mounting:20*20mm/φ4
Dimensions:30.5*27mm
Weight:5.0g
ESC // BLITZ Mini E55 4-IN-1 2-6S ESC
SPECIFICATION:
DIMENSION: 35*42MM
MOUNTING HOLES: 20*20MM/Φ4MM
WEIGHT: 11.3G
SUPPORTS 2-6S LIPO INPUT
MCU:G071
CONSTANT: 55 AMPS
BURST: 60 AMPS
CURRENT SENSOR: YES
BEC: NO
CURRENT RATE: 100
SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.
FIRMWARE: BLHELI 32
TARGET: IFLIGHT_BLITZ_G1
