Szín: kettős protokoll C-től C-ig - Dual Protocol M2 NVMe/NGFF SATA SSD tok 10 Gbps HDD Box M.2 – USB 3.1 SSD tokház NVME

A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!
Dual Protocol M2 NVMe/NGFF SATA SSD tok 10 Gbps HDD Box M.2 – USB 3.1 SSD tokház NVME PCIE NGFF SATA M/B kulcshoz
Dual Protocol M2 NVMe/NGFF SATA SSD Case 10Gbps HDD Box M.2 to USB 3.1 SSD Case Enclosure for NVME PCIE NGFF SATA M/B Key
M2 SSD Case NVME Enclosure M.2 to USB Type-C Hard Drive Enclosures Box Aluminum Alloy Shell for NVME PCIE NGFF SATA M/B Key SSD
Feature:
M.2 SATA NVME to USB 3.1 hard drive enclosure
Compliant with SATA 3 specification and compliant with USB3.0 specification.

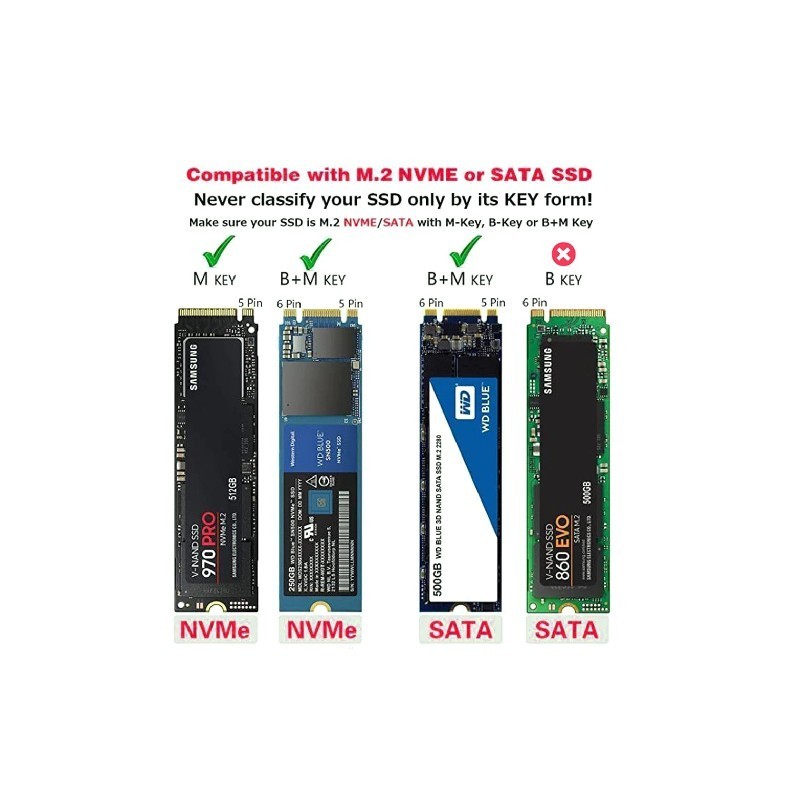

Dual protocol supports NGFF NVME protocol, suitable for M2 ( M-Key/M B Key) SSD.
Single protocol supports NGFF protocol, suitable for M2 (B-Key/M B-Key)SSD.
Support M.2 SSD, 22*30mm, 22*42mm, 22*60mm, 22*80mm Solid State Drive (SSD not included).
Output speed depends on the type of SSD you use, output cable, and computer performance, NGFF (theoretical 5Gbps), NVME (theoretical 10Gbps).
Dual protocol uses 2 cables USB C to A (5Gbps) and USB C to C (10Gbps), you can choose by yourself.
NGFF protocol uses USB C to A (5Gbps) cable.
Aluminum alloy shell, efficient heat dissipation, while increasing the heat dissipation area, it is convenient for the hard disk to dissipate heat during work and increase the life of the hard disk.
Support UASP protocol. Easy to use, plug and play, no driver required
Specification:
Name: M2 SSD mobile hard disk box
Protocol: NGFF NVME dual protocol, NGFF protocol (optional)
Color: Black, Silver (optional)
Type: single-wire (USB C-A), single-wire (USB C-C), dual-wire (USB C-A USB C-C) (optional)
Applicable: SSD with NGFF NVME protocol M.2 interface 2230/2242/2260/2280 specification (SSD not included)
Material: aluminum alloy
Main control: RTL9210B, INIC3639
Maximum support: 16TB
Support interface: B Key/B M Key/M Key
Output interface: Type-C
Compatible system: for Windows 98/for Se/for Me/2000/for XP/for Vista/Win7/Win8/Win10/for MAC OS 8.6 or the latest version
Product size: about 102mmx30mmx11mm/4.02x1.18x0.43 inch
Installation Steps:

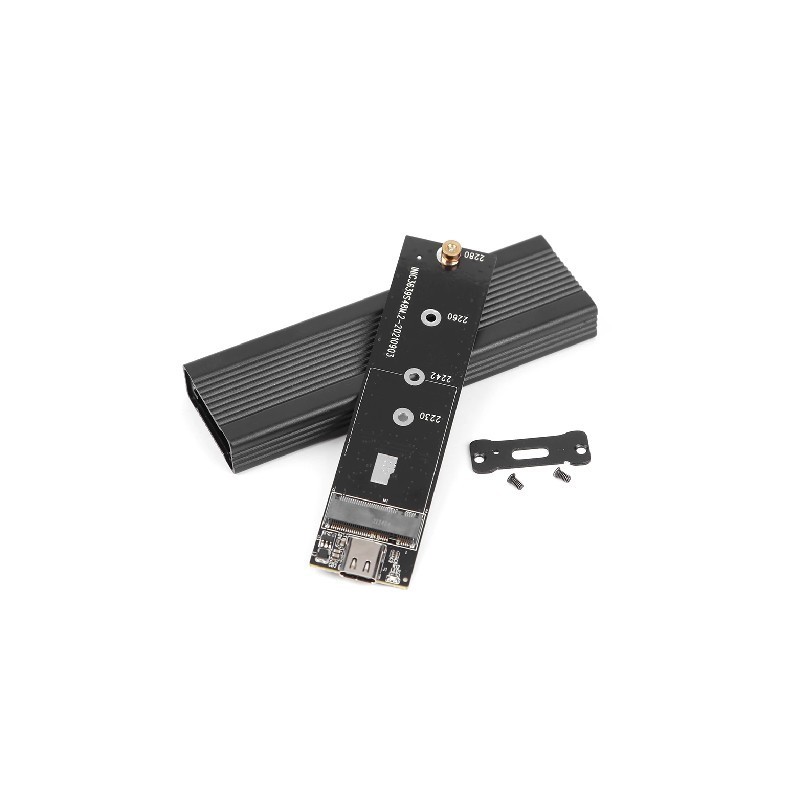

1. Unscrew the top screw with a screwdriver and take out the PCB board.
2. Align the slot and install the SSD hard drive.
3. Tighten the screws at the bottom of the hard drive to fix the hard drive.

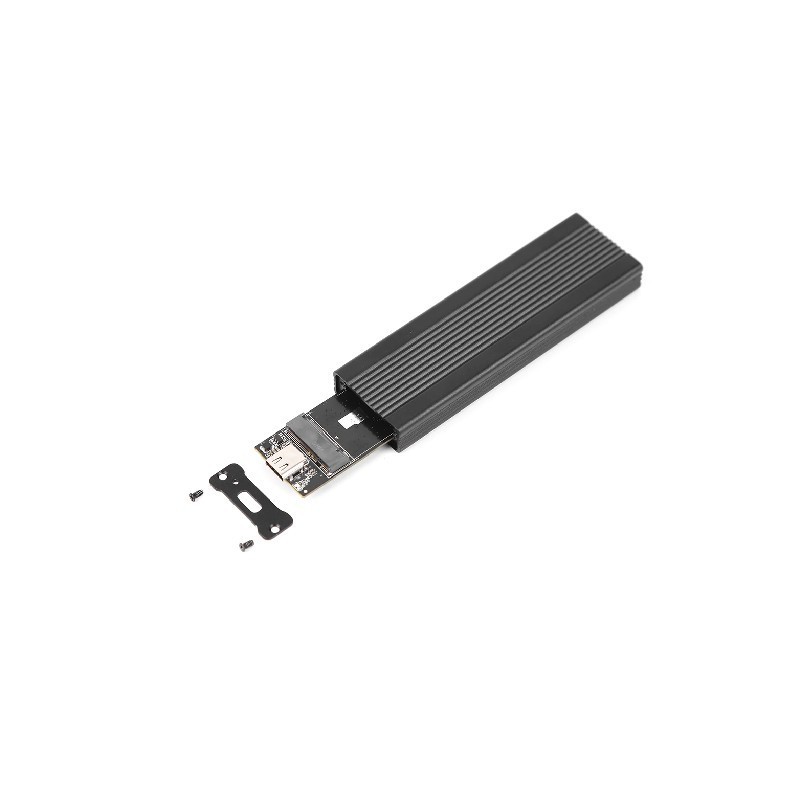

4. Put the installed hard disk into the hard disk box and close the top cover.
Important Hint:

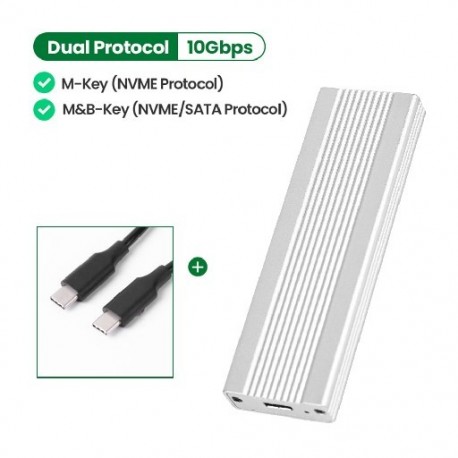

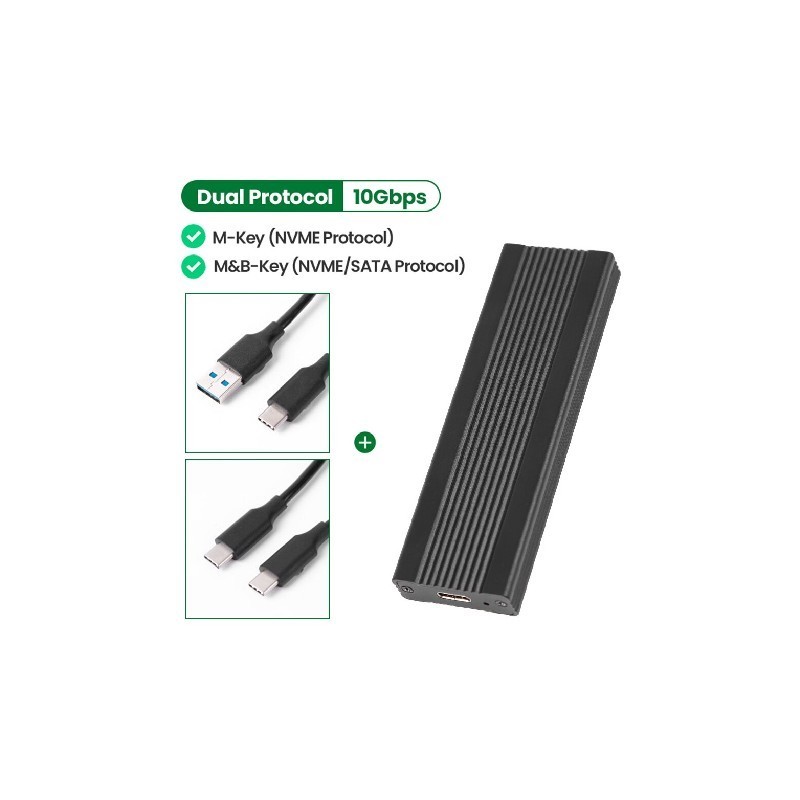

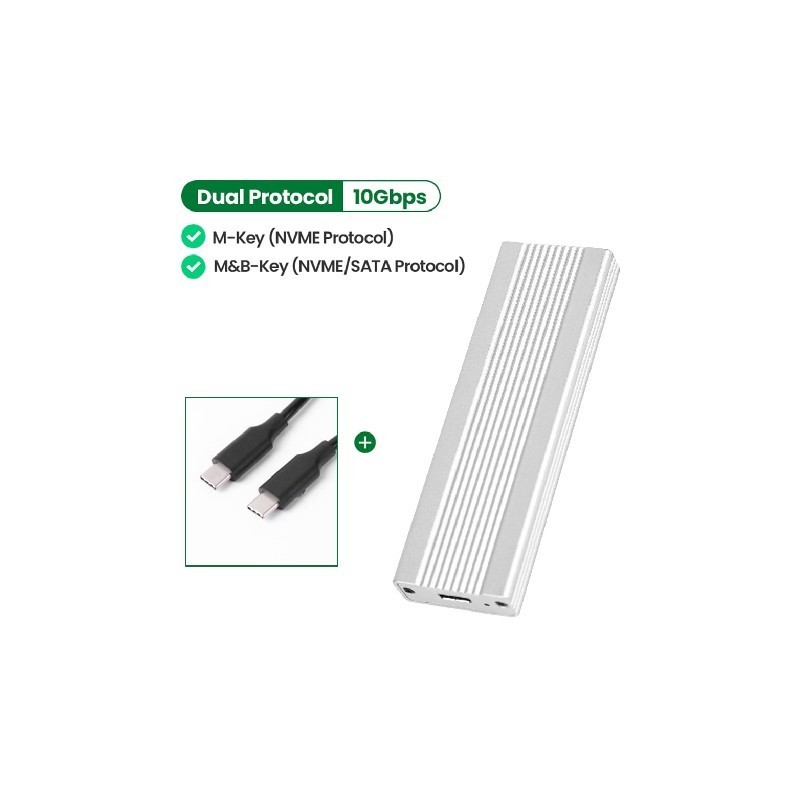

1. Dual protocol 10Gbps:
Support NVME PCIe M-Key/ M&B-Key SSD and NGFF SATA protocol B M Key SSD, with 26cm USB Type C to Type C cable and 26cm USB Type A to Type C cable, optional.
2. Single protocol 5Gbps:
Supports NGFF protocol B-Key/B M Key SSD with 26cm USB Type A to Type C cable.
Note:
1. The NGFF protocol is not compatible with the NVMe protocol SSD and vice versa. Please confirm your M.2 SSD agreement before ordering, or you can ask our online service for help.
2. Please confirm your M.2 SSD interface before purchasing, the SATA protocol only supports B/B M Key SSD, if you do not confirm your interface, please contact us, thank you for your understanding
3. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
4. Please allow 1-2cm measuring deviation due to manual measurement.
1*M.2 Dual Protocol Hard Disk Enclosure
1*Type-C to USB-A Data Cable (Optional)
1*Type-C to Type-C Data Cable (Optional)
1*Screwdriver
