Szín: kék fény - ZMR alacsony feszültségű figyelmeztető navigációs lámpa LED-es lítium akkumulátor alacsony

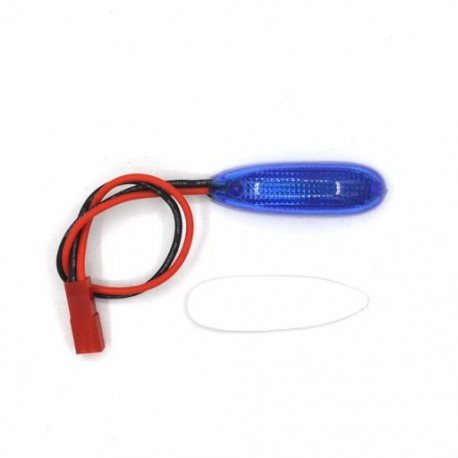

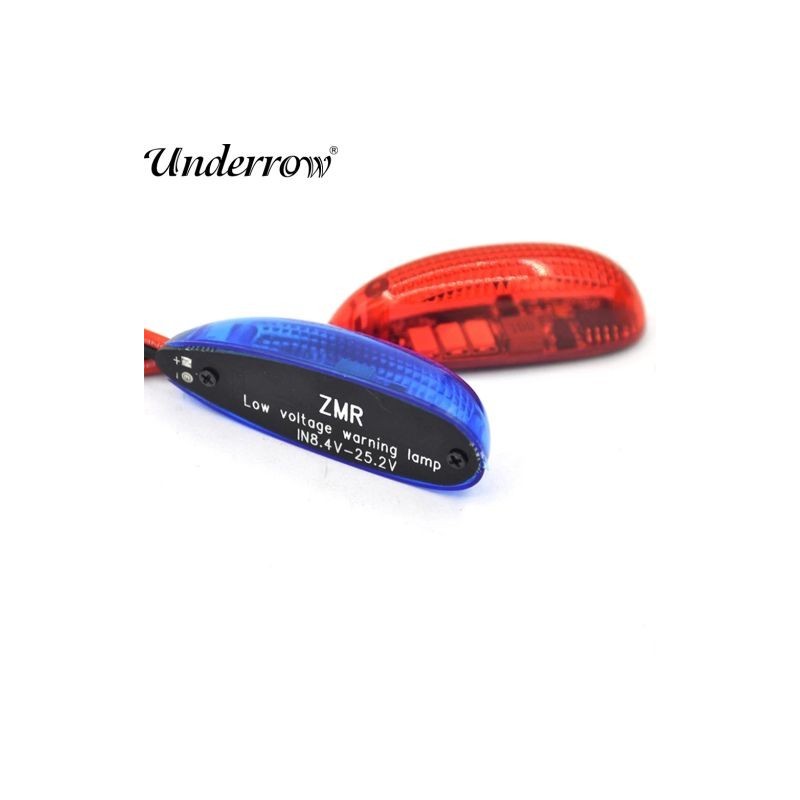

New lithium battery warning light.
Applicable to all equipment using polymer lithium batteries: drones, fixed wings, boats, cars, etc.
When the device battery voltage reaches a low voltage, an alarm will be used in the form of lights to effectively protect the battery and the device.
Features:
1. To prevent confusion with other navigation lights, add blue warning lights
2. Working voltage: 2s-6s Lipo
3. Cable length: 25CM
4. After power-on, the battery voltage is automatically detected, and the light flashes to indicate the number of lithium batteries.
5. Set the secondary alarm,
When the single chip voltage 3.6V----slow flash
When the monolithic voltage 3.5V----quickly flash
6. When the battery voltage is extremely low, or the monolithic battery voltage is not in the working range, show the breathing light flashes.
Non-working range: -0.5V≤ min--(XS)--max ≤ 0.5V
For example: when the voltage of the single-chip battery is below 3.7V, the alarm light is connected at this time, show the breathing light flashes.
7, with anti-reverse connection function
Note:
Initially is JST plug. If your battery does not have JST plug, you need to buy a transfer plug that matches the battery
