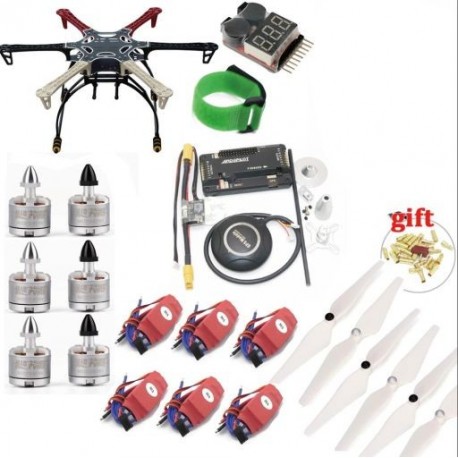

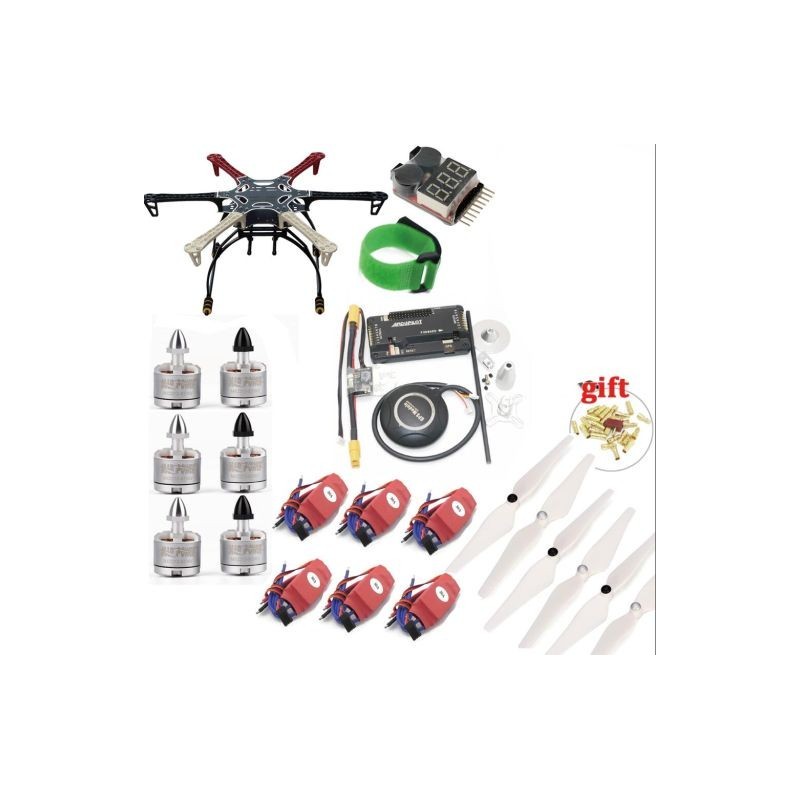

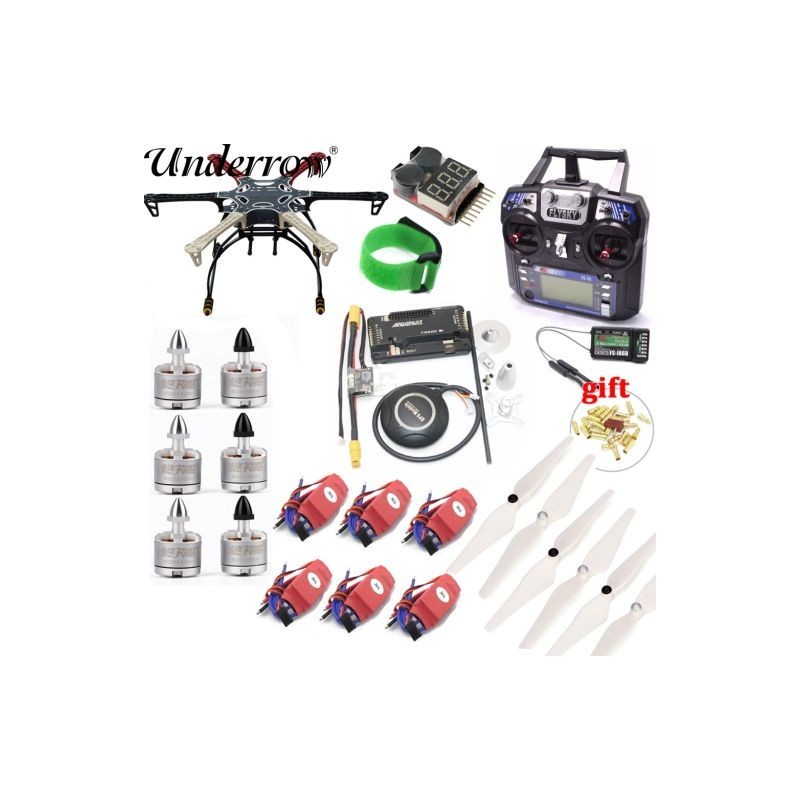

Szín: F550 Nem FS-I6 IA6B - F550 Quadcopter Frame Kit APM2.8 Vezérlőkártyával 7M GPS 2212 920KV cw/ccw 30A SimonK ESC

Built from quality glass fiber and polyamide nylon.
Integrated PCB
connections for direct soldering of your ESCs
Pre-threaded brass sleeves for
all of the frame bolts.
Colored arms for orientation to keep you flying in
the right direction.
Large mounting tabs on main frame bottom plate for easy
camera mounting.
Easy assembly.
Specs:
Width: 450mm
Height:
55mm
Weight: 280g (w/out electronics)
Motor Mount Bolt Holes:
16/19mm
G.Weight: 395g
Wheelbase: 17.7in/450mm
Net weight:
272g
APM V2.8.0 description:
- This version eliminates the 1.0mm
6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C
external compass interface.
- Put DF13-5P GPS interface with external compass
interface, convenient for the connection of GPS and externalcompass.
- V2.52
I2C interface changes to multifunctional MUX interface
- Modified version
added isolation resistor, when the OSD interface used with telemetry, the
interfaces is effectively avoided
- V2.52 version 3.5V power supply adopts
IPS79133, 6V withstand voltage, output current 100mA, need to supply power for
six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new
version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing
the possibility of Bad Gyro health
APM V2.8.0 Flight Controller
- Needle:
staight
- Power supply: LP2985-3.3
- Max voltage: 16V
- Add a 47uF
tantalum capacitor
- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD
is the defaulted output)
Jumper cap choose:
- Built-in compass: plug the
jumper cap in the MAG pin header.
- External compass: pull up the jumper cap
from the MAG pin header.
