Szín: ELRS 2.4G RF 500mW - iFlight Commando 8 fogantyús rádióadó ELRS 915MHz 500mW/ELRS 2.4GHz 500mW/CC2500 ELRS 915MHz

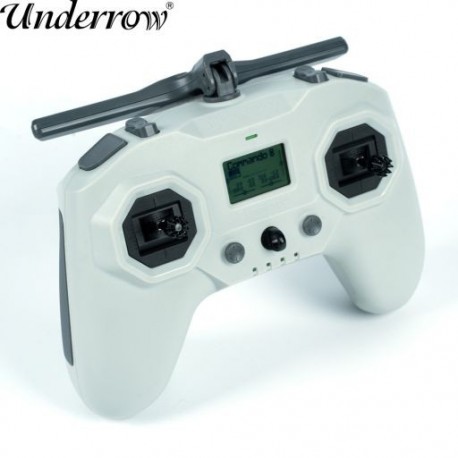

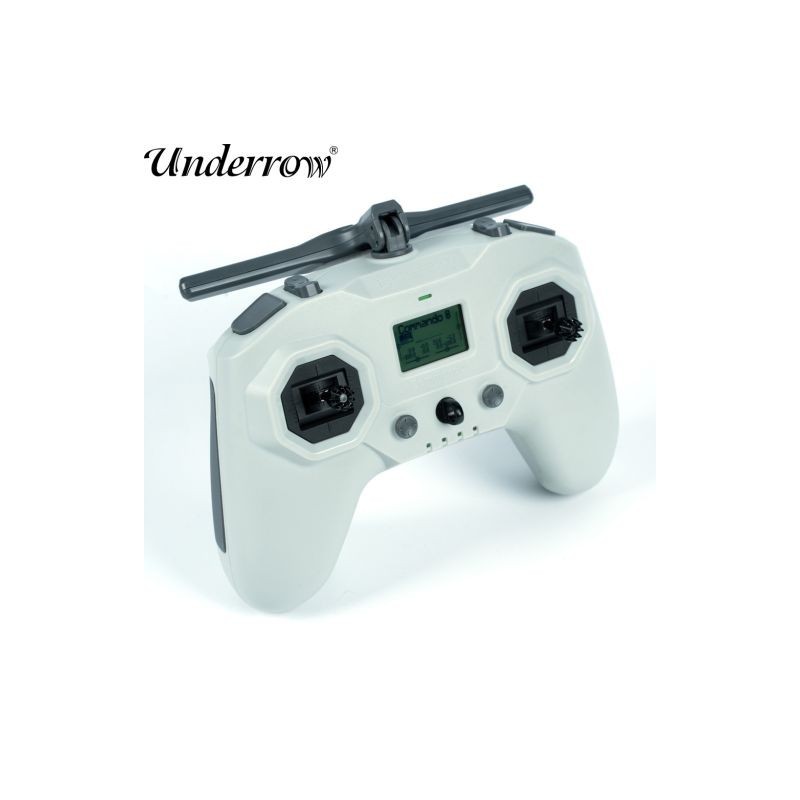

It's finally here, the iFlight Commando 8 with
fully integrated iFlight ExpressLRS hardware! No additional external module
necessary to run ELRS. If you're planning to run another TX module, please
checkout the optional add-on external module bay.
ExpressLRS TX modules developed in close
cooperation with the ExpressLRS Team with firmware targets already released.
Checkout the official ExpressLRS website:https://www.expresslrs.org
Official ExpressLRS Quick Start:https://www.expresslrs.org/2.0/quick-start/getting-started/
Remember this is an Open Source Project and
therefore free to use for everyone. If you want to support the Developers,
please consider donating: https://opencollective.com/expresslrs
HIGHLIGHTS
Internal iFlight ExpressLRS (ELRS) transmitter
(additional fan for cooling)
Market's lowest crystal frequency deviation (low
packet loss, high frequency stability)
Highest quality digital hall sensor gimbals for
maximum precision
High-performance PCB Single and Dual Band
(900/2400MHz) radio antenna
Inbuilt 4000mAh for up to 20h power (2x 2000mAh
18650 batteries)
Stock EdgeTX firmware with pre-installed Lua
scripts
Several Gimbal Stick Ends available (stock 18mm)
PERFORMANCE AND
COMPATIBILITY
Please use iFlight ELRS receivers coupled with
our transmitter for maximum performance! We've probably achieved market's best
crystal frequency stability at a very low frequency deviation (only 11KHz in
total at 51.99976MHz on the crystal). Please checkout this article for further
information https://github.com/ExpressLRS/ExpressLRS/wiki/Crystal-Oscillator-(XO)-Frequency-Error
BAND
OPTIONS
The 900MHz as well as 2400MHz band have
outstanding performance and long range capabilities. If you're not sure what to
get, please checkout the official ELRS Long Range Competition to see what has
been achieved. https://www.expresslrs.org/2.0/info/long-range.
What can I expect? Due to local regulations, the
915MHz FCC region seems to have a better performance than the 868MHz EU region.
The 2400MHz band works great in any region, has a higher packet rate up to
500hz. This is not a common 2400MHz protocol and cannot be compared to anything
prior on the market.
ELRS ONLY OPTION (Single
TX)
Single ELRS option includes 1x ELRS TX module
(please select band) pre-installed in the back of the radio
Cooling fan is inside the flat back cover
Single Band or Dual Band antenna option (for
future upgrades or module changes)
Dual Band antenna option for convenient multi
band use without changing the antenna
ELRS CC2500 MPM OPTION (Dual
TX)
The Dual TX option has two inbuilt transmitter
PCBs
1x
ELRS TX module (please select band) and 1x CC2500 MPM module pre-installed in
the back of the radio
The CC2500 is a 2400MHz Multi Protocol Chipset
for Futaba S-FHSS/Frsky D16/Frsky D8
Both modules can not be activated simultaneously
but are using the same antenna
Dual Band antenna option for convenient multi
band use without changing the antenna
Example Dual Band: 900MHz ELRS CC2500 2400MHz
// Example Single Band: 2400MHz ELRS CC2500 2400MH
The dual TX option has a raised backplate to
make room for the fan
Antenna Options:
Dual-Band (868/915MHz 2.4GHz)
Single-Band (2.4GHz)
Single-Band (868/915MHz)
Button Functionality:
2x
5-axis menu buttons for full OpenTX or EdgeTX control
2x
2-position switches (can be used for arming; not momentary)
2x
3-position switches
RF
Power:
2.4GHz system: SX1280
868/915MHz system: SX1276
ExpressLRS 2.4GHz // Max Output 500mW
ExpressLRS 868/915MHz // Max Output 1000mW
BASE CC2500 2.4GHz Multiprotocol // Max Output
100mW
Radio Channels: 8
Input: Mini High Precision Digital Hall Gimbals
with NMB bearings
Gimbal Stick Ends: Stock length 18mm
Charging: Type-C 20W Quick Charge
Battery: Built-in 4000mAh 1S2P 18650 Battery
Charging Connector: Type-C
Weight:
310g
Package included:
iFlight Commando8 (Please select your option)
2x
18650 Li-Ion batteries included
(pre-installed)
