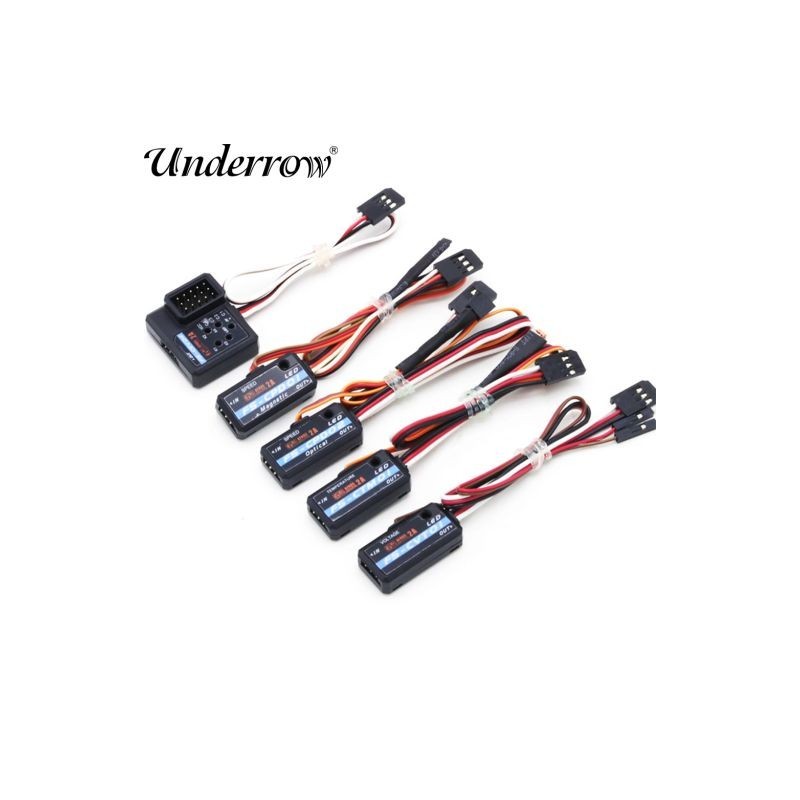

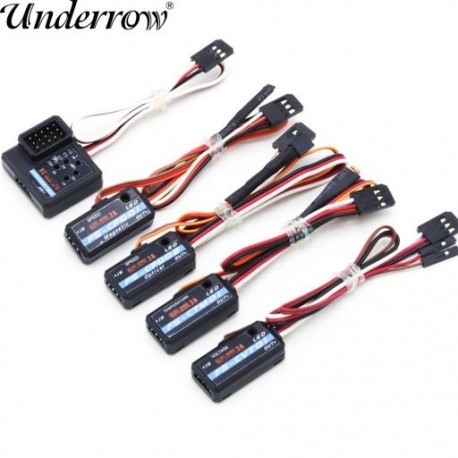

Szín: CTM01 Hőmérséklet se - Flysky feszültség mágneses-optikai érzékelési hőmérséklet adatgyűjtő modul ibus

FS-CPD01 magnetic induction speed acquisition module
Adaptation receiver: iA6B (directly), iA10 (need to use conversion line,
within the module package contains C header)
Suitable models: car / boat / aircraft
Acquisition speed range: 0-60000 rev / min
Weight: 6.6 g
Serial number: 15 (MAX)
Working current: 9mA (TYPE)
Input Power: 4.0-6.5V DC
Dimensions: 31 * 15 * 8 5 mm
Color: Black

FS-CPD02 light sensor speed acquisition module
Adaptation receiver: iA6B (directly), iA10 (need to use conversion line,
within the module package contains C header)
Suitable models: car / boat / aircraft
Acquisition speed range: 0-60000 rev / min
Weight: 6.8 g
Working Current: 30mA (TYPE)
Serial number: 15 (MAX)
Detection distance: 50mm (TYPE)
Input Power: 4.0-6.5V DC
Dimensions: 31 * 15 * 8 5 mm
Color: Black

FS-CTM01 temperature acquisition module
Adaptation receiver: iA6B (directly), iA10 (need to use conversion line,
within the module package contains C header)
Suitable models: car / boat / aircraft
Collecting temperature range: -40 to 250 degrees Celsius
Weight: 5.9 g
Serial number: 15 (MAX)
Working current: 5mA (TYPE)
Input Power: 4.0-6.5V DC
Dimensions: 31 * 15 * 8.5 mm
Color: Black


FS-CVT01 voltage acquisition module
Adaptation receiver: iA6B (directly), iA10 (need to use conversion line,
within the module package contains C header)
Suitable models: car / boat / aircraft
Acquisition voltage range: -100 ~ 100V DC
Accuracy: 0.1V DC
Input Power: 9mA (TYPE)
Number of series: 15 (MAX)
Weight: 6.0 g
Input Power: 4.0-6.5V DC
Detection of anti-anti-function terminal: Yes (reverse will show a negative
value)
Dimensions: 31 * 15 * 8.5 mm
Color: Black

FS-CEV04 serial bus receiver
Adaptation receiver: iA6B (directly), iA10 (need to use conversion line,
within the module package contains C header)
Number of Channels: 4
Suitable models: car / boat / aircraft
Quiescent current: 9MA (TYPE)
Weight: 8.1 g
Input Power: 4.0-6.5V DC
Dimensions: 30 * 25.6 * 13 mm
Color: Black
i-BUS interface: Yes (FUTABA-3PIN * 2.54MM)
