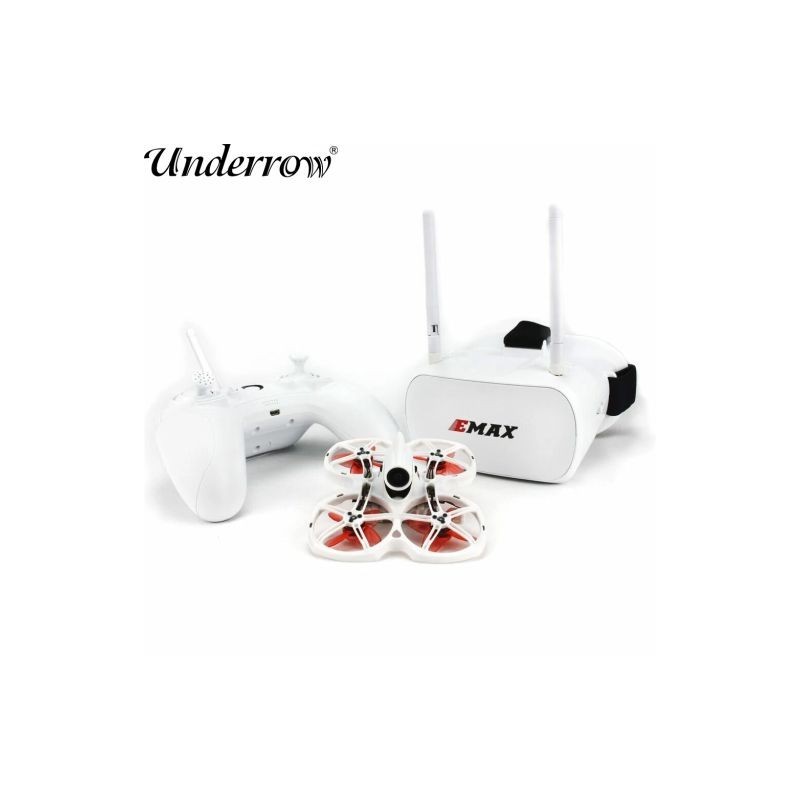

Szín: BNF verzió - EMAX Tinyhawk II 75mm 1-2S Whoop FPV Racing Drone RTF / BNF FrSky D8 Runcam Nano2 Cam 25/100/200mw VTX 5A

Tinyhawk
II RTF Version comes already bound to your radio and on the right video channel
matched with your goggle. Please
work it with user manual on Page 7  Start FPV Flight to operate it.
We strongly recommend that you fly in an
open place, away from crowds and buildings.
User Manual & QA
EMAX Tinyhawk II 75mm 1-2S Whoop FPV Racing
Drone RTF FrSky D8 Runcam Nano2 Cam 25/100/200mw VTX 5A Blheli_S
ESC
BNF version without goggles and radio control,
Click here.
Specification:
Brand name:
EMAX
Item model: Tinyhawk II
Frame

Wheelbase: 75mm
Dry Weight: 31.2g
All Up Weight: 43.5g with 1x 450mAh
1S battery
Frame Material: Polypropylene
Motors

Stator Size: 0802
Kv: 16000kv
Propeller Mount: Push-On Avan
TH-style
Propeller: Avan Turtlemode 4-Blade
All-In-One (AIO) Flight Controller

Flight Controller: F4 (MATEKF411RX Firmware)
ESC: 4-in-1 5A
BlHeli_S
Receiver: EMAX SPI Receiver (Compatible with FrSky D8
mode)
Battery Connector: JST-PH2.0
Camera and VTX

VTX Power: 25/100/200mw Switchable
Channels: 37CH incl.
Raceband
Camera: RunCam Nano 2 1/3"
700TVL CMOS
Smart Audio Connected
Goggles

EMAX Transporter Goggles Specifications:
Maximum appearance size 140×153×90(mm)
Weight (without battery) 398g
Resolution 480×272
Battery 1 cell 18650 lipo battery
Transmitter

EMAX E6 Transmitter Specifications:
Maximum appearance size 181×213×80(mm)
Weight (without battery) 211g
Number of channels 6 Channels
Transmission frequency 2.4GHz ISM
Band(2400MHz~2483.5MHz)
Output Power 22dbm
Modulation GFSK
Battery 1 cell 18650 lipo
battery
Package
Included:
1x
Tinyhawk II FPV Racing Drone
1x
EMAX Transporter 5.8G FPV Goggles
1x
EMAX Transporter 18650 Goggle Battery Pack w/ USB Charging
1x
EMAX E6 Transmitter
1x
EMAX 450mAh 1S HV Battery
1x
EMAX 300mAh 2S HV Battery
2x
CCW 2x CW Spare Props
1x
1S-2S USB LiPo Charger
1x
Screwdriver Hardware Kit
1x
Micro USB Charging Cable
1x
Faux Carbon Fiber Carrying Case
