Szín: 433 MHz - 315MHz 433Mhz vezeték nélküli távirányító áramkör univerzális kapcsoló AK-RK01S-220-A AC 220V 1CH

A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

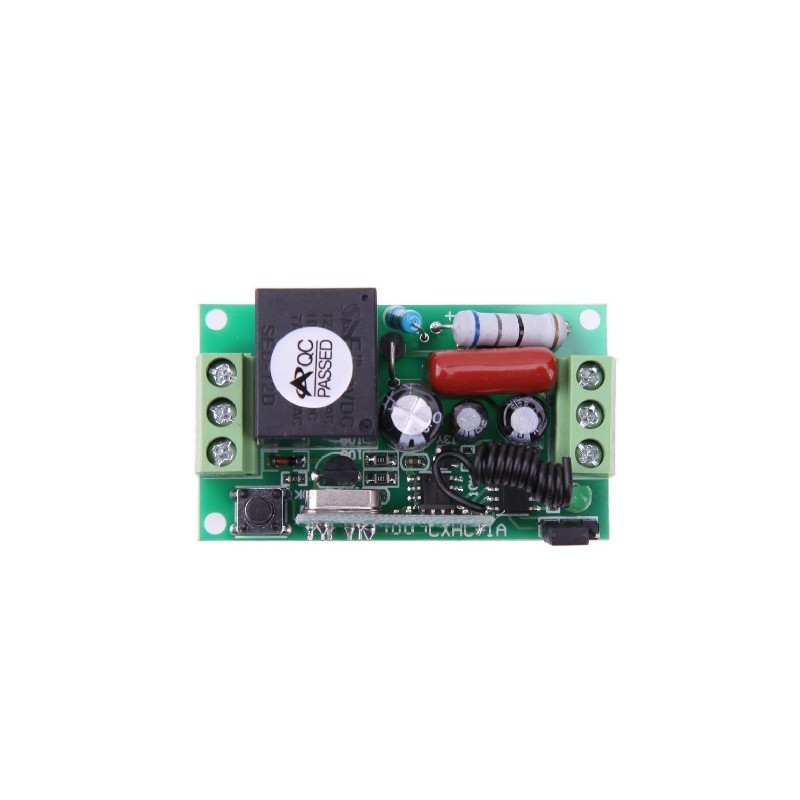

315MHz 433Mhz vezeték nélküli távirányító áramkör univerzális kapcsoló AK-RK01S-220-A AC 220V 1CH relé vevő és távvezérlő adó
315MHz 433Mhz Wireless Remote Control Circuit Universal Switch AK-RK01S-220-A AC 220V 1CH Relay Receiver and Keyfob Transmitter
Feature:
100% new and high quality
Safe and flexible for recovery operation
Durable and stable for long time use
Widely used in garage doors, electric shutter doors, telescopic doors
Application: Remote control, remote measurement and remote sensing, anti-theft alarm signal receiving and various remote controls for home-appliances
Specified as preferred components in remote control garage, roller curtain, door locks, remote sensing, telemetry, industrial control and wireless security alarm industry
Description:
Weight: 80g
Model: AK-RK01S-220-A
Frequency: 315MHz, 433MHz
Working voltage: AC220V
Channel: 1CH
Receiver sensitivity: -105dB
Max. load: 1500W
Working temperature : -10℃~ 60℃
Output way: Momentary toggle latched adjustable
Working way: Self-lock, Jog, Inter-lock
Code type: Learning code
Size: 50mm*30mm*18mm
How to use:
1. Learning method:
Press the learning button3 seconds, the indicator light off, then you press any buttons of the remote control to transmite signal. It means studying successfully when the indicator flash 3 times until the indicator light on.
2. Removing method:
Press the learning button about 8 seconds, the indicator will be off to on , it means the information that you keep have been removed successfully.
3. Working/output way:
Jog/Non-Latched: Pressing one button is working /ON. Loosening your finger on the same button is stop/OFF. One channel switch need one buttons remote control
Self -lock/Self-Latched: Pressing one button for one time is working/ON. Pressing the same button again is stop/OFF.(One channel switch need one buttons remote control
Inter-lock/Latched: Press one button is working/ON, and Press another button is stop/OFF. (One channel switch need 2 buttons remote control)

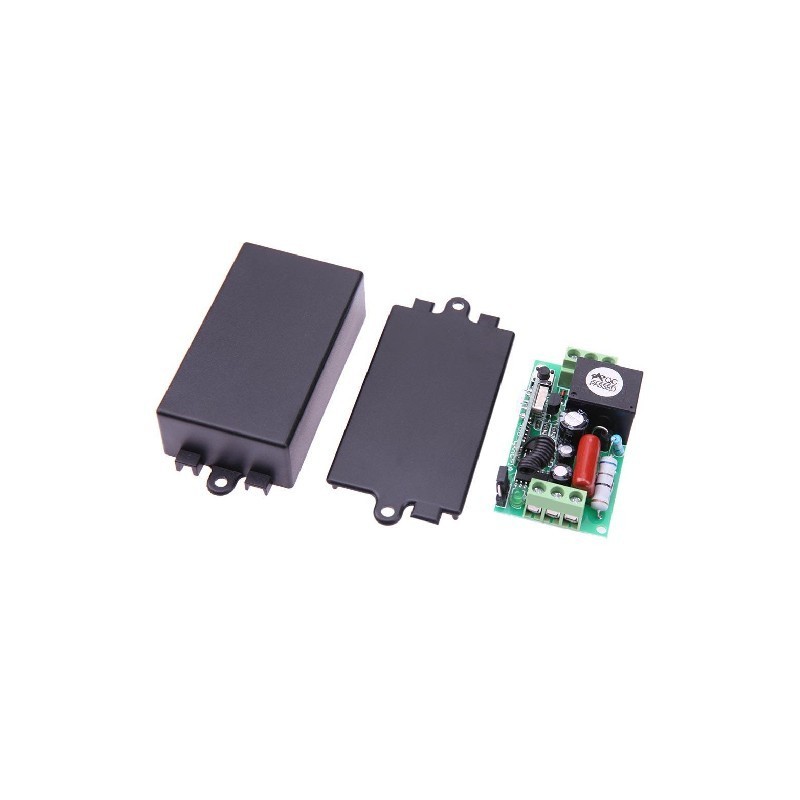

1 x Remote Control Switch
