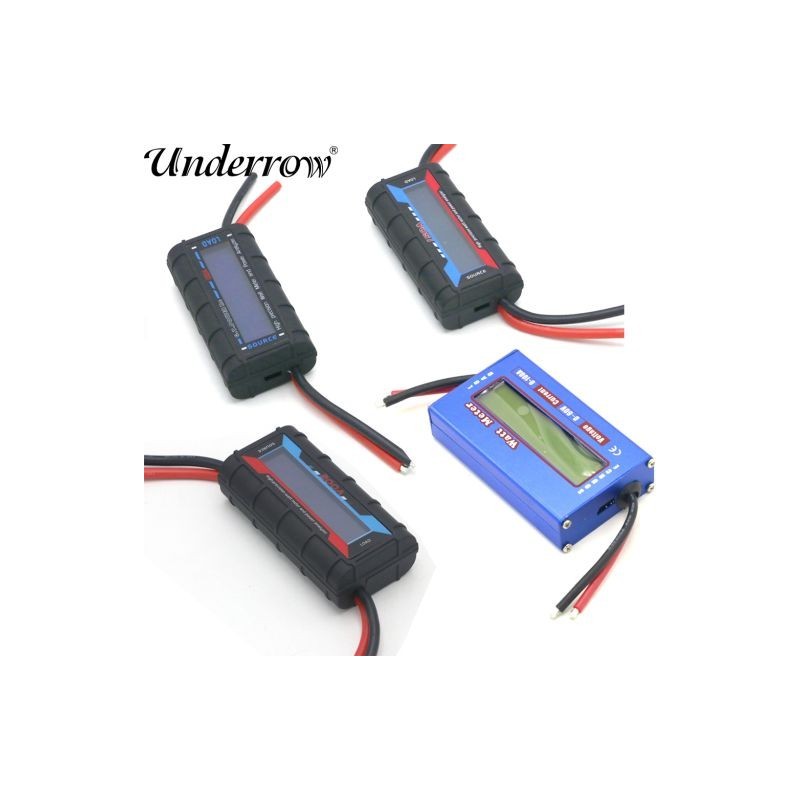

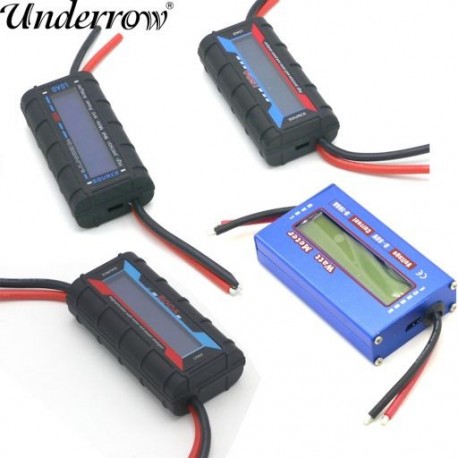

Szín: 150A Doboz nélkül - RC 100A 130A 150A 200A nagy pontosságú wattméteres háttérvilágítású LCD

100A:
Color:Blue
Voltage:(0)V-4V-60V 0.01V (Resolution).
Current:0-100 A peak 0.01A (Resolution).
Power:0-6554 W 0.1W (Resolution).
Charge:0-65 Ah 0.001Ah (Resolution).
Energy:0-6554 wh 0.1 Wh (Resolution).
Measurement Update period:400mS.
Signal Sampling Rate:sample/s.
Data Queue Sequence time: 2 seconds.
In Circuit Resistance:0.001 Ohms.
Operation Current: 7 mA.
Auxiliary Power Voltage: 4.0V ~ 60V
Size:8.3cm x 4.7cm x 2cm - 3.27inch x 1.85inch x 0.79inch
Display Screen: 1602 STN LCD

130A:

Rc watt meter and power analyzer
Operates from 6.5v to 60V
0 V with optional auxiliary battery
Measures 0 to 130A, resolution 0.01A;
0 to 60V, resolution 0.01A
0 to 6554W, resolution 0.1W
0 to 65 Ah, resolution 0.001 Ah;
0 to 6554 Wh, resolution 0.1 Wh.
16 x 2, backlit LCD display
Dimension: 85 x 42 x 25 mm
Weight: 82g
150A:

Operates voltage: 4.8V-60V
OV with optional auxiliary battery
Dimension (L*W*T): 8.3 x 4.2 x2.4cm/3.27"x1.65"x0.94"(approx)
Measures:
0-150A, resolution 0.01A;
0-60V, resolution 0.01v;
0-6554W, resolution 0.1w;
0-65Ah,resolution 0.001An;
0-6441Wh,resolution 0.1Wh;
backlit LCD display

200A:
Current: 0-200A
Resolution 0.01A
Continuous current 50A
Voltage: 0-60V
Resolution 0.01V
Capacity accumulation function: 0-65AH
Power accumulation function: 0-6554WH
