Robotdyn Nano V3 Atmega328 / Ch340G, mikro-usb, nem forrasztott tűs fejlécek, Com H3A1

Robotdyn Nano V3 Atmega328/Ch340G, Micro-Usb, Pin Headers Not Soldered, Com H3A1

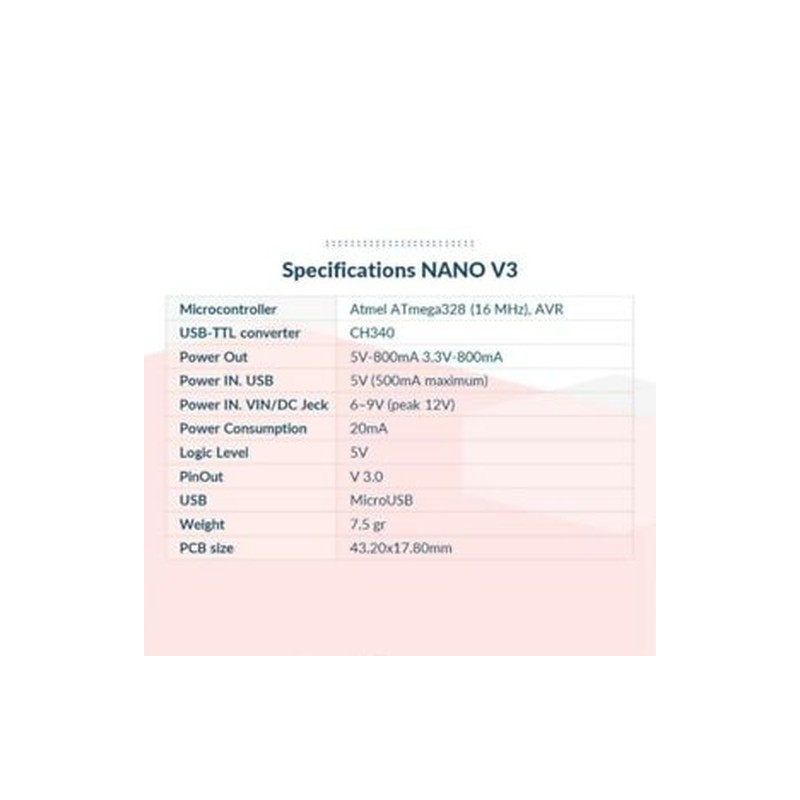

Brand Name:RobotDyn
Model Number:NANO-V3-ATmega328/CH340
Condition:New
Application:AVR
Type:Microcontroller
USB:Micro-USB
USB-TTL converter:CH340G
Microcontroller:Atmel ATmega328
Power Out:5V-800mA 3.3V-800mA
Pin Out:V 3.0

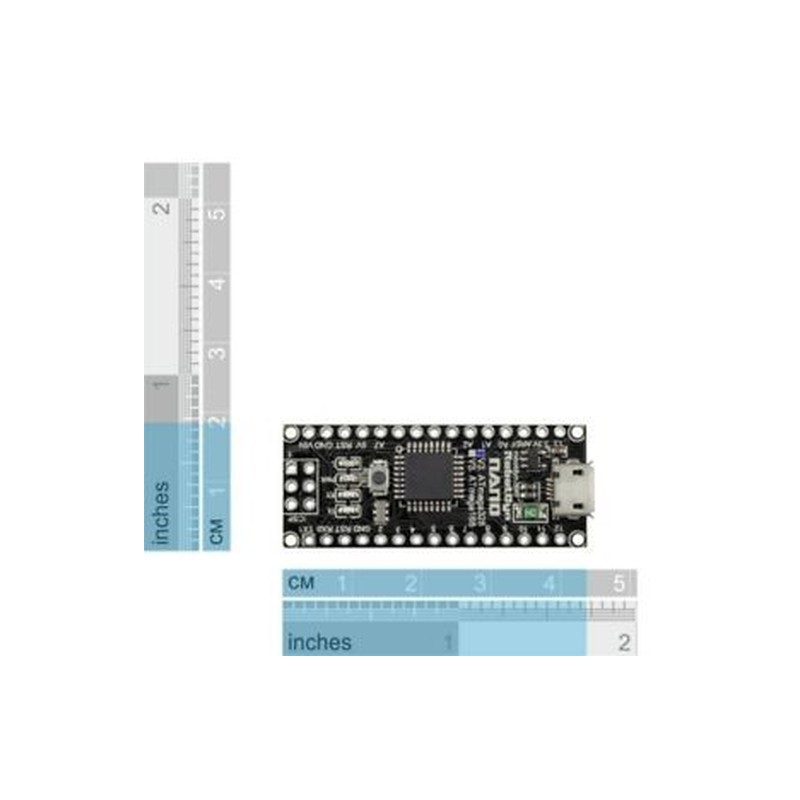

Nano V3 constructed on the ATmega328 microcontroller (16MHz) has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure with Arduino Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB.
The board uses a chip CH340G as converter UART-USB. Chip CH340G - is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction).
Nano V3, can be powered via microUSB-port (up to 500mA). On board have fuser for 500mA for save from SUB-port. External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.

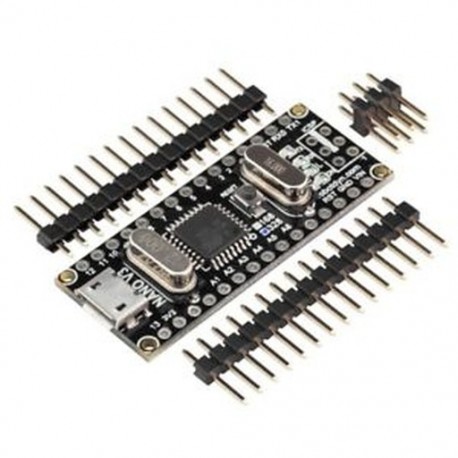

Pin headers not soldered. Pin headers in set.
In Arduino IDE - Board = Nano, Processor = ATmega328.
colour:black
Material:Plastic metal
size:6*10*2CM
Package Contents:
1 * Nano V3 ATmega328 board
