DIY RADIO 40M CW rövidhullámú távadó QRP Pixie Kit vevő 7.023-7.026MHz

DIY RADIO 40M CW Shortwave Transmitter QRP Pixie Kit Receiver 7.023-7.026MHz
This kit is a classic low-power transceivers.This is a very small volume of simple 40 meter band micro-power amplitude telegraph transceiver uses a 9V square battery.
The reception is good, highly readable code, is the entry of the most junior amateur radio choice! Technical parameters:
Power supply: DC 9V-14V
Antenna: 50 ohm, unbalanced
Receive quiescent current: 10mA @ 9V
Transmit power: 0.8W @ 9V, 1.2W @ 12V
Frequency range: launch 7.023MHz, receive 7.023-7.026MHz (7.023MHz crystal)
Mode: CWShell selection and installation:
Beautiful metal case not only for item considerably, and can effectively shield nearby interference.There are many optional shell,
for example, metal cans, aluminum boxes, medical elongated aluminum box andso on.
Select the box in time topay attention as easy to open, because the battery ran out and need replacing.Recommendations:
The confidential achieve better results,set the antenna performance can not be less than the full length of the horizontal half-wave dipole antenna,in conjunction with the use of Simple Barron, antennas should be kept away from sources of interference,
such as fluorescent lights, computer monitors, switching power suppliesand other equipment as much as possible with the coaxial cable as feeders to reduce possible interference received,
as a small selection of the broadcast interference morning
or late at night listening to get the best results listen to SSB and CW signals signal.
The default shipping for spare parts kit.
Package Included:

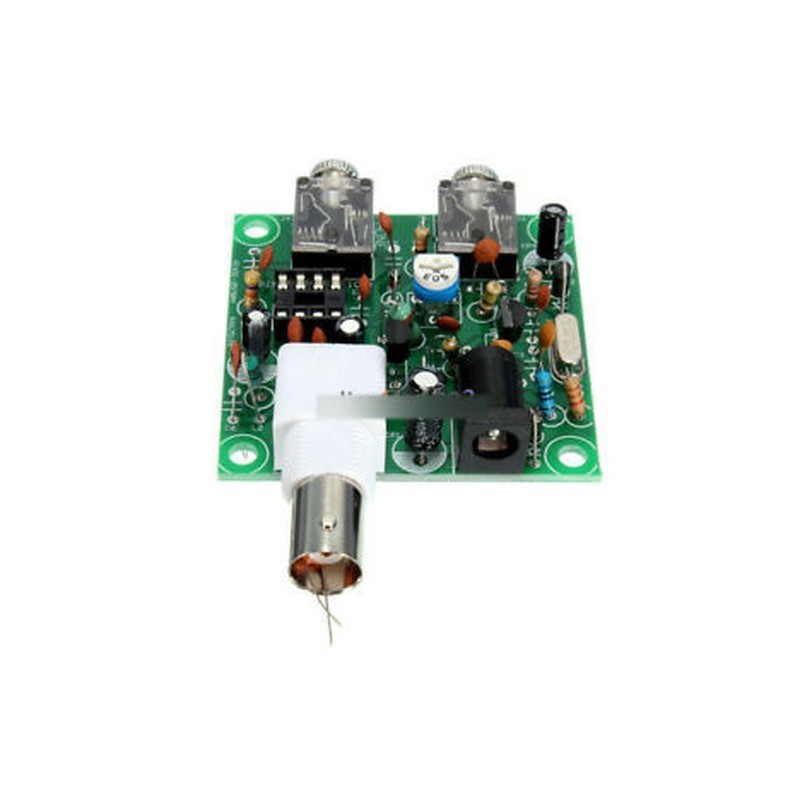

1 x DIY RADIO 40M CW Shortwave Transmitter QRP Pixie Kit Receiver 7.023-7.026MHz (same as we show in second photo)
