Mini-hőmérséklet szabályozó STC-1000 digitális többfunkciós hőmérséklet-szabályozó termosztát érzékelővel

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

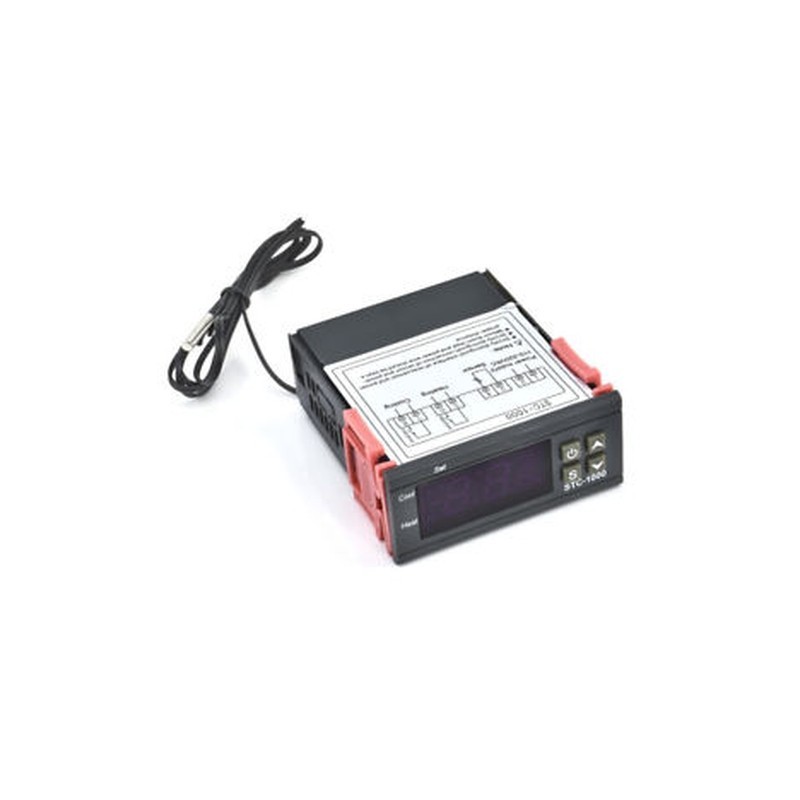

STC-1000 Digital All-Purpose Temperature Controller Thermostat With Sensor New
Description:
100% Brand new and high quality
Quantity:1pcs
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier,
steamer, industrial equipments and other temperature-controlled systems.
Specifications:
Temperature control range: -50 ~ 110 ° C
Resolution: -9.9 to 99.9 is 0.1° C , 1 ° C temperature ranges other
Measurement Accuracy: 0.1 ° C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5 S
High temperature protection: 0 ~ 110 ° C
Input Power: 110-220V
Measuring inputs: NTC (10K 0.5% ) Waterproof sensor
Output:10 a relay all the way
Environmental requirements: -10 ~ 60 ℃ Humidity 20% -85%
Power consumption: Static current:<=35MA, Attract current:<=65MA
Easy and convenient to use
Size: Approx. 48 (L) x 40 (W) x 14 (D) mm
Total weight:20 g
Package weight:30 g
Parameter Function:
Long press SET 5 seconds to enter the main menu settings, press the - toggle P0 ... P8 long press
SET or 10 seconds of no key activity confirmed their return to the controller
Code Code Description Setting range Factory setting
P0 Cooling /Heating C/H C
P1 Hysteresis setting 0.5-15 2
P2 Highest setting upper limit 110 110
P3 Lowest setting upper limit -50 -50
P4 Temperature correction -7-7℃ 0
P5 Delay start time 0-10 Minutes 0
P6 High temperature alarm 0-110℃ OFF
Package Includes:
1 x Temperature Control Switch
1 x Temp sensor
