Lc100-A Digitális lcd nagy pontosságú indukciós kapacitás L / C mérő Capacit D1I1

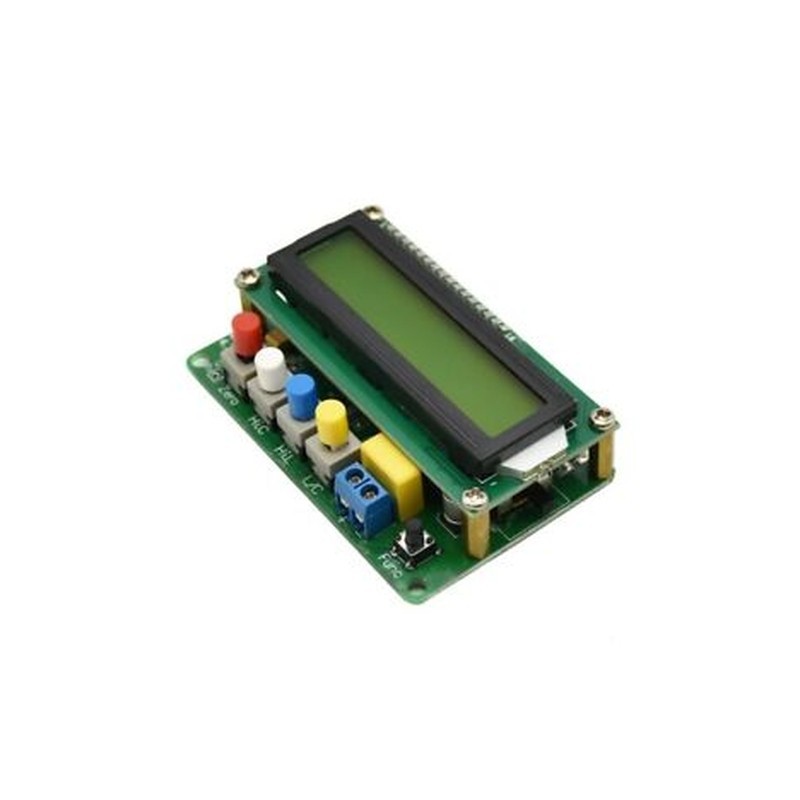

Lc100-A Digital Lcd High Precision Inductance Capacitance L/C Meter Capacit D1I1

Model: LC100-A
Supply power: 5v ,mini USB interface
Measurement accuracy: 1%
Capacitance measuring range: 0.01 pF - 10uF (The minimum resolution: 0.01 pF )
Inductance measuring range: 0.001 uH - 100mH
Big inductance measuring range: 0.001 mH - 100H (The minimum resolution: 0.001uH )
Test frequency range: L/C about 500KHZ/Big inductance 500HZ
Effective display digits: 4 digits
LCD display mode: 1602
Note: When measuring the frequency of the inductance or Capacitance, please press the black button,
as the PIC shows.
Please reset to zero, before testing a Capacitance or inductance, or it may damage the board.
If the result on the LCD is not stable,it s normal due to the poor quality of L/C.
colour:green
Material:Metal PC
Package Contents:
1 * High Precision L/C Meter Board
1 * Mini usb power cable
