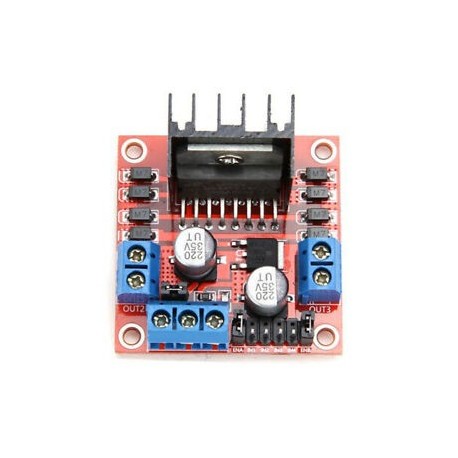

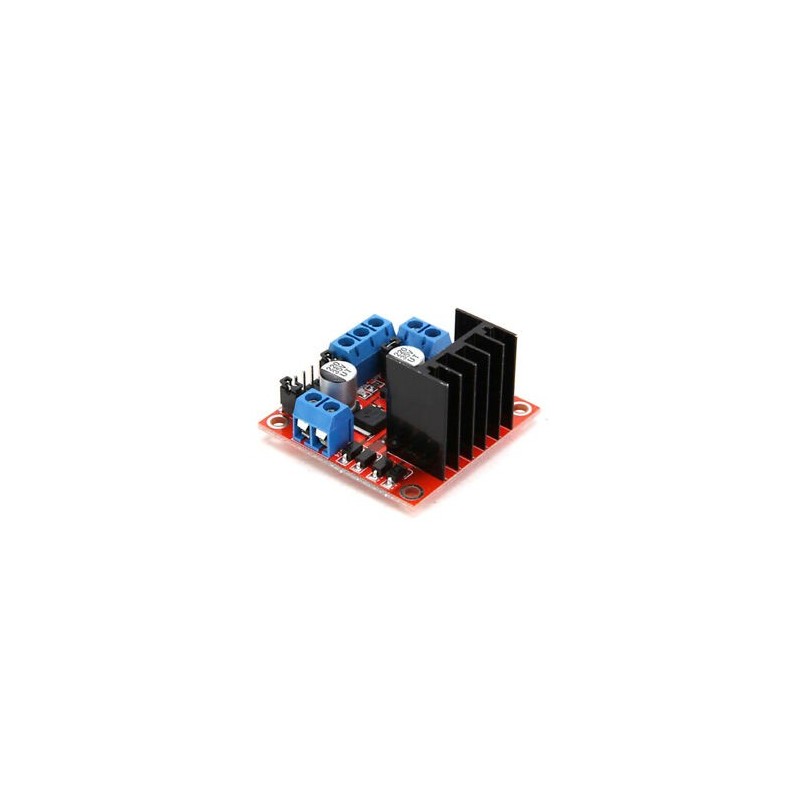

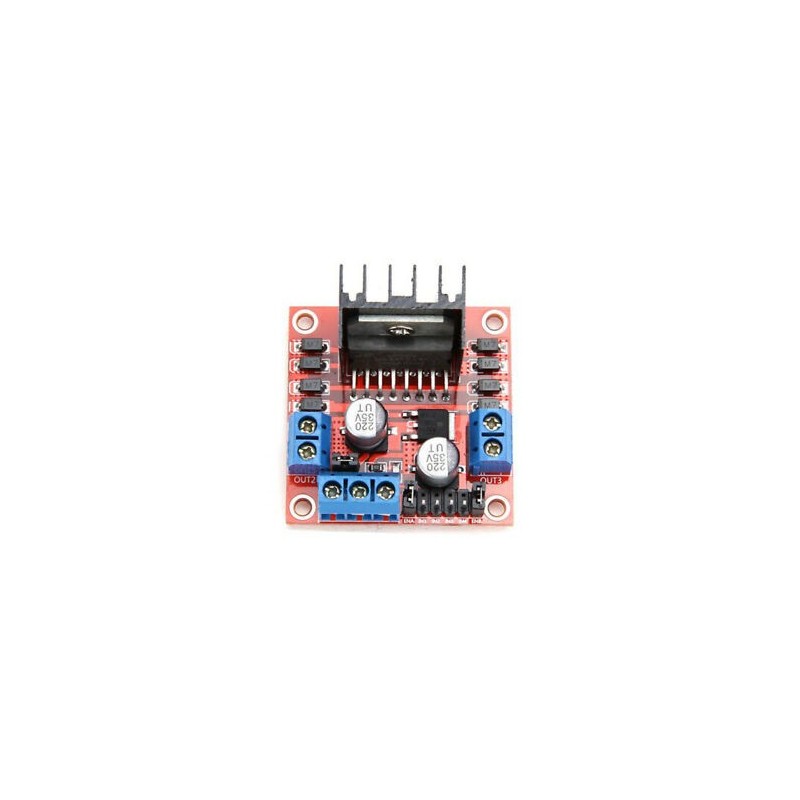

L298N Dual H Bridge DC léptetőmotoros meghajtó vezérlőlap modul az Ardu O2A2-hez

L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module for Ardu O2A2

Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V; Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A (MAX single bridge)
Color: Red
Material: PCB board plastic
Storage temperature: -20 to 135 Celsius
Max power: 25W
Weight: 30g
Size: 43 x 43 x 27 mm
Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to 5v supply interface, however led out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4
Note: Package is not included the screws.
Package included:
1 x L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module arduino
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3 cm.
