Kézi bevonat vastagságmérő 0-1300um festékréteg, fémfestés A0A8

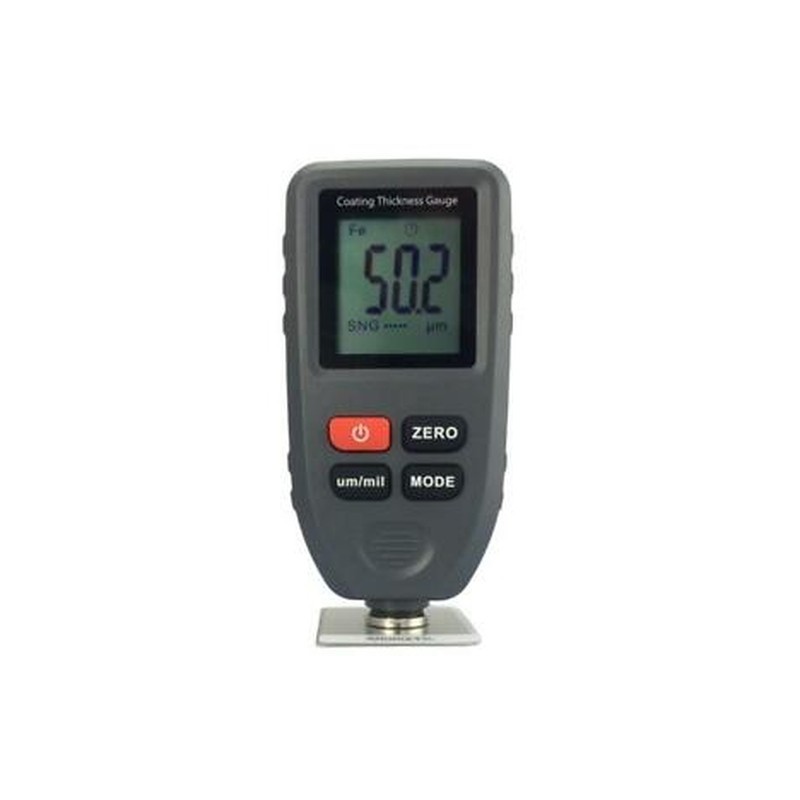

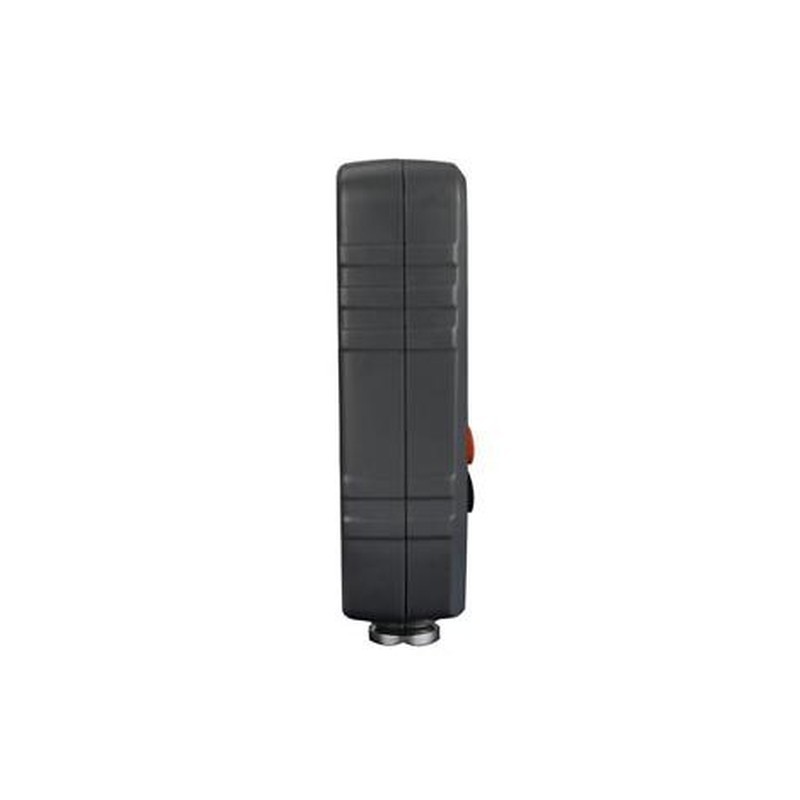

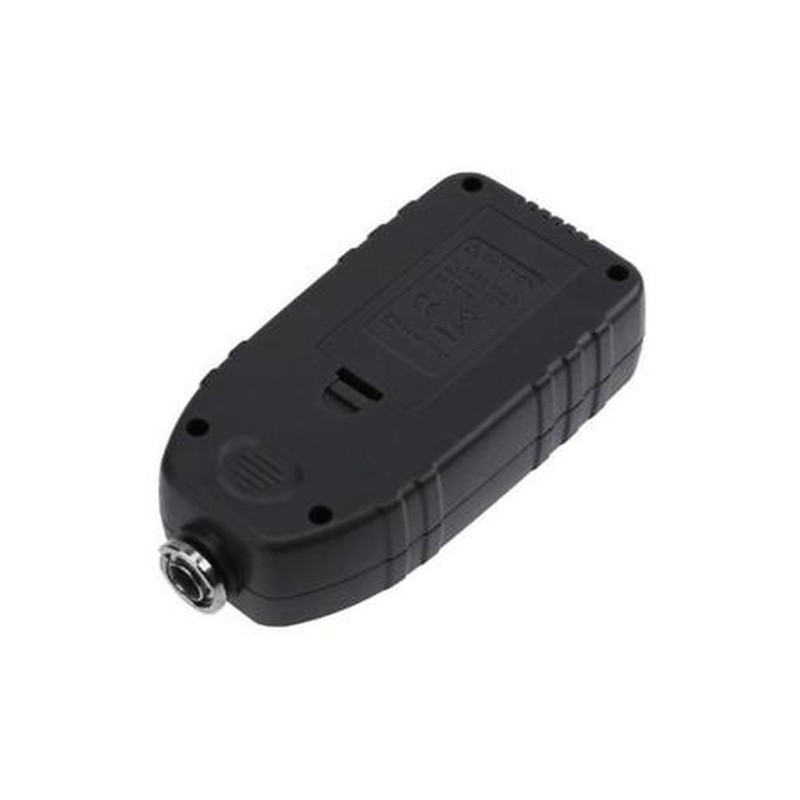

Handheld Coating Thickness Gauge 0-1300um Paint Film Painting Metal Surface A0A8

The thickness meter is used to measure the thickness of electroplating or coating on the metal surface.
It can measure the thickness of non-magnetic coating on the surface of steel / iron and other magnetic materials, such as chromium / paint / ceramic, etc.
It can also be used to measure the thickness of the coating on the surface of non magnetic materials, such as copper / aluminum, such as paint, etc.
Built-in precision probe, through electromagnetic induction and eddy current effect, the properties of the substrate are automatically detected and the coating thickness is detected.
Fe probe (Fe-base):
Principle: electromagnetic induction
Measurement range: 0~1300um
Precision: /-3% 2um
Resolution: 0.1um
Calibration: zero calibration / multipoint calibration
Unit: Um mm /mil mil
Radius of curvature of the minimum convex surface: 1.5mm
Minimum concave curvature radius: 25mm
Minimum measured area diameter: 6mm
Minimum base material thickness: 0.5mm
Power supply: 9V battery(Not included)
Operating temperature: 0~40 Celsius (32~104 Fahrenheit )
Operating humidity: 20% ~90% RH No strong magnetic field
Weight: approx. 100g
color: gray
Material: ABS
Size: 130*62*32mm
Package Contents:
1 x Paint Coating Instrument Thickness Gauge Tester
1 x User Manual
2 x substrates
5 x standard foils
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
