Kettős digitális F / C PID hőmérsékletszabályozó a K C7K N5T8 hőelemmel

Dual Digital F / C PID Temperature Controller with K Thermocouple C7K N5T8

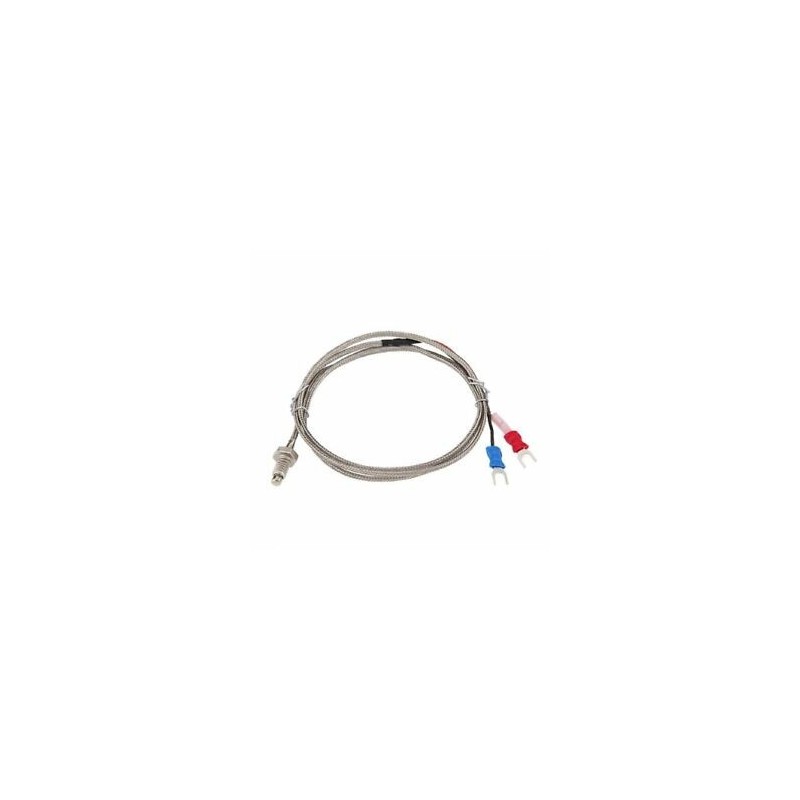

Color : Black; Cable Length: 1M; Sensor diameter: 4.5mm
Internal Insulation: Fiberglass
External Shielding: Insulated Shielding
Dimensions: 48mm * 48mm * 110mm (Approx)
Resolution: 14 bits ; Sampling cycle: 0.5 sec
Process value (PV), Setting value (SV)
output, alarm and self-tuning can be Indicated by: LED
PIN control (including ON / OFF, step-type PID and continuous PID)
Self-tuning control
SSR output: contact capacity 250V AC 3A (resistive load)
alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
setting value (SV): identical to measuring range ( PV)
proportional tape (P):...
Dual Digital F / C PID Temperature Controller with K Thermocouple PK
Color : Black; Cable Length: 1M; Sensor diameter: 4.5mm
Internal Insulation: Fiberglass
External Shielding: Insulated Shielding
Dimensions: 48mm * 48mm * 110mm (Approx)
Resolution: 14 bits ; Sampling cycle: 0.5 sec
Process value (PV), Setting value (SV)
output, alarm and self-tuning can be Indicated by: LED
PIN control (including ON / OFF, step-type PID and continuous PID)
Self-tuning control
SSR output: contact capacity 250V AC 3A (resistive load)
alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
setting value (SV): identical to measuring range ( PV)
proportional tape (P): 0 ~ full range (ON / OFF control When set to 0)
Detective temperature range: 0 to 400 ℃
Insulation resistance: 1500V AC / min
Power Consumption: 10 VA
service environment: 0 ~ 50 °
environment with no corrosive gas 30 ~ 85% RH
Package list: 1 x Temperature Controller
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /-1-3cm.
