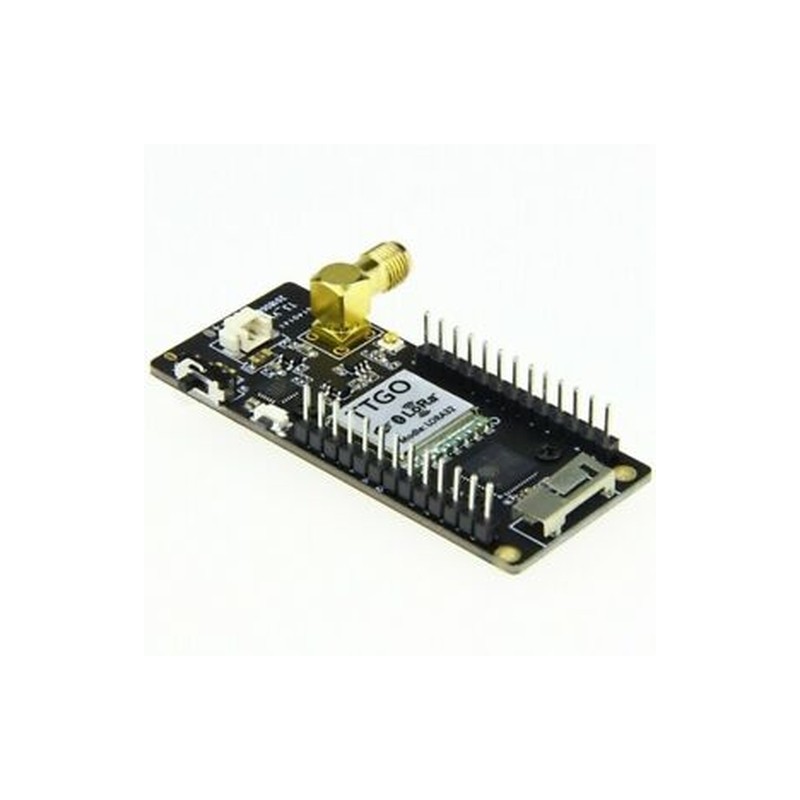

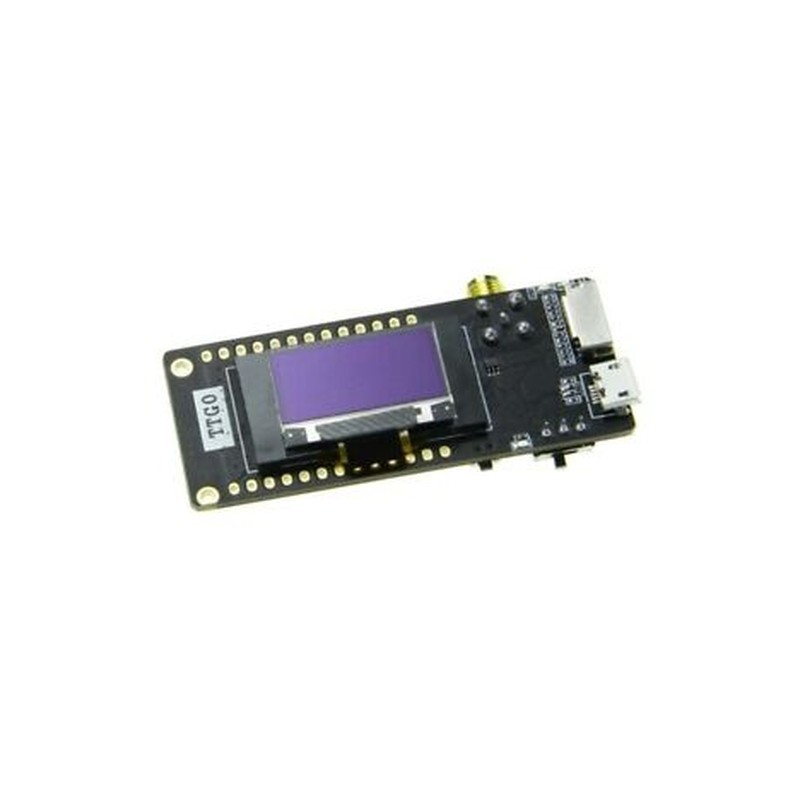

Ttgo Esp32 - Paxcounter Lora32 V2.1_1.6. Változat Lora Esp-32 Oled 0.96 inch L1M2

Ttgo Esp32 - Paxcounter Lora32 V2.1_1.6 Version Lora Esp-32 Oled 0.96 Inch L1M2

Working voltage: 1.8~3.7v
Acceptable current10~14mA
Transmit current: 120mA@ 20dBm
90mA@ 17dBm
29mA@ 13dBm
Colour: Black
Material: metal pc
Operating frequency: 868M
Transmit power: 20dBm
Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error /-15KHz
FIFO space 64Byte
Data rate 1.2K~300Kbps@FSK
0.018K~37.5Kbps@LoRa
Modulation Mode FSK,GFSK,MSK,GMSK,LoRa TM，OOK
Interface form SPI
Sleep current 0.2uA@SLEEP
1.5uA@IDLE
Operating?temperature?-40℃- 85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
RF wake-up function
Fast wake-up and frequency hopping
Highly configurable data packet handler
SMA Antenna
TP4054

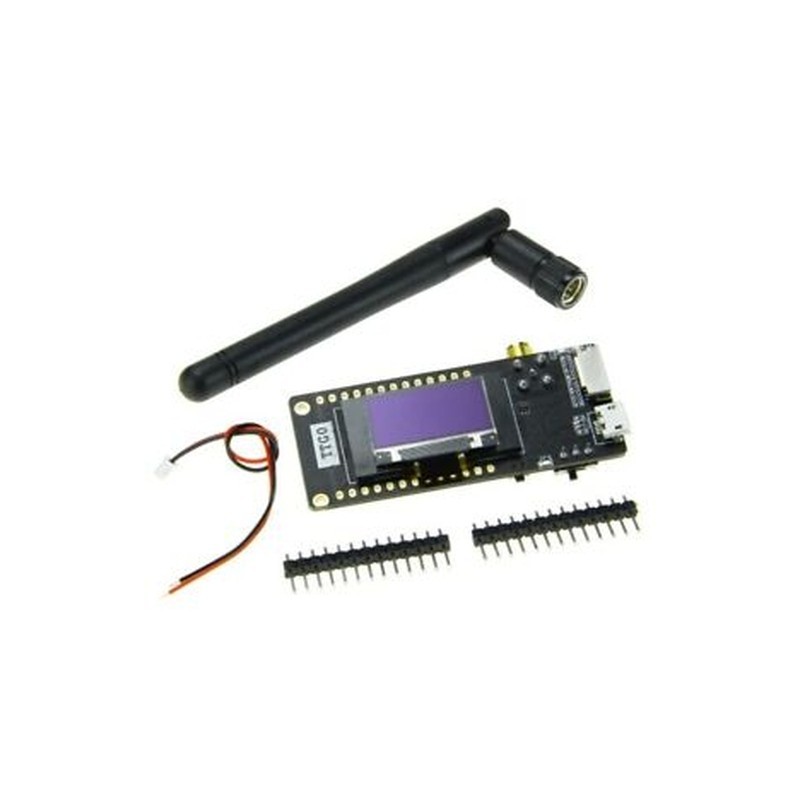

Package Contents:
1 X Module
2 X Pin
1 X Antenna
1 X Power Cable
