Hantek 6022BL PC Digital Portable Oscilloscope Based USB Logic Analyzer 1 S2J4

Great industrial design, the high quality anodized aluminum case is extremely durable and heat-resistant.Standard USBXI(TM) interface, easily inserts into USBXI(TM) housing to make up a combination instrument. USB2.0 interface, no external power source required, easy to use.Be suitable for notebook computer, product line maintenance, be used easily on business. High performance, 48MSa/s real-time sampling, 20MHz bandwidth. 16 channels logic analyzer, 20MHz bandwidth.Operating system: Windows 8, Windows 7, Windows NT, Windows XP ,VISTA. More than 20 kinds of measurement functions, be suitable for technical application. Intensity, invert, addition, subtraction, multiplication, division, X-Y plot. Saves waveform on screen in JPG/BMP, Excel formats. FFT spectral...

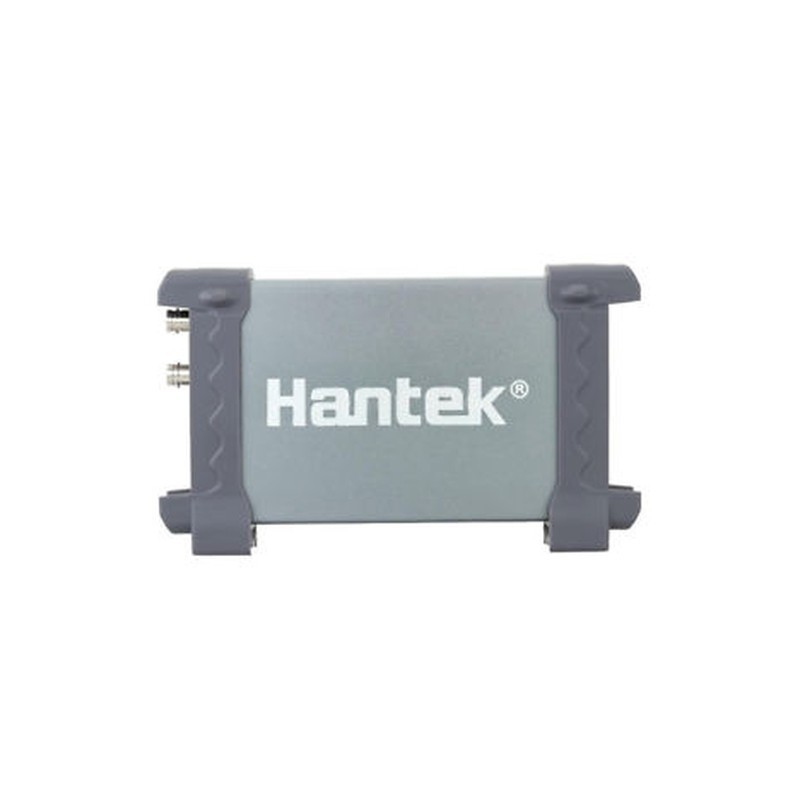

Hantek 6022BL PC Digital Portable Oscilloscope Based USB Logic Analyzer 16CHs
Great industrial design, the high quality anodized aluminum case is extremely durable and heat-resistant.
Standard USBXI(TM) interface, easily inserts into USBXI(TM) housing to make up a combination instrument. USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance, be used easily on business. High performance, 48MSa/s real-time sampling, 20MHz bandwidth. 16 channels logic analyzer, 20MHz bandwidth.
Operating system: Windows 8, Windows 7, Windows NT, Windows XP ,VISTA.
More than 20 kinds of measurement functions, be suitable for technical application. Intensity, invert, addition, subtraction, multiplication, division, X-Y plot. Saves waveform on screen in JPG/BMP, Excel formats. FFT spectral analysis function. One computer can connect many DSO, extend channel easily.
Bandwidth: 20MHz
Channel: 2(Digital) 16(Logic)
Sample Rate: 48MSa/s
Memory Depth :1M
Rise Time : 17.5ns
Time Base Precision: /-50ppm
Time Base Range: 4ns/div-1h/div (Step by1-2-4)
Input Impendence: 1MΩ 25pF
Input Sensitivity: 10mV/div～5V/div
Vertical Resolution: 8Bit
Vertical Position Range: 20mV ~ 5V/div @ x1 probe; 200mV ~ 50V/div @ x10 probe; 2V ~ 500V/div @ x100 probe; 20V ~ 5KV/div @ x1000 probe
DC Accuracy: /-3%
Bandwidth Limited: 20MHz
Trigger Type: Edge, Alternative
Trigger Source: CH1, CH2
Logic Analyzer Features
Channel: 16
Max. Impendance: 1MΩ(C=7.5pF)
Max. Voltage: 0V~5.5V
Max. Sample: 48M
Bandwidth: 10MHz
Compatible Input: TTL, LVTTL, CMOS
Memory Depth: 1M/CH
Power : USB Port
Standard Probe: 2 * PP80
Package List:
1 x Oscilloscope Host
1 x USB Cable
1 x CD
2 x Probes
2 x Bag of Logic Analyzer Probes
2 x Cables
1 x User Manual (English)
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3 cm.
