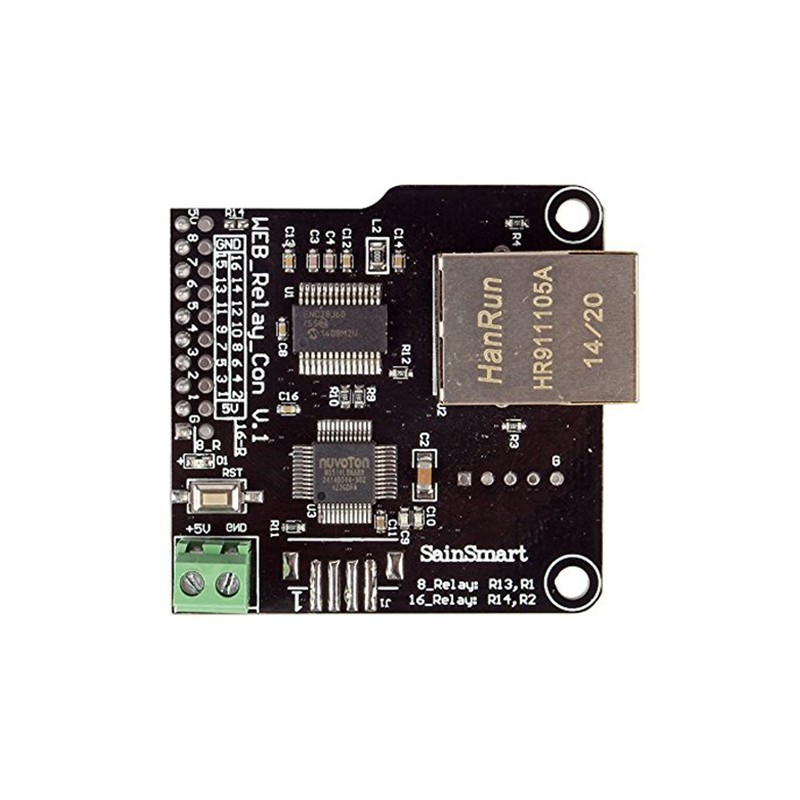

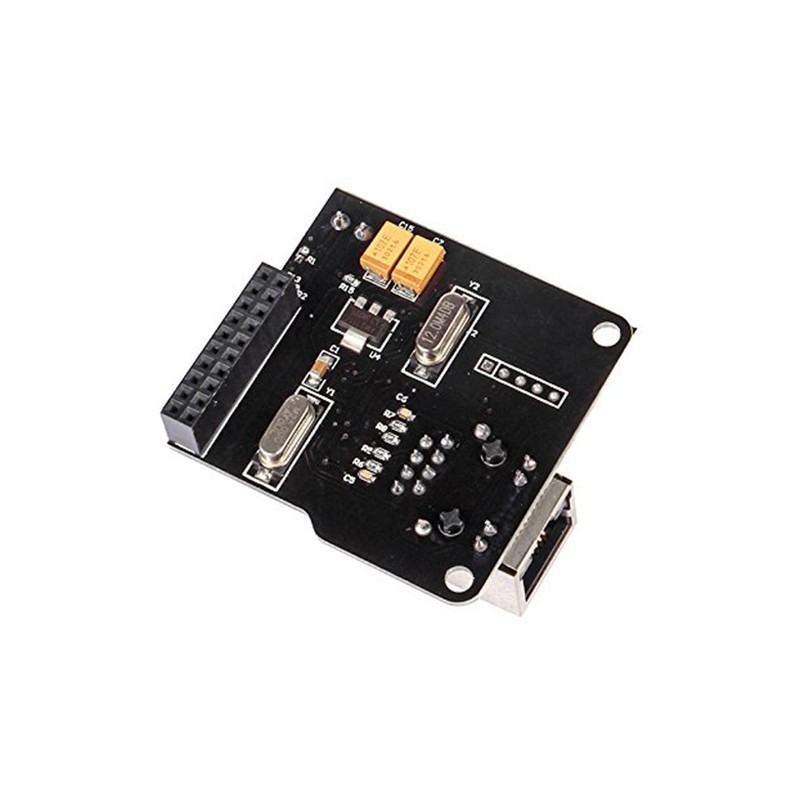

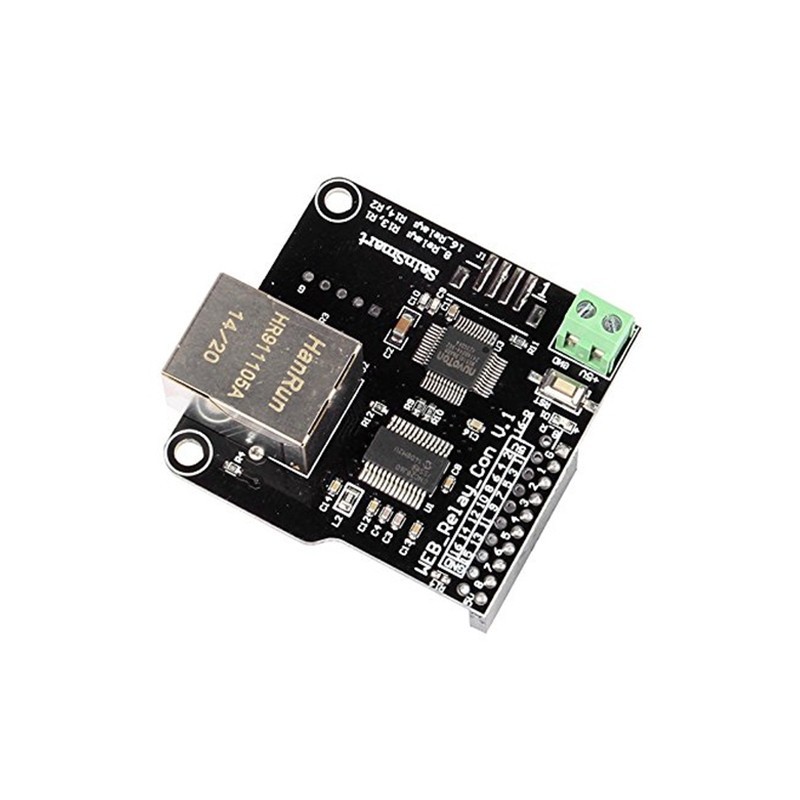

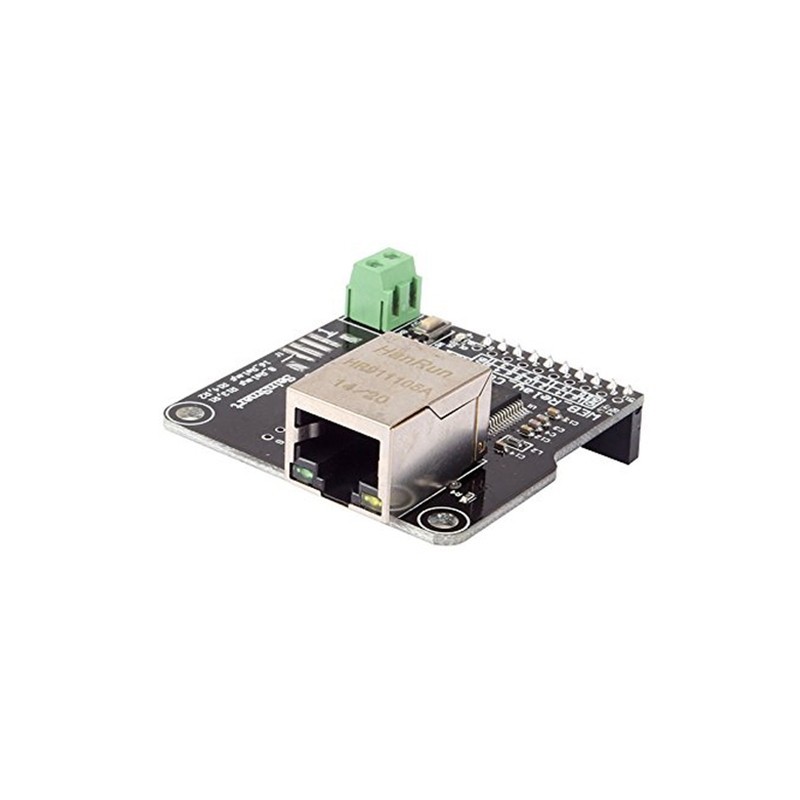

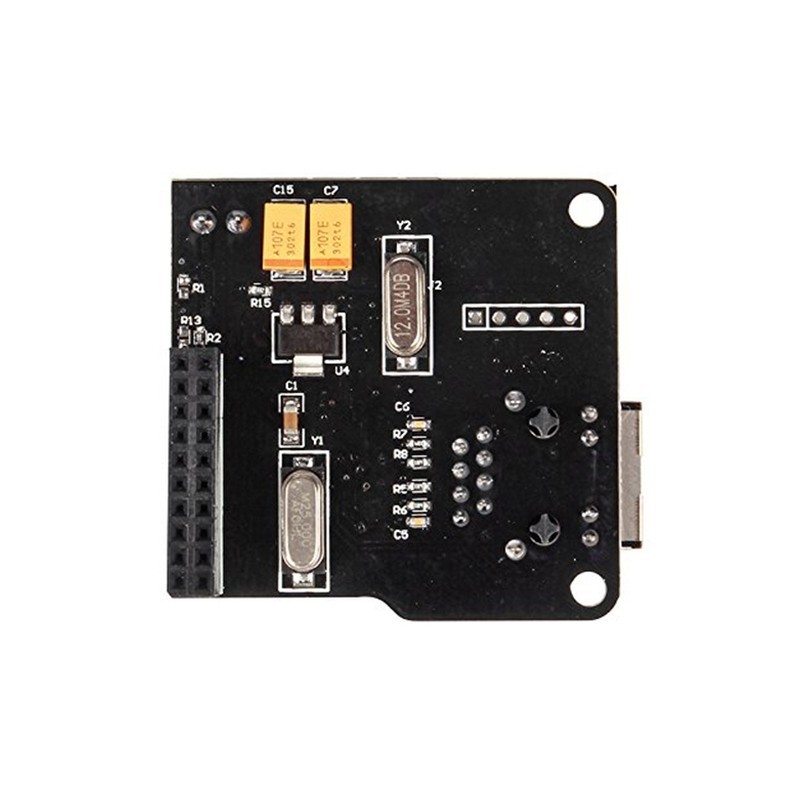

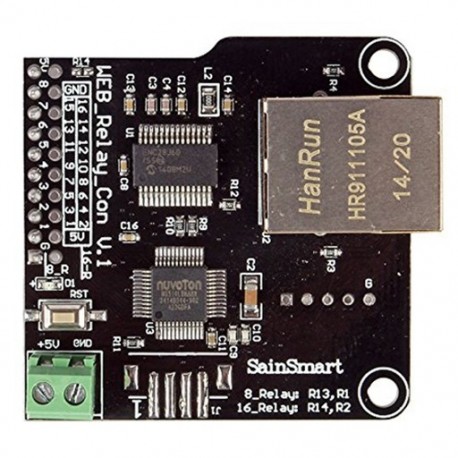

2X (hálózati webkiszolgáló 16 csatornás relé Ethernet vezérlő modul D4D4)

2X(Network Web Server 16 Channels Relay Ethernet Controller Module D4D4)

2X(Control switches remotely together with 16 Channel relay! Support for 16 Channels relay which means you could controll more to 16 different devices at the same time.
RJ45 interface, via RJ45 telecommunications connection for network control.
Unique dual TCP connect control, corresponding with above trait, local as TCP server.
Accept client control, when connect to remote server as TCP client.
Description:
How They Work:
Default IP: 192.168.1.4
Prot: 30000
Link: http://192.168.1.4/30000
HTTP Comment:
http://192.168.1.4/30000/00 : Relay-01 OFF
http://192.168.1.4/30000/01 : Relay-01 ON
http://192.168.1.4/30000/02 : Relay-02 OFF
http://192.168.1.4/30000/03 : Relay-02 ON
http://192.168.1.4/30000/04 : Relay-03 OFF
http://192.168.1.4/30000/05 : Relay-03 ON
http://192.168.1.4/30000/14 : Relay-16 OFF
http://192.168.1.4/30000/15 : Relay-16 ON
http://192.168.1.4/30000/41 : Enter
http://192.168.1.4/30000/40 : Exit
http://192.168.1.4/30000/42 : Next Page
http://192.168.1.4/30000/43 : Next Page
Package Content:
1 x Ethernet Control Module
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
