Elektronikus terhelés 0-10A 100W DC 12V-os kisütött akkumulátor kapacitás teszter V3M7 tesztelése

Electronic Load 0-10A 100W DC 12V Discharge Battery Capacity Tester Testing V3M7

This Electronic Load has the high speed fan, which can automatically change the speed. High quality heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity, and power supply voltage abnormity.
The high speed of the fan can change according to the heat sink temperature.
Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time.
Durable construction for long-lasting performance.
Professional test module for detecting discharge battery capacity.
Color: As shown
Material: Metal PC
Power Supply: DC12V /-5%
Fan Current: 0.72A
Constant Discharge Current Range: 0-10A(whole machine)
Working Mode: Single Mode Constant Current(CC)
Discharge Current Max. Error: 0.7% -0.01A
Max. Capacity Test Error: 0.5A 2.5% , 2A 1.5% , 5A and above 1.2%
Max. Power: 100W
Input Interface: 5.5 x 2.5mm

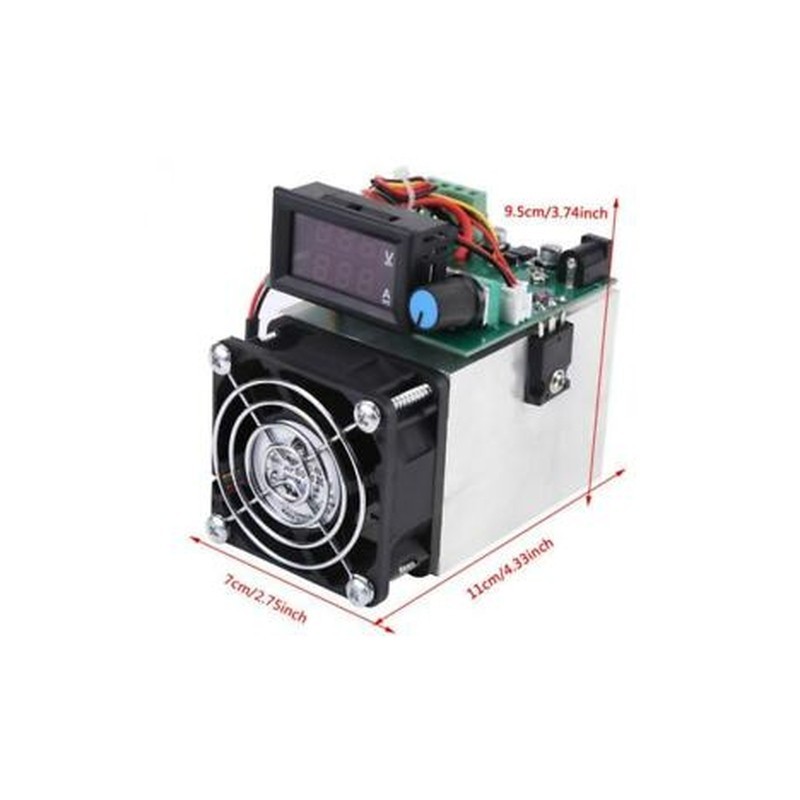

Size: Approx. 11 x 9.5 x 7cm / 4.3 x 3.7 x 2.7inch
Weight: 385g
Operation Instructions:
Connect with DC 12V power supply and enter electronic load mode, ensuring in a stopping state, connect the power supply under test to the test input port. Please pay attention to connect the right polarity!
Set constant current through knobs.
Note: Since it works openly, there is no voltage and power limitation, but normal work should be below 100V, 100W.
Package List:
1 * Discharge Battery Capacity Tester
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
