Alacsonyabb ár! 2db PWM motorfordulatszám szabályozó vezérlő Nagyobb

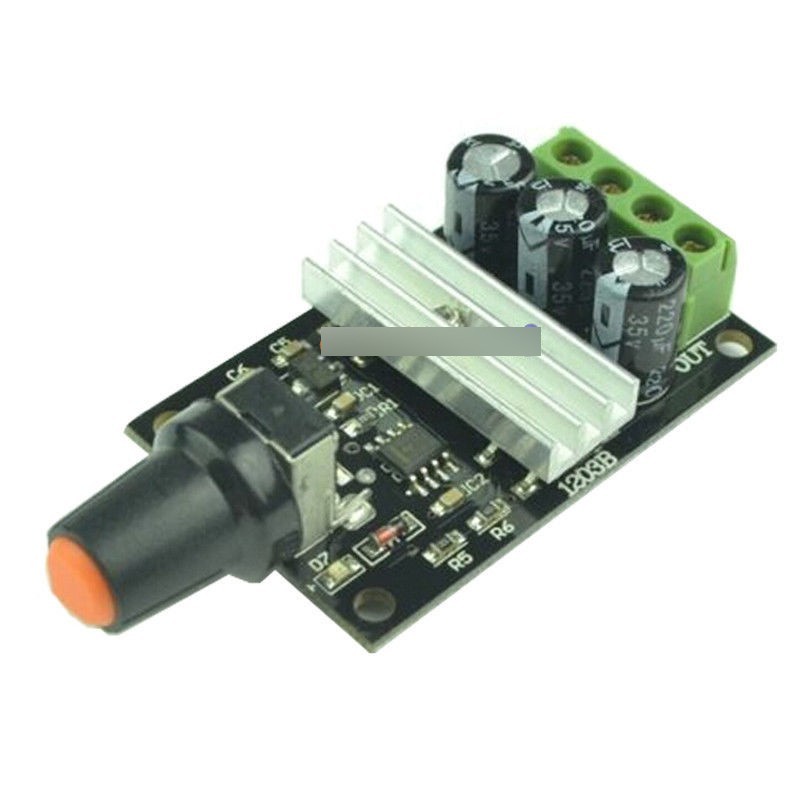

2db PWM motorfordulatszám szabályozó vezérlő

Új termék

This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
rolling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
rolling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
The motor speed controller can easily provide a continuous current of3A to your DC motor or other DC load.
Main technical parameters:
Input supply voltage:6V-28VDC
The maximum output power: 80W
The maximum continuous output current :3A
Duty Cycle adjustable:5%-100%
Operating instruction:
1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
3. You can now control the speed of the motor through potentiometer.
Package Included:
2 x DC 6V - 28V 3A PWM Motor Speed Varible Regulator Controller Switch
On Apr-28-16 at 20:03:43 PDT, .
2PCS DC 6V - 28V 3A PWM Motor Speed Varible Regulator Controller Switch

Bővebb leírás

17 / 5 / Gyorsan Fogyó termék

693 Ft‎

-67%

2 099 Ft‎

Egyéb infó

az egyenáramú motorsebesség-szabályozó lehetővé teszi egy egyenáramú motor irányát impulzusszélesség-modulált (PWM) egyenfeszültséggel, 0% -100% -kal teljesen beállítható Duty Cycle-szel.
egy egyenáramú motor irányával impulzus-szélességű modulált (PWM) egyenáramú feszültség, amely 0% -100% -kal teljesen állítható.
Egy egyenáramú motor irányának gördülése impulzus-szélességű modulált (PWM) egyenáramú feszültséggel Ciklus teljesen állítható 0% -100% között.
A motor fordulatszám-szabályozója egyszerűen biztosítja a 3A egyenáramot a DC motorhoz vagy más DC terheléshez.
Főbb műszaki paraméterek:
Bemeneti tápfeszültség: 6V-28VDC
Maximális kimeneti teljesítmény: 80W
Maximális folyamatos kimeneti áram: 3A
Duty Cycle állítható: 5% -100%
Üzemeltetési utasítás:
1. Csatlakoztassa egyenáramú motorját (vagy egyenáramú terhelést) a motor csatlakozóihoz a bekötési rajzon feltüntetett módon.
2. Csatlakoztasson egy 10V-36V DC feszültséget az áramkörhöz, győződjön meg róla, hogy a kapcsolat helyes polaritása. Ne feledje, hogy a motorra felvitt feszültség az áramkörhöz tartozó tápfeszültség lesz. Javasoljuk, hogy megfelelő áramellátású biztosítékot adjon hozzá a pozitív tápellátáshoz annak érdekében, hogy megvédje az áramkört a lehetséges rövidzárlattól.
3.
A csomag tartalma:
2 x DC 6V-28V 3A PWM motorfordulatszám-szabályozó szabályozó kapcsoló
Április 28-16-án 20: 03:43 PDT,.
2PCS DC 6V - 28V 3A PWM motorfordulatszám szabályozó szabályozó kapcsoló
