Uno R3 CH340 4x A4988 4x hűtőborda CNC V3.0 árnyékoló modul

Uno R3 CH340 4x A4988 4x heatsink CNC V3.0 shield Module
Uno R3 CH340 4x A4988 4x heatsink CNC V3.0 shield

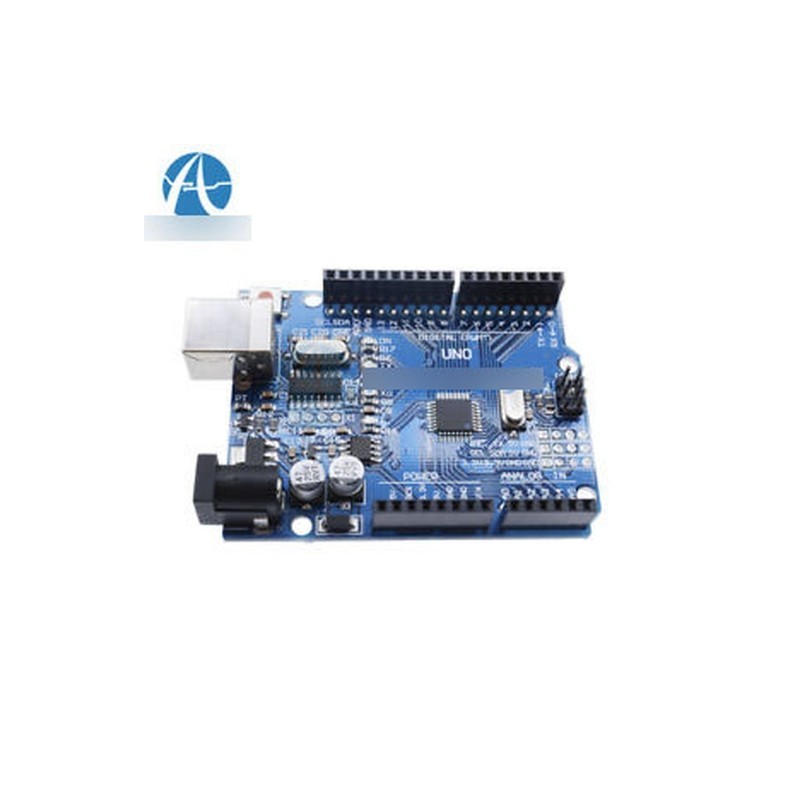

UNO R3 CH340:
UNO R3 kompatibeles Atmel ATmega328 Board 16MHz 3,3V / 5VDas Board ist mit einem CH340 Chip bestĂĽckt und kann direkt ĂĽber USB betrieben werden.Artikelnr. 001.005.222 Microcontroller: Atmel ATmega 328Spannung: 3,3V / 5VSpannung: 5V - 9V (extern ĂĽber Pin30)digitale I/O Pins: 14 (inkl. 6x PWM)Analog in: 6Strom pro Pin: max 40mAFlash Memory: 32KB (davon 2KB mit bootloader belegt)SRAM: 2KBEEPROM: 1KBGeschwindigkeit: 16MHZAbmessungen: 78,5 x 54mm (ohne USB)Gewicht: 20gr.
- CNC Shield:
UNO CNC V3.0 expansions shield fĂĽr A4988 DRV8825 Driver Artikelnr. 001.005.064
This expansion board as a driver expansion board, can be used for engraving machines, 3D printers.
It is a total of four slots, can drive four A4988 stepper motor. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. Very convenient to use.

UNO --------------------- expansion board
8 ------------------------ EN ( stepper motor driver enable , active low )
7 ----------------------- Z.DIR (Z -axis direction control )
6 ----------------------- Y.DIR (Y -axis direction control )
5 ----------------------- X.DIR (X -axis direction control )
4 ---------------------- Z.STEP (Z -axis stepper control )
3 ---------------------- Y.STEP (Y -axis stepper control )
2 ---------------------- X.STEP (X -axis stepper control )

/ / The following is a simple stepper motor control procedures,

# define EN 8 / / stepper motor enable , active low
# define X_DIR 5 / / X -axis stepper motor direction control
# define Y_DIR 6 / / y -axis stepper motor direction control
# define Z_DIR 7 / / z axis stepper motor direction control
# define X_STP 2 / / x -axis stepper control
# define Y_STP 3 / / y -axis stepper control
# define Z_STP 4 / / z -axis stepper control
/ *
/ / Function : step . function: to control the direction of the stepper motor , the number of steps .
/ / Parameters : dir direction control , dirPin corresponding stepper motor DIR pin , stepperPin corresponding stepper motor " step " pin , Step number of step of no return value.

* /
void step (boolean dir, byte dirPin, byte stepperPin, int steps)
{
digitalWrite (dirPin, dir);
delay (50);
for (int i = 0; i
digitalWrite (stepperPin, HIGH);
delayMicroseconds (800);
digitalWrite (stepperPin, LOW);
delayMicroseconds (800);
}
}
void setup () {/ / The stepper motor used in the IO pin is set to output
pinMode (X_DIR, OUTPUT); pinMode (X_STP, OUTPUT);
pinMode (Y_DIR, OUTPUT); pinMode (Y_STP, OUTPUT);
pinMode (Z_DIR, OUTPUT); pinMode (Z_STP, OUTPUT);
pinMode (EN, OUTPUT);
digitalWrite (EN, LOW);
}
void loop () {
step (false, X_DIR, X_STP, 200); / / X axis motor reverse 1 ring, the 200 step is a circle.
step (false, Y_DIR, Y_STP, 200); / / y axis motor reverse 1 ring, the 200 step is a circle.
step (false, Z_DIR, Z_STP, 200); / / z axis motor reverse 1 ring, the 200 step is a circle.
delay (1000);
step (true, X_DIR, X_STP, 200); / / X axis motor forward 1 laps, the 200 step is a circle.
step (true, Y_DIR, Y_STP, 200); / / y axis motor forward 1 laps, the 200 step is a circle.
step (true, Z_DIR, Z_STP, 200); / / z axis motor forward 1 laps, the 200 step is a circle.
delay (1000);
}

Note: When inserting the A4988 module, must be careful not to insert opposite. Stepper motor wiring as follows:
2A, 2B is a group (red, green), 1A, 1B is a group (blue, yellow), if want to change direction, can be change the position of one group , for example 2A, 2B mutually exchanged.
Pololu A4988 Stepper Driver configuration:MS0 MS1 MS2 Microstep Resolution
Low Low Low Full step
High Low Low Half step
Low High Low Quarter step
High High Low Eighth step
High High High Sixteenth step
Pololu DRV8825 Stepper Driver configuration:
MODE0 MODE1 MODE2 Microstep Resolution
Low Low Low Full step
High Low Low Half step
Low High Low 1/4 step
High High Low 1/8 step
Low Low High 1/16 step
High Low High 1/32 step
Low High High 1/32 step
High High High 1/32 stepExample of full micro stepping (All 3 jumpers inserted for all axes)- 4x A4988:A4988 Treiber fĂĽr SteppermotorArtikelnummer:001.005.065Spannungsversorgung: 5V / 3,3V
Motorspannung: 8V - 35V
Strom: max 2A (nur mit Kühlkörper)
Schritte: 1/1 - 1/2 - 1/4 - 1/8 - 1/16
Abmessungen: 20,5mm x 15,5mm (ohne Pinheader)
Gewicht: 0,5gr. (ohne Pinheader)

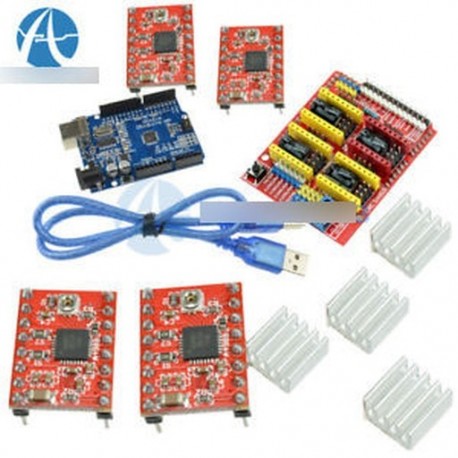

Package included:

- 1x UNO R3 CH340 (with cable)- 1x CNC Shield- 4x Stepper Driver A4988 inkl. Heatsink & Pad
