STM8S STM8S105K4T6 Fejlesztési modul MCU tanulási alaplap kis rendszer

STM8S STM8S105K4T6 Development Board Module MCU Learning Core Board Small System
Description:100% Brand New and High Quality.

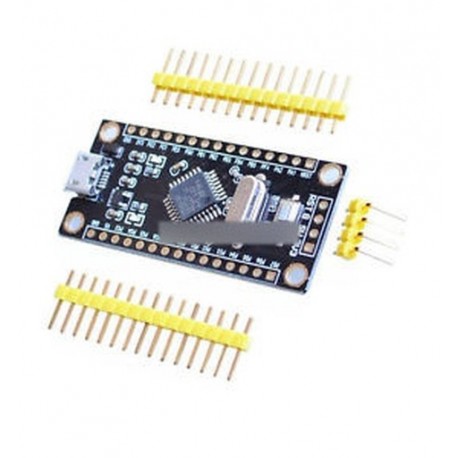

Shape: Same as the picture show
1. Type: STM8S STM8S105K4T6 Development Board
2. Size: 49.5mm x 23mm
3. Chip Type: STM8S105K4T6
4. Chip Features: Advanced STM8 core MemoryMedium Density Program and Data Memory:- up to 32K bytes Flash; 10K erase in 55 ° C environment, the data can be stored for 20 years
- Data memory: up to 1K bytes of real data EEPROM; up to 300,000 times erase
RAM: Up to 2K bytes
Clock, reset and power management
3.0 ~ 5.5V operating voltageFlexible clock control, 4 main clock sources
Low Power Crystal Oscillator
- External clock input
- User adjustable internal 16MHz RC
- Internal low-power 128kHz RC
Clock security system with clock monitoring
Power management:
- Low power mode (wait, active stop, stop)
- The peripheral clock can be turned off individually
Always turn on low power-on and brown-out reset
Interrupt management
A nested interrupt controller with 32 interrupts
6 external interrupt vectors, and up to 37 external interrupts
Timers
Two 16-bit general-purpose timers with 2 3 CAPCOM channels (IC, OC, or PWM)
Advanced control timers: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-band insertion and flexible synchronization
8-bit basic timer with 8-bit prescaler
Automatic wake-up timer
2 Watchdog Timers: Window Watchdog and Independent Watchdog function
Communication Interface
UART with Synchronous Clock Output, Smart Card, Infrared IrDA, LIN Interface
SPI interface up to 8Mbit / s
I 2 C Interface Up to 400Kbit / s Analog-to-Digital Converter Analog-to-Digital Converter (ADC)
10-bit, ± 1 LSB ADC with up to 10 channels, sweep mode and analog watchdog function
I / O port
The 48-pin package has up to 38 I / Os on the chip, including 16 high-sinking current outputs
Very robust I / O design, very robust against back-flow currents
Development support
Single-wire interface module (SWIM) and debug module (DM) for easy on-line programming and non-intrusive debugging Package Included:
1 X STM8S STM8S105K4T6 Development Board Module Core Boa
