RC522 I2C - RFID RC522 13.56Mhz modul / egység I2C / SPI közelségi modul olvasó IC S50 kulcscímke

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
RFID RC522 13.56Mhz Module/Unit I2C/SPI Proximity Module Reader IC S50 Key Tag
Description:
5PCS RFID IC Key Tag
Main Chip: S50
Storage capacity: 8Kbit, 16 partitions, each partition with 2 grounp passwords
Size: 30x40x3mm
Operating Frequency: 13.56 MHz
Communication speed: 106K Boud
Read and write distance: 2.5~10cm
Read and write time: 1~2ms
Operating Temperature: -20 ℃~85 ℃
Endurance:> 100,000 times
Typical applications:
enterprise / campus card, bus stored value card, express way fees, parking, district management,attendance systems, patrol system, enterprise systems, access control systems, radio frequency identification field and so on
Quantity:5PCS5PCS IC RFID Card
100% brand new and high quality
Frequency: 13.56 MHz
Size: 85x54x0.9mm
Material: PVC, Waterproof
IC tag is suitable for 13.56MHz ISO14443A S50 card reader and reading distance is 0~10cm
(Reading distance depends on readers, not the cards)
User definable access conditions & password for each memory block
1K byte EEPROM memory (768 FREE BYTES availability)
Organized in 16 sector with 4 blocks of 16 bytes each (one block consists of 16 byte)
Write endurance 100,000 cycle
ISO standards :ISO 14443 / 14443A
Prefect support for:
Xperia™ P, Xperia™ S, Xperia™ sola,
HTC One X,
LG Prada 3,
Panasonic Eluga,etc.
Quantity:5PCSRC522 Module
Model: RC522
Sleep Current: <80uA
Peak current: <30mA
Operating Frequency:13.56MHz
Read Range: 0～45mm
Interface: UART TTL
Baud Rate: 115200
Data transfer rate:Maximum10Mbit/s
Physical Characteristics:
Size: 50 X 50mm
Ambient operating temperature: -20℃~80℃
Storage Temperature: -40℃~85℃
Humidity: Relative Humidity 5% ~95%
Agreement: Compliance with ISO14443A standard，support S50、S70
Quantity: 1PC
RC522 Unit
Electrical parameters:
1. Operating current :13-26mA/DC 3.3V
2. Idle current :10-13mA/DC 3.3V
3. Sleep current: <80uA
4. Peak current: <30mA
5. Operating Frequency: 13.56MHz
6. Supported card types: S50, S70
7. Product physical characteristics: size: 40 X 60mm
8. Environmental Operating temperature: -20℃~80℃
9. Environmental Storage Temperature: -40℃~85℃
10.Relative humidity: relative humidity 5% -95%
11.Module interfaces SPI Parameter
12.Data transfer rate: maximum 10Mbit/s

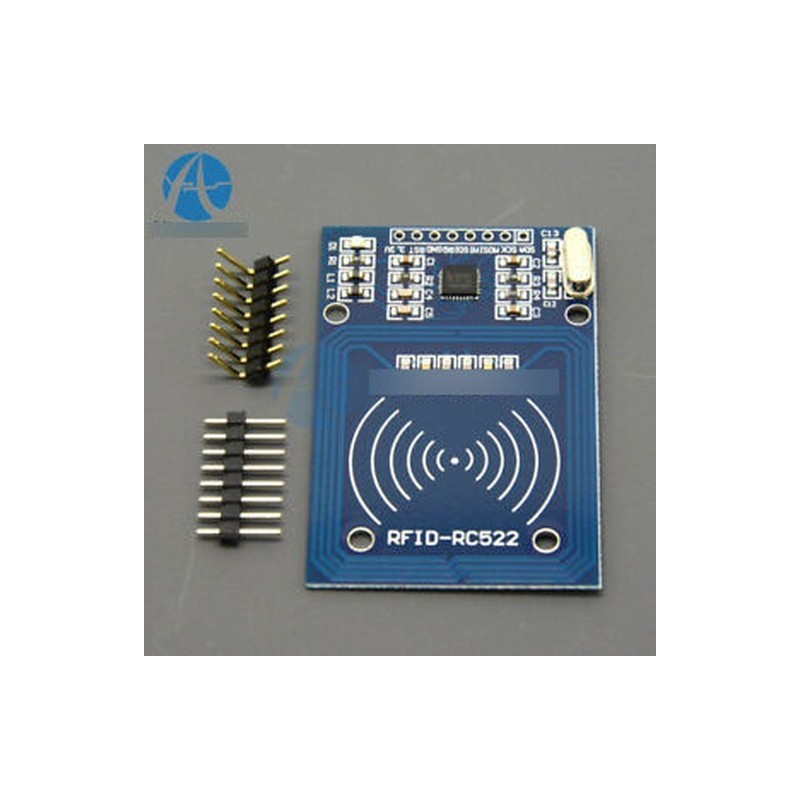

Quantity: 1PC RC522 Module (only pin)
Electrical parameters:
1. Operating current :13-26mA/DC 3.3V
2. Idle current :10-13mA/DC 3.3V
3. Sleep current: <80uA
4. Peak current: <30mA
5. Operating Frequency: 13.56MHz
6. Supported card types: S50, S70
7. Product physical characteristics: size: 40mm X 60mm
8. Environmental Operating temperature: -20℃~80℃
9. Environmental Storage Temperature: -40℃~85℃
10.Relative humidity: relative humidity 5% ~95%
11.Module interfaces SPI Parameter
12.Data transfer rate: maximum 10Mbit/s
Quantity: 1PC RC522 I2C/SPIOperating Frequence: 13.56MHz
Operating Voltage: 2.5~3.6V
Operating Current: 20mA(3.3V power supply)
Card Reading Distance: 0~50mm
Supporting Type: S50 S70 UltraLight Pro
Operating Temperature:-25℃~85℃
Module Size:2*3cm
Antenna: 3*4cm
Coaxial cable length: 20cm
Connect Type: IIC/SPI (Optional)
Quantity:1PC
