ESP8266 5 V-os WiFi relé - ESP-01 ESP-01S ESP8266 5V WIFI relé modul távirányító kapcsoló Smart Home

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

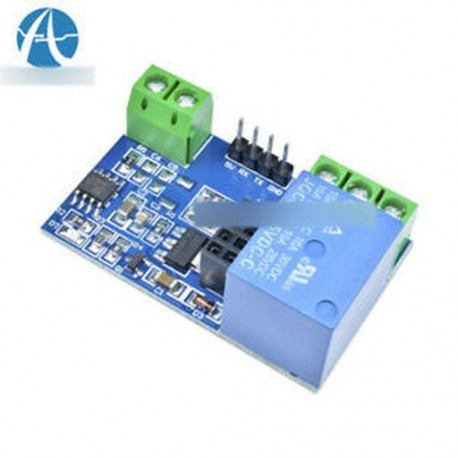

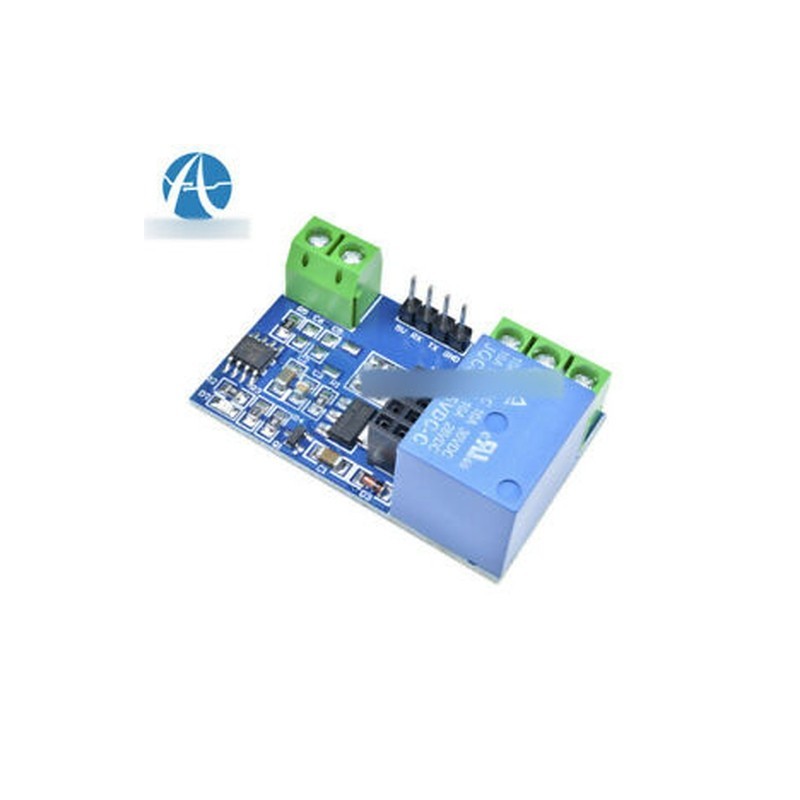

ESP-01 ESP-01S ESP8266 5V WIFI Relay Module Remote Control Switch Smart HomeESP8266 5V Wifi Relay Product Parameters:
Product Size: 45 * 28mm
working voltage: DC5V
Communication to WIFI ESP8266 module
Serial communication parameters: 9600.8, 1.0, 0
transmission distance: maximum transmission distance 400 m (open environment, mobile phone equipped with WIFI module)
load: 10A / 250VAC 10A / 30VDC, relay pull 100,000 times
way of working:
mobile phone equipped with WiFi module;
cellular phone and WiFI module with the same router, through the APP phone to control the relay; this mode, the transmission distance depends on the router signal.
tips:
The ESP8266 module has a timeout mechanism, when the phone for a certain time (default 180 S) did not give instructions to the module, the module will reset the phone, the computer can send AT CIPSTO = <> time change this time (Time range 0-7200), such as: AT CIPSTO = 3600.
when the module on the WIFI module is disconnected, USB to the module of the TTL RX, TX, GND pin have been connected to the RX, TX, GND pin, IN , IN-5 V supply module, then the module can be used as a USB Relay to use, scalability.Note: this item is without ESP8266 BoardShipping List:
1 X DC 5V Relay Module ESP8266 ESP-01
Features:SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
Integrated RISC processor, on-chip memory and external memory interfaces
Integrated MAC/baseband processors
Quality of Service management
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Proprietary spurious-free clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines
SolutionsSupports APSD for optimal VoIP applications
Patented spurious noise cancellation algorithm for integration in SOC applications
Supports Bluetooth co-existence interface
Self-calibrated RF to ensure optimal performance under all operating conditions
Zero factory tuning
No external RF components
Specifications802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1 X 1 MIMO, 2 X 1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)Help your development more easy.
ESP8266 Serial WIFI Module Communite Forum>> Detail about ESP8266 1. High quality & low price
2. LWIP agreement
3. Support 3 modes: AP, STA, AP STA
4. Perfect and simple AT commands>>>>Translate data sheet>>>>Some translated document>>>>TurialPackage Included:

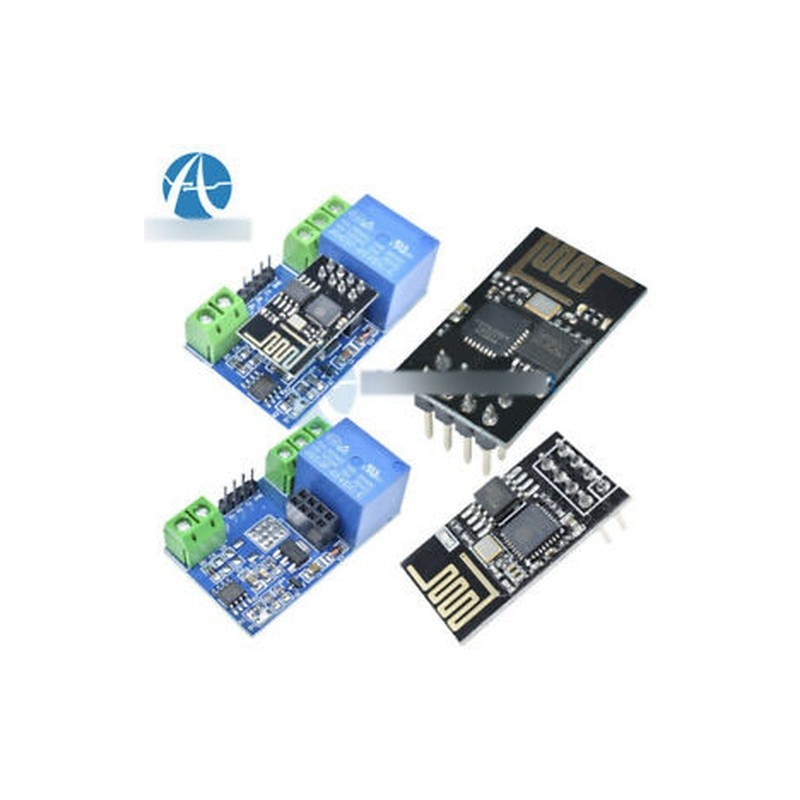

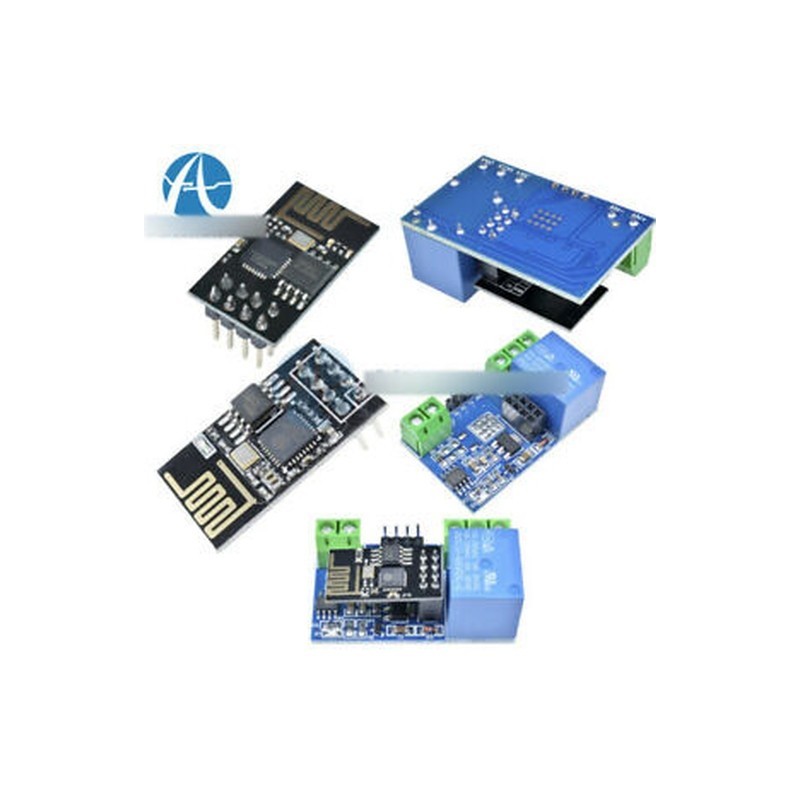

1PCS* ESP8266 Serial WIFI Wireless Transceiver Module ESP-01 Send Receive LWIP AP STA ESP8266 ESP-01S
Description:
Wireless Standard:802.11b/g/n
Frequency Range:2.4GHz-2.5GHz(2400M-2483.5M)
Data Interface:UART/HSPI/I2C/I2S/Ir Remote Control/GPIO/PWM
Operating Voltage:3.0-3.6V(We recommended 3.3V)
Operating Current:Average 80mA
Operating Temperature:-40~125℃
Wireless Network Mode:station/softAP/SoftAP station
Safety Mode:WPA/WPA2
Encryption Type:WEP/TKIP/AES
Network Protocol:IPV4,TCP/UDP/HTTP/FTPPackage content:1PCS ESP8266 ESP-01S Serial WIFI Wireless Module Adapter Breakout Send Receive AP STA 5V Wifi Relay ESP-01/01S Features:
Onboard Module:ESP8266 WIFI Module,can connect 5 client at the same time on the mode of AP
Working Method:Mobile phone equipped with Wifi module
Mobile phone and wifi module equipped with one router,and control the relay by APP
Onboard Relay:5V,10A/250V AC 10A/30V DC relay
Package Included
1PCS X ESP8266 5V Wifi Relay Module
