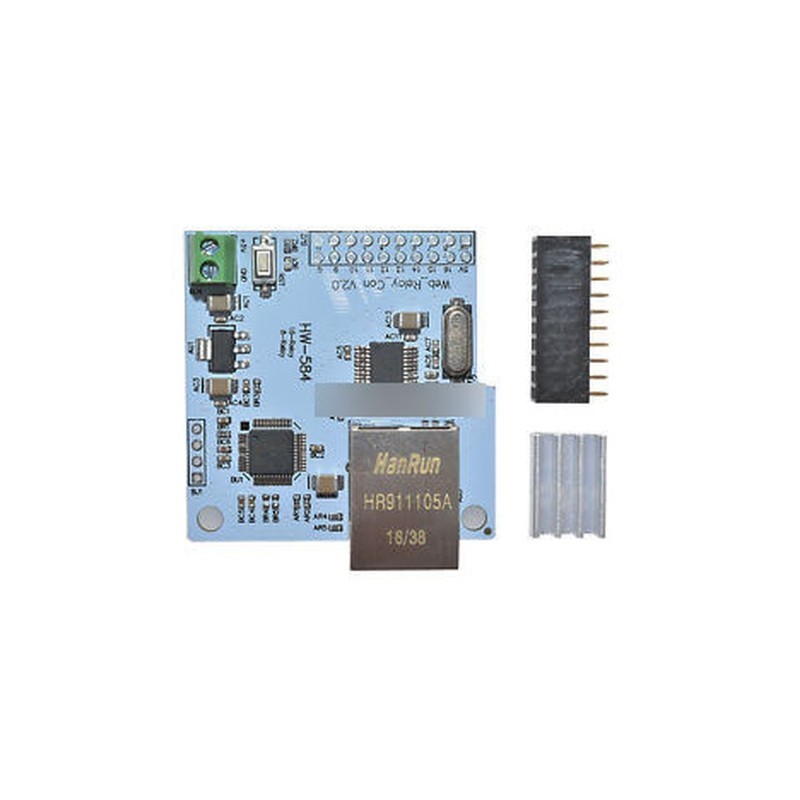

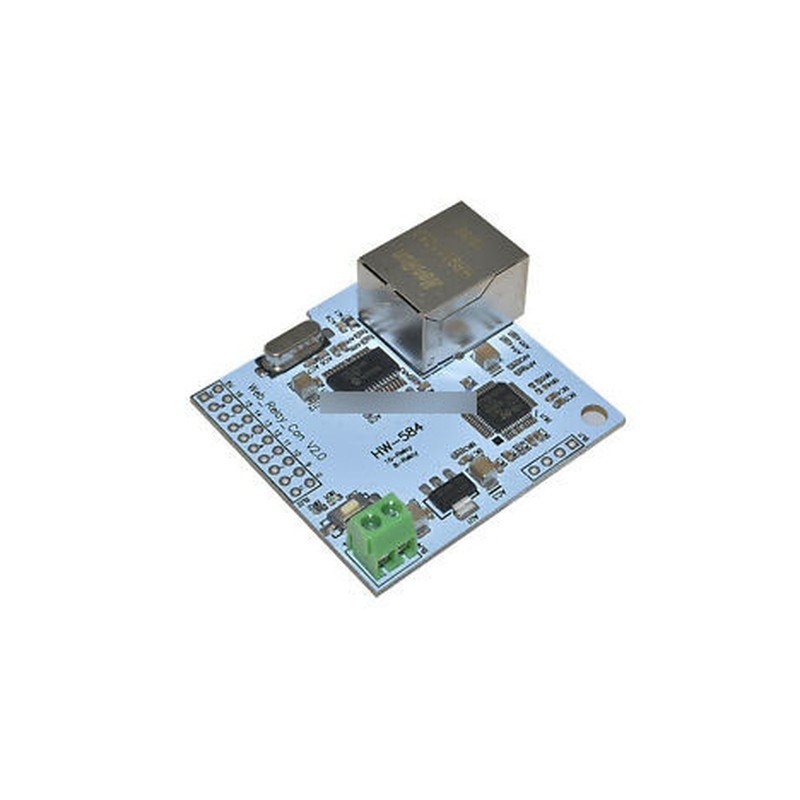

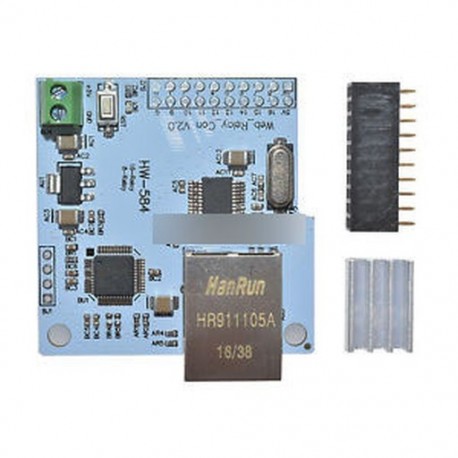

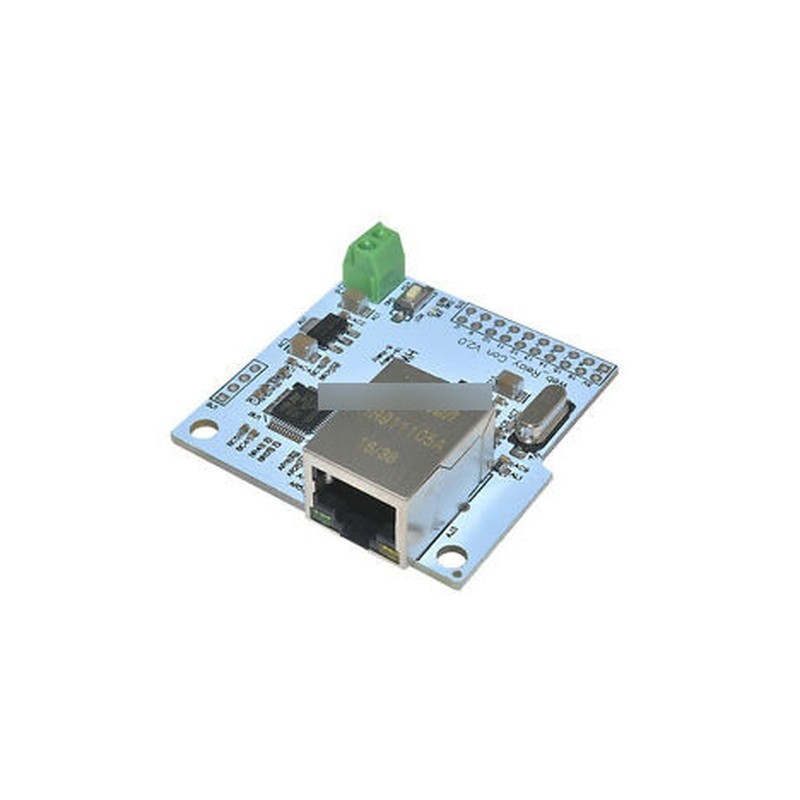

ENC28J60 16 bites hálózati vezérlő modul 16 bites relé modulhoz Smart Home

ENC28J60 16bit Network Controller Module for 16Bit Relay Module Board Smart Home

Product Introduction:16-channel network module is a network-based relay control module base on 32bit system, This module can use the internet or intranet router control relay module, Thus,Complete remote control of electrical switches, achieve the purpose of power centralized management. It can be set directly through the IE browser and control.Applications:Home decoration, hotels, shopping malls factories, cafes, karaoke oK timer management, daily office, shop surveillance, physical networking, industrial control equipment, testing equipment power control, unattended, underground pipelines, mining equipment, ships, aircraft stations room, street management, intelligent management and centralized management.NOTES:When connecting the high-voltage power supply modules, please note the wiring to prevent equipment damage caused by short circuit!Technical Specifications:1.External power supply voltage: 5.5V DC 2A Max
2.Relays can be accessed: 16
3.Electronic switch life: 100,000 times
4.Working temperature: -30 ~ 85?
5.Size: 47*48*20mmInstructions:1. Set IP in Internet Attribute
2. Default IP 192.168.1.4 Port:30000
Open Browser and input http://192.168.1.4/30000 .Enter the control interface
3. Relay control HTTP Command:
Relay 1-8Bit Command:
http://IP/Port/00 : Relay-01 OFF
http://IP/Port/01 : Relay-01 ON
http://IP/Port/02 : Relay-02 OFF
http://IP/Port/03 : Relay-02 ON
http://IP/Port/04 : Relay-03 OFF
http://IP/Port/05 : Relay-03 ON
http://IP/Port/06 : Relay-04 OFF
http://IP/Port/07 : Relay-04 ON
http://IP/Port/08 : Relay-05 OFF
http://IP/Port/09 : Relay-05 ON
http://IP/Port/10 : Relay-06 OFF
http://IP/Port/11 : Relay-06 ON
http://IP/Port/12 : Relay-07 OFF
http://IP/Port/13 : Relay-07 ON
http://IP/Port/14 : Relay-08 OFF
http://IP/Port/15 : Relay-08 ONRelay 9-16Bit Command:
http://IP/Port/16 : Relay-09 OFF
http://IP/Port/17 : Relay-09 ON
http://IP/Port/18 : Relay-10 OFF
http://IP/Port/19 : Relay-10 ON
http://IP/Port/20 : Relay-11 OFF
http://IP/Port/21 : Relay-11 ON
http://IP/Port/22 : Relay-12 OFF
http://IP/Port/23 : Relay-12 ON
http://IP/Port/24 : Relay-13 OFF
http://IP/Port/25 : Relay-13 ON
http://IP/Port/26 : Relay-14 OFF
http://IP/Port/27 : Relay-14 ON
http://IP/Port/28 : Relay-15 OFF
http://IP/Port/29 : Relay-15 ON
http://IP/Port/30 : Relay-16 OFF
http://IP/Port/31 : Relay-16 ONView relay status commandhttp://IP/Port/99 : Feedback current I/O status by 16 ACSII . MSB is for the first bit.and LSB for 16th bit.
E.g : Return 1111000011110000 It is means Relay 1-4 is ON,Relay 5-8 is OFF,Relay 9-12 is ON,Relay 13-16 is OFF.Modify IPhttp://IP/Port/41 : When modify IP,the Relay-01 must not be 0, Relay-01~04 all can not be greater than 255.Port can not be 0.Restore DefaultLED will flash once when short press button.
Long press button and don't release until LED lit aways.Then release button ,the led will off.It said it is to restore the factory settings. IP 192.
