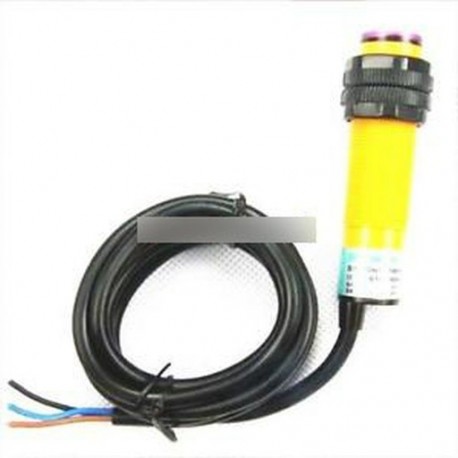

E18-D80NK kapcsoló - E18-D50NK E18-D80NK NPN állítható infravörös fényvisszaverő érzékelő kapcsoló DIY készlet

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
E18-D50NK E18-D80NK NPN Adjustable Infrared Reflectance Sensor Switch DIY Kit

1. E18-D50NK SwitchModel: E18-D50NKThis is a set of transmitter and receiver in one of the photoelectric sensors. 1 detection distance can be adjusted according to the requirements. The sensor has a detection distance, by small visible light interference, cheap, easy to assemble, easy to use features, can be widely used in robot obstacle avoidance, line piecework and many other occasions.Electrical characteristics:

U: 5VDC
I: 100mA
Sn: 3-50CM
Package Included :
1pcs x E18-D50NK NPN Adjustable Infrared Reflectance Sensor Switch photoelectric sensor2.E18-D80NKSwitch
Descriptrion:Output current DC / SCR / Relay Control output: 100mA/5V supply.
Current consumption DC <25mA.
Response time <2ms.
Point angle: ≤ 15 °, the effective distance adjustable 3-80cm
Detected object: transparent or opaque body
Operating ambient temperature: -25 ℃ ~ 55 ℃
Standard sensing object: less sunlight 10000LX incandescent 3000LX
Diameter: 18mm ( 23/32 in )
Sensor length: 45mm ( 1 25/32 in )
Lead Length: 50cm ( 10 1/4 in )
Red: connected 4.5-5V power supply high
Yellow: connected microcontroller output TTL level to the microcontroller
Green: GND 0V power low
Electrical Characteristics:
U: 5VDC
I: 100Ma
Sn :3-80CM
Appearance: Threaded cylindrical
Material: Plastic
Guard mode: Reverse polarity protection
Ambient temperature: -25-70 ℃Package Included:

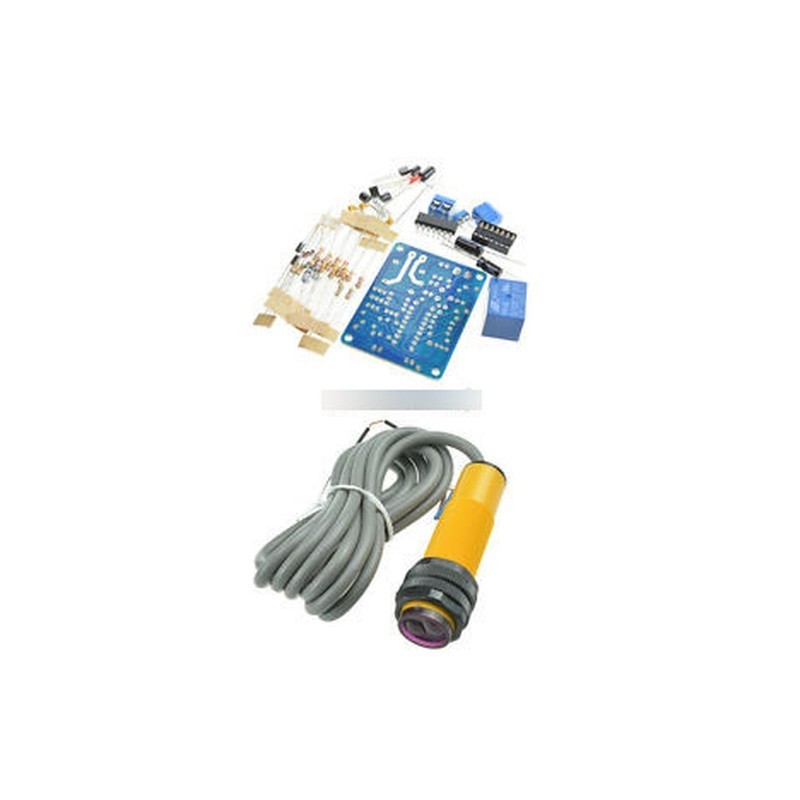

1 x E18-D80NK Sensor3. Infrared Switch Kit3. Infrared Switch Kit
Features:
NOTE :This Is For DIY

The infrared sensor switch detects whether the infrared signal is
reflected and emitted to determine whether there is an object in front ,
so as to control the switching operation of the relay used in the faucet ,the automatic dry hands and other equipment .
Package Name : Infrared sensor switch , infrared proximity switch
Operating voltage : 12V
?Quiescent Current : 28mA
Pick-up current : 70mA
PCB Size : 58 * 44mm
Sensing distance reference values : about 15cm
Relay contact capacity : 10A/250V
Delay time : 0 ~ 40S adjustable
Package List :Name Number of components:
PCB board x1
CD4093 DIP x1
14 -pin IC socket x1
KF301-2P Terminal Block x2
12V Relay x1
1N4007 diode x2
1N4148 diode x3
3MM red LED x1
940 red hair emit light ( white ) x1
940 infrared receiver ( Black ) x1
9012 transistor x4
9013 transistor x1
1W 100ohm resistor x1
33ohm 1W resistor x1
105 blue potentiometer x1
1K resistor x3
10K resistor x3
22K resistor x1
82K resistor x2
220K resistor x2
5.1M resistor x1
10M resistor x1
104 monolithic capacitor x3
47UF25V electrolytic capacitor x1
100UF25V ele
