DST1000 AC100-220V digitális hőmérsékletszabályozó termosztát DS18B20 érzékelővel

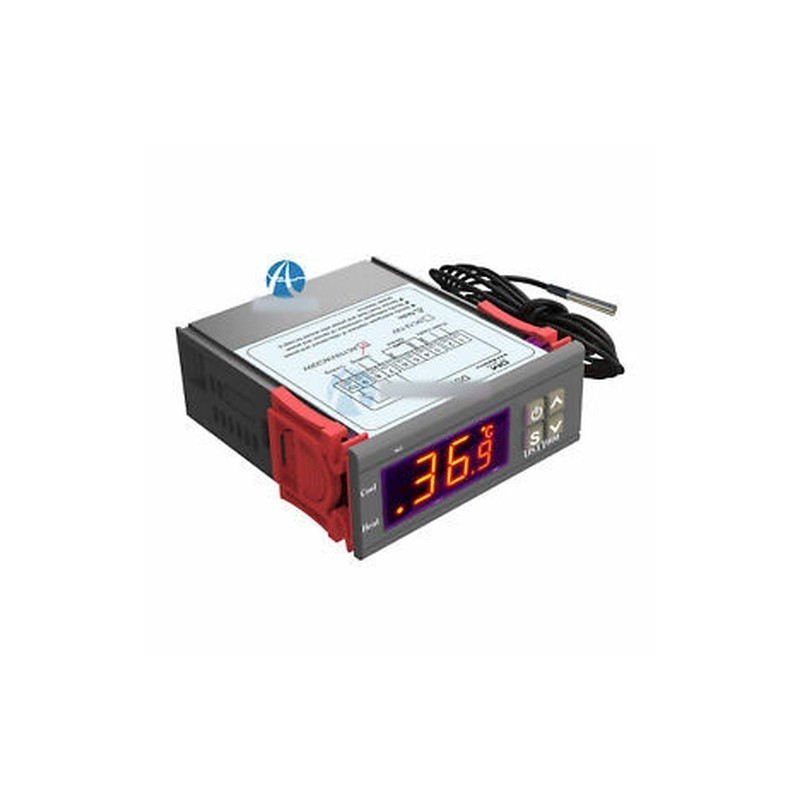

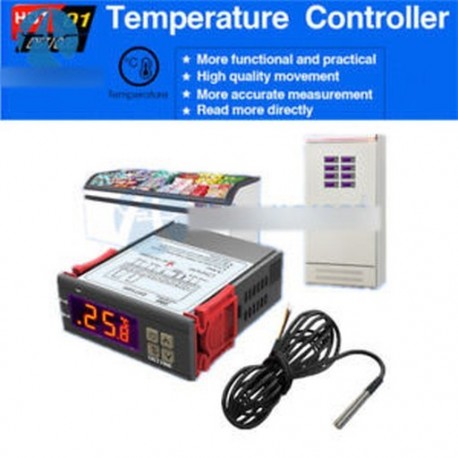

DST1000 AC100-220V Digital Temperature Controller Thermostat With DS18B20 Sensor
Description:Product ModelDST1000
Supply VoltageAC100~220V
Temperature Range-50~ 120°C
Temperature Measurement Accuracy±0.5°C（In the range of -10~ 85°C）
Line length1m
Size75mm*85mm*35mm
Applicable SceneVarious Sensor Control Boxes、Water Heater、Freezer、Fan
（Not limited to the devices）
Temperature Setting
Heating and Cooling Mode Setting
Setting(Starting Temperature):
Press and hold the▲button 3 seconds to Start Temperature flashing,Use▲▼button to set Start Temperature value
Setting(Stop Temperature):
Press and hold the▼button 3 seconds to Stop Temperature flashing,Use▲▼button to set Stop Temperature value
Cases 01 Control Water Heater
Heating to 65℃ to stop, the temperature drops back to 50℃ and heating again
Step1:Heating mode,Starting Temperature＜Stop Temperature.
Step2:Press and hold the▲button 3 seconds to Start Temperature value flashing. Use▲▼ to set the Starting Temperature to 50℃.
Step3:Press and hold the▼button 3 seconds to Stop Temperature value flashing. Use▲▼ to set the Stop Temperature to 65℃ and the setting is completed.
The button does not operate for 5 seconds and automatically returns to the normal display state.
Cases 02 Control Farm Fan
The fan is ventilated to 26℃ to stop, the temperature is raised to 30℃ and the ventilation is started again.
Step1:Cooling mode,Starting Temperature＞Stop Temperature.
Step2:Press and hold the▲button 3 seconds to Start Temperature value flashing. Use▲▼ to set the Starting Temperature to 30℃.
Step3:Press and hold the▼button 3 seconds to Stop Temperature value flashing. Use▲▼ to set the Stop Temperature to 26℃ and the setting is completed.
The button does not operate for 5 seconds and automatically returns to
Package Included:
1PC*DST1000 AC 110-220V Temperature Controller Thermostat DS18B20 Better STC1000
