CH340G DIY nem tartalmaz kábelt - Nano V3.0 ATmega328 CH340G 5V 16MHz termináladapter USB meghajtóvezérlő panel

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

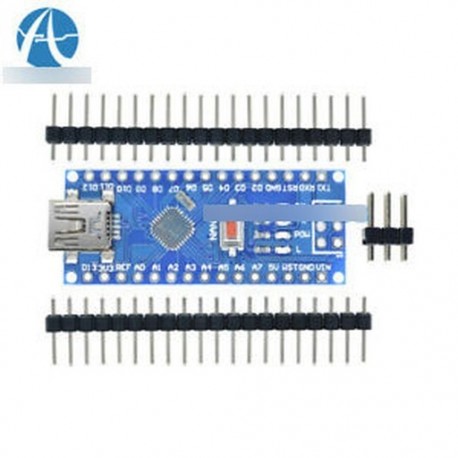

Nano V3.0 ATmega328 CH340G 5V 16MHz Terminal Adapter USB Driver Controller Board
Description:
Nano Terminal Adapter for the Arduino Nano V3.01.This is a terminal adapter for the Arduino Nano
2.can use this adapter to easily hook up Arduino Nano to an outside world via hook up wires
3.It compatible with Arduino Nano version 3.0
4.100% brand new and high quality
5.Easily use and connect
Package Included:1PC*Nano Terminal Adapter for the Arduino Nano V3.0Nano Terminal Adapter for the Arduino Nano V3.0(Welded Cable)1.This is a terminal adapter for the Arduino Nano
2.can use this adapter to easily hook up Arduino Nano to an outside world via hook up wires
3.It compatible with Arduino Nano version 3.0
4.100% brand new and high quality
5.Easily use and connect
Package included:1PC*Nano Terminal Adapter for the Arduino Nano V3.0(Welded Cable)Arduino Nano V3.0 Compatible board1. CH340G REPLACE FT232RL
2. Operating Voltage(logic level):5V
3. 8 analog inputs ports:A0 ~ A7
4. 14 Digital input / output ports:TX,RX,D2 ~ D13
5. 6 PWM ports:D3, D5, D6, D9, D10, D11
6. 1 pairs of TTL level serial transceiver ports RX / TX
7. Using Atmel Atmega328P-AU MCU
8. Support USB download and Power
9. Support for external 5V ~ 12V DC power supply
10. Support power supply by 9V battery
Package Included:1PC*Arduino Nano V3.0 Compatible boardCH340G USB Driver DIY AdapterPackage Included:
1PC*Arduino Nano V3.0 Compatible Support ISP (require soldering)
1PC*Arduino Nano Terminal Adapter Expansion Board Kit (require soldering)CH340G USB Driver Welded Cable AdapterPackage Included:
1PC*Arduino Nano V3.0 Compatible Support ISP Cable (Not require soldering)
1PC*Arduino Nano Terminal Adapter Expansion Board Kit (require soldering)CH340 USB Driver Terminal Adapter(2 in 1)
Package Included:
1PC*Atmega328P Nano 3.0 CH340 USB Driver Terminal Adapter expansion board 2 in 1USB Cable100% brand new and high quality
High Speed USB 2.0 Cable
Compatible with Cellphones, GPS systems, PDAs, OTG devices and digital cameras
Cable lenght: 25CM
Complies with fully rated cable specification using braid-and-foil shield protection
This 25CM USB A to Micro USB B 5pin Cable provides one USB A Male connector, and one Micro USB B connector to create a simple way to connect mobile devices to a USB capable computer for every day tasks such as data synchronization and file transfers.
The micro-USB connector is smaller and thinner than the previous USB Mini-b standard while offering better performance.
Package Included
1PC*25CM USB 2.0 male to Micro USB 5-pin B Male CableCH340 NANO3.0 StrongThe NANO strong is an Arduino compatible board. It is based on Arduino NANO V3.0 design. Some visible improvement on hardware make more flexible and easier to use. SPI, COM and IIC bus breakout make bus connect easier. The NANO strong is a microcontroller board based on the ATmega328. It has 14 digital input / output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or battery to get started.
The NANO strong has an increased pin header spacing of 2.54mm and leads to all I / Os and VCC / GND. We can conveniently connect various modules via DuPont wire, and our engineers love to use it for some applications.
Arduino is an open-source physical computing platform based on a simple i / o board and a development environment that implements the Processing / Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer ( eg Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
Package Included:
1PC*CH340G Micro USB Nano V3.0 ATmega328P 16Mhz Micro-Controller Board For ArduinoCH340 NANO3.0 Strong Cable
Done product(Green Board)This is a terminal adapter for the Arduino Nano.
It lables for Arduino Nano version 3.0,
however you can still use this adapter for the older version
(just have to remember that A0-A7 are in the reverse order).
You can use this adapter to easily hook up Arduino Nano to an outside world via hook up wires.
Board Size:5.2x3.5cm(approx)
Package Included:
1PC*NANO 3.0 Controller Terminal Adapter for NANO Terminal Expansion Board
