Atmega2560-16AU tábla (c ... - MEGA2560 CH340G ATMEGA 2560 R3 USB fejlesztési kártya ATMEGA 2560-16AU kábellel

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

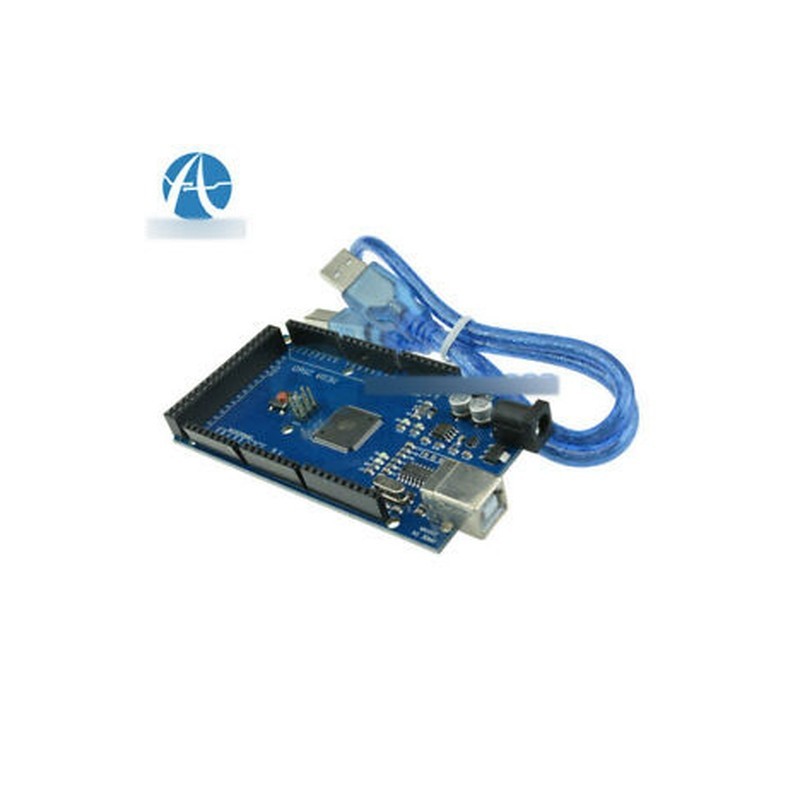

MEGA2560 CH340G ATMEGA 2560 R3 USB Development Board ATMEGA 2560-16AU With Cable
Description:
Atmega2560-16AU Board (with cable) Atmega2560-16AU Board (without cable) 100% Brand new and high quality!!
The Mega 2560 is an update for the Arduino Mega, which it replaces.
The board is a microcontroller board based on the ATmega2560-16AU .It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.
Product Summary:
CH340G replace the Atmega 8U2/16U2
CH340G Driver Download link, please copy the link and paste in browser: http://www.5v.ru/ch340g.htmSpecifications:
Microcontroller:ATmega2560
Clock Speed:16 MHz
EEPROM:4 KB
SRAM:8 KB
Flash Memory:256 KB of which 8 KB used by bootloader
Operating Voltage:5V
Input Voltage (recommended):7-12V
Analog Input Pins:16
Digital I/O Pins:54 (of which 14 provide PWM output)
DC Current for 3.3V Pin:50 mA
DC Current per I/O Pin:40 mA
Size:100*55mm Package Included:1PC*Arduino Compatible Atmega2560-16AU CH340G Atmega2560 R3 Board Mega2560 With cable / Without cable (Depend on your choice!) Male to Type B Plug Cable 100% Brand New.
USB A Male to Type B Plug cable.
Connector Type: Standard USB jack
Wire: flexible PVC jacket, flexible and easy to break, durable
Advantages: with magnetic ring, anti-jamming performance
Product advantages:
1. Standard 2.0 connector provides excellent electrical conductivity, making high-speed transmission of data is fast and accurate interface with Baotou design, is conducive to Protect the USB interface, durable
2. Core all high-quality tinned oxygen-free copper, increase the signal transmission surface, anti-oxidation, life is higher than the average product 50 times
3. Wire with aluminum foil, braid double shield, anti-interference ability, signal transmission more stable
4. Using a unique signal line twisted way, increase the signal transmission stabilityProduct use:
printer cable is a USB male head, used to connect the computer's USB interface; the other end is the mouth of the mouth, for connecting USB printerPackage included:
1PC*Blue 30CM USB A Male to Type B Plug CableATMEGA2560-16AU USB CH340G Development Board
Embedded version of Mega 2560 CH340G / ATmega2560-compatible with Arduino Mega 2560 board. Built in ATmega2560 Atmel microcontroller and CH340G USB-UART interface chip.
The plate has a compact size of 38x55mm. It is a good solution, to make your final project in proto-board welding.
Plate for functionality similar to Arduino Mega 2560. It is an embedded plate, but just as stable, and uses the original ATmega2560 (16 MHz) chips.
The board used the CH340G chip as a UART-USB converter. When you work on the 12 MHz frequency, giving a stable result of the exchange of data (it is necessary to install drivers in the computer).
Mega PRO (Embed) 2560 CH340G / ATmega2560-connects to the computer through the microUSB cable (used for almost all Android smartphones).
You can supply power on board through the MicroUSB connector or to power the heads. The voltage regulator (LDO) can treat the incoming voltage from 6 V to 9 V (peack 18 V) DC. Output current for 5 V-around 3.3 Ma, for V-approximately 800 mA (keep in mind that the higher the input voltage, the lower the outgoing current). That will provide reliable power for most of your initial projects.Details:
Form factor-Mega PRO,
Microcontroller-ATmega 2560 (16 MHz),
USB-UART-CH340G interface (12 MHz),
input voltage-6-9 V (peack 18 V),
PC-MicroUSB connection socket
70 digital I / O,
16 analog entries
14 PWM ...
4 UART bus.Package Included:
1PC*MEGA 2560 Pro Embedded USB CH340G ATMEGA2560-16AU Chip for arduino Mega 2560
