ATMEGA16 ATmega32 ISP Minimális alaplap AVR Minimum Rendszerfejlesztő panel

201622043605

Új termék

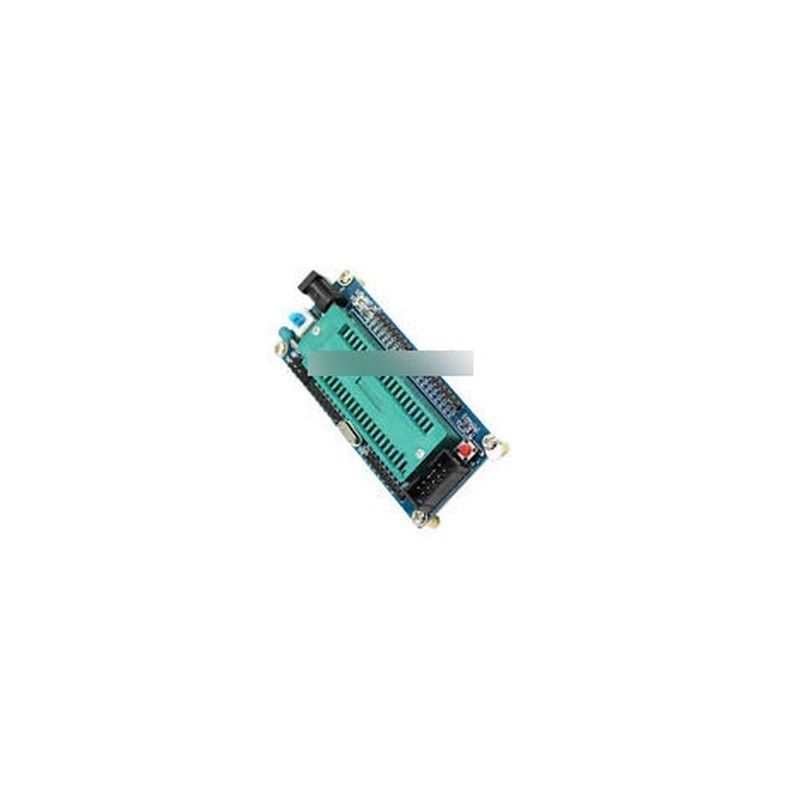

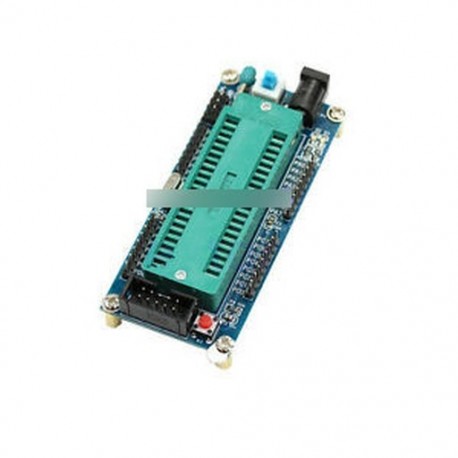

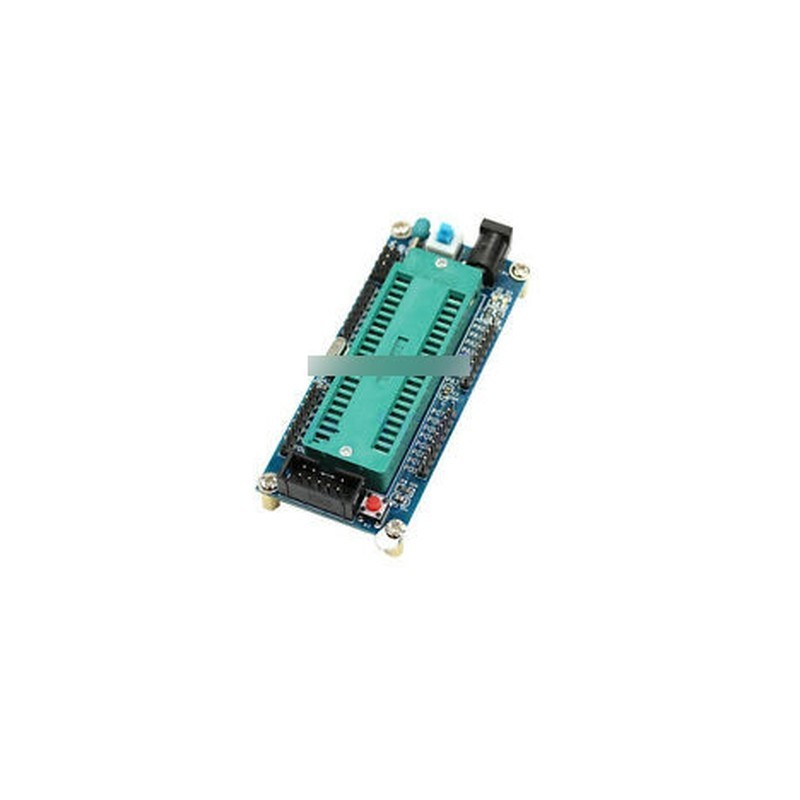

ATMEGA16 ATmega32 ISP Minimum System Board AVR Minimum System Development BoardItem special100% brand new and high quality
Quantity:1pc
Weight:46 g
Color: as picture show
Size:88mmx38mm/3.47"x1.49"(inch) (approx)
Product Features:
1. 32 I/O pin all the leads.
2. Classic ATmega16 minimum system, eliminating the hassle of soldering.
3. Crystal: The socket hole welding facilitate the buyer to replace the crystal, 8M crystal.
4. Support chips: ATmega16/ATmega32 and chip which pin-compatible.
5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
7. Expand outside 4 channel VCC, GND.
8. Reset: Power-on reset and reset button.
9. Power LED (D1) and the program run indicator (D2).
10. Standard ISP download interface.
Note: This minimum system development board without AVR chip, you need purchase for chip in additional!!!!
Package Include:
1 x ISP ATMEGA16 ATmega32 Minimum System Board.

Bővebb leírás

-1 / 2 / Gyorsan Fogyó termék

405 Ft‎

-58%

965 Ft‎

Hozzáadás a kívánságlistához

Egyéb infó

ATMEGA16 ATmega32 ISP Minimum System Board AVR Minimum System Development BoardItem special100% brand new and high quality
Quantity:1pc
Weight:46 g
Color: as picture show
Size:88mmx38mm/3.47"x1.49"(inch) (approx)
Product Features:
1. 32 I/O pin all the leads.
2. Classic ATmega16 minimum system, eliminating the hassle of soldering.
3. Crystal: The socket hole welding facilitate the buyer to replace the crystal, 8M crystal.
4. Support chips: ATmega16/ATmega32 and chip which pin-compatible.
5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
7. Expand outside 4 channel VCC, GND.
8. Reset: Power-on reset and reset button.
9. Power LED (D1) and the program run indicator (D2).
10. Standard ISP download interface.
Note: This minimum system development board without AVR chip, you need purchase for chip in additional!!!!
Package Include:
1 x ISP ATMEGA16 ATmega32 Minimum System Board.
